What do you need to install a tumble dryer?

Many modern dryers vary in drum capacity, drying power, and installation design. For example, a heat pump dryer only requires a single electrical outlet to get started. However, condenser dryers require a number of utilities for installation, which must be considered even before purchasing your new home appliance. Let's explore the installation details that should be considered during installation.

How will you remove condensation?

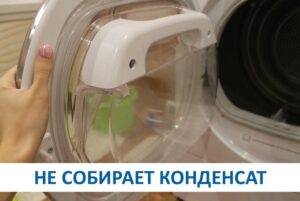

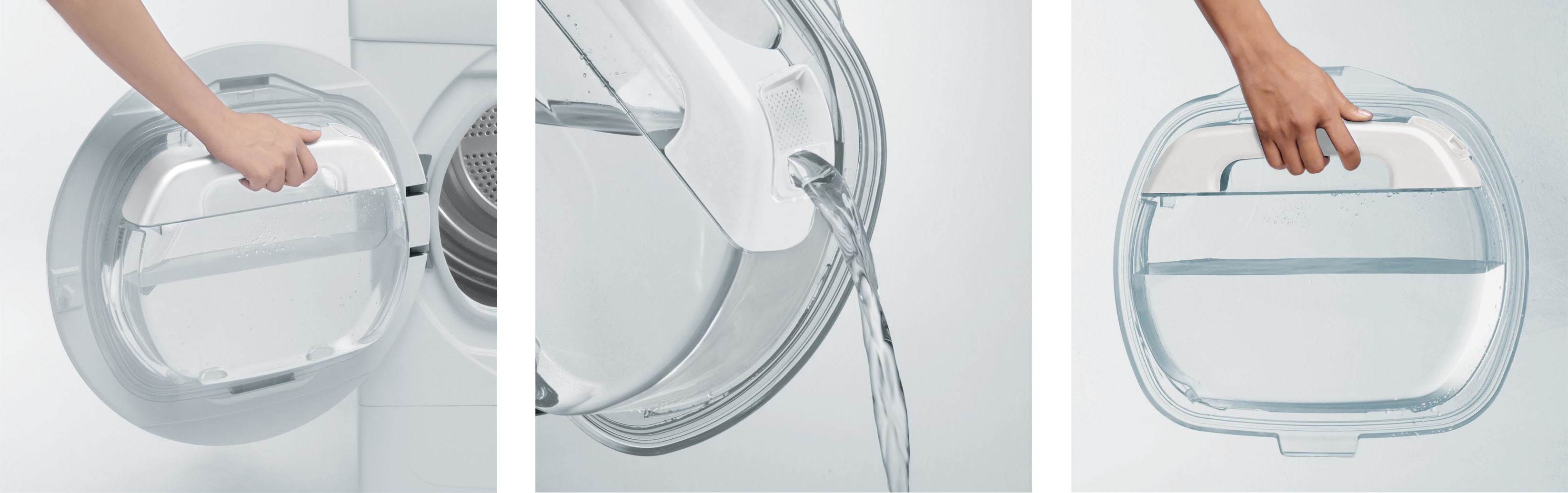

Most often, users purchase machines with a special reservoir for the generated condensate. The container can be emptied manually, removing it from time to time after the working cycle, and then installing it in its seat. This isn't difficult to do, but you can make it even easier by connecting the machine to the sewer system. This way, you won't have to do anything manually, as the machine will drain all the condensate automatically.

To do this, you need to connect a special tube to the unit, and then connect it to the sewer system. This tube is included with the dryer, so you don’t have to buy anything separately.

To connect the dryer to the sewer line, install a special tee on the pipe and insert a rubber cuff of the appropriate diameter into the tee's free outlet. Next, connect one end of the condensate drain tube to the dryer body, and insert the other end into the outlet of the connected tee through the cuff. The cuff is essential, as it will prevent the tube from slipping out.

Due to additional complications, many homeowners decide to simply ignore the sewer system and empty the tank themselves. Everyone will find the best solution for themselves.

How will you install the equipment?

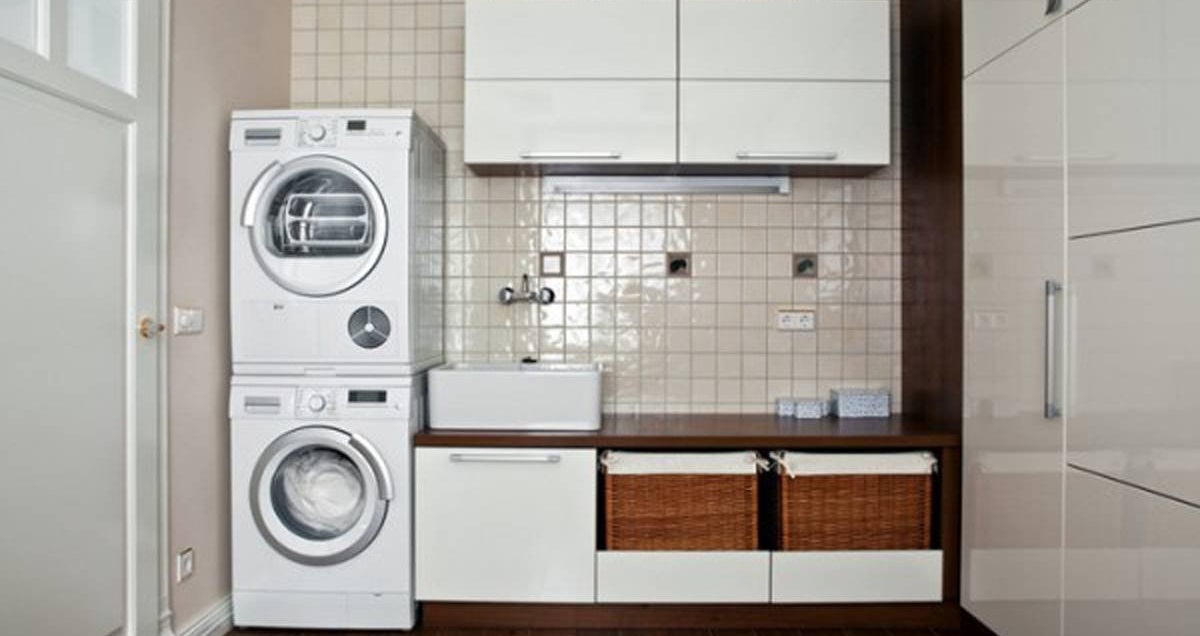

It's understandable that connecting a dryer requires some effort if the appliance is located on the floor. However, if the appliance is to be stacked on top of a washing machine, you'll need a mounting kit. The difficulty lies in the fact that the connection kit must be carefully selected to match the dryer and washing machine, depending on the appliance's dimensions.

For example, a Beko DCY7402GB5 dryer with a depth of 54 centimeters can be installed on a Beko WSPE7612A washing machine with a depth of 45 centimeters using the PSK docking kit. For more compact washing machines, the PSKS installation kit is recommended. This attachment is suitable for dryers with a depth of 46 centimeters, which can be placed on top of washing machines with a depth of 40 centimeters or more.

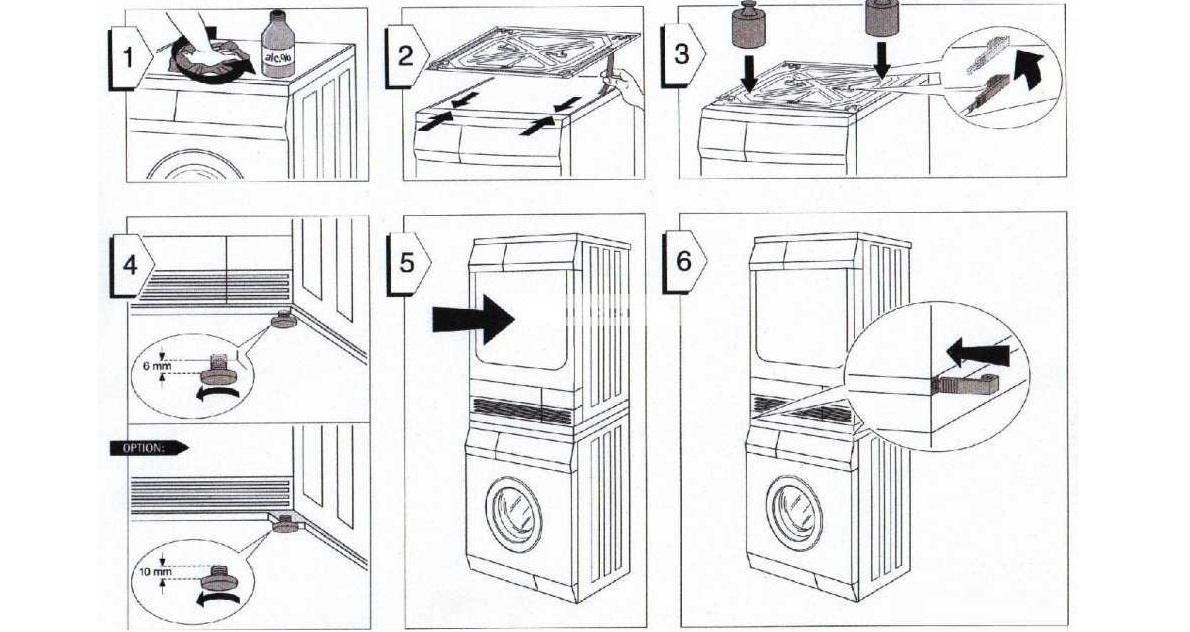

Installing the machines in a column is easy, even without assistance, if you know the installation instructions. Follow our instructions carefully to avoid the need for a service center specialist.

• Be sure to ensure the washing machine is level and not tilted. Do not place a dryer on top of it until the washing machine is level with a spirit level. Ensure the top surface of the washing machine is clean and dry.
• Place the drying rack on top of the washing machine. To do this, you'll need an installation kit, which can be purchased at any major appliance store. This attachment will secure the two appliances together, further protecting them from vibration, scratches, and other damage.
• Attach the special anti-slip pads to the appliance before attaching the connecting kit to the washing machine.
• Carefully attach the stand, securing it securely with bolts.
• Finally, place the dryer on top. Be sure to check that the feet of the dryer fit into the provided recesses.

As you can see, anyone can connect household appliances and install them in a column using the step-by-step instructions. Often, users have more trouble finding a docking kit, which is difficult to find due to both the high price and the wide range of sizes.

If there is not enough space for the dryer

In large private houses and apartments, you don't even have to think about connecting a dryer, as there's plenty of space for it. But in small houses and small studios, it is very difficult to place a dryer, so unusual solutions have to be used.

For example, a common practice is to install a drying machine in the bathroom on a special shelf above the sink. In this case, a special mounting bracket is purchased along with the shelf or a hanging cabinet for the device. The "home helper" is also often hidden in a special tall cabinet, where it won't spoil the room's design. Such furniture can be custom-made or hand-made.

In fact, there are plenty of dryer connection solutions, even for small homes. They're just more complicated to implement because more parameters need to be calculated before installation. Plan ahead to avoid unnecessary headaches after purchasing the machine.
