Location of the heating element in an LG washing machine

One of the most important components in a washing machine is the heating element. Knowing where the heating element is located, what it looks like, and how to access it allows you to regularly check the element, monitor its condition, and replace it if it malfunctions. We'll explain all the nuances using LG washing machines as an example.

Getting to the details

Unlike some third-party washing machines, the location of the heating element in the LG machine is very convenient for the repairman – the required coil is located at the back. There is no need to disassemble half the body, as in automatic machines Samsung, just remove the back panel and take a closer look. But there is no need to rush, as you cannot do without preparation for the process.

When disassembling the washing machine, it is necessary to observe safety precautions.

First, disconnect the machine from the power supply. For safety reasons, it's recommended to repeatedly check that the machine is de-energized; otherwise, do not proceed with the repair. Next, turn off the water supply, disconnect the inlet and drain hoses, and secure all wires and tubes in the designated slots on the machine to prevent long components from interfering with the removal of the heating element.

The next step is to ensure easy access to the machine. Move freestanding machines away from the wall, and move built-in models to the center of the room. Remember that the machine is heavy, so it's best to enlist the help of a couple of extra hands.

The final step is to lay out some old rags and remove the back panel. That's all. However, not everyone can immediately spot the heating element among the parts of an LG washing machine—the part is hidden deep inside the casing. The following instructions will help you find it.

What does this element look like?

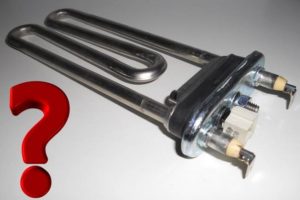

A common mistake beginners make is looking for the zigzag heating element tube they see in advertising. The heating element actually looks like this, but it's impossible to find it based on the description. The problem is that the coil is hidden deep beneath the tank, out of sight of prying eyes.

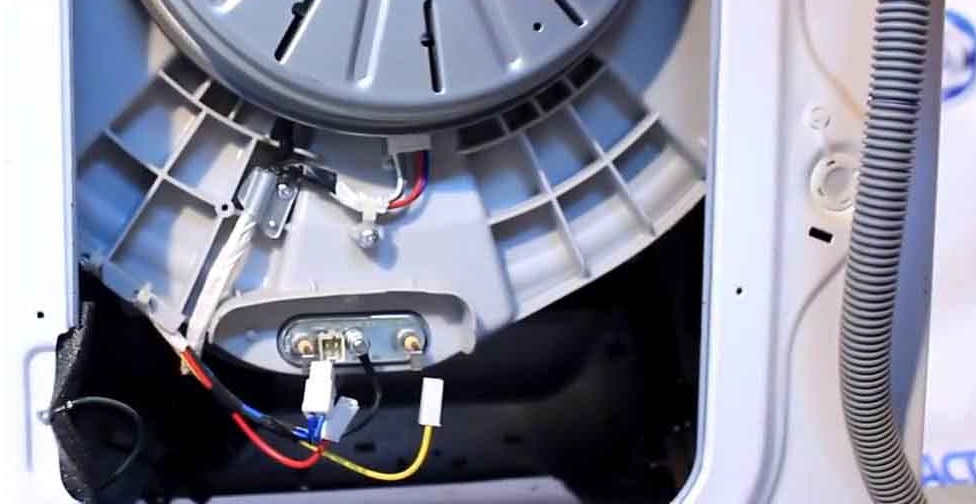

The LG washing machine is no exception. After removing the rear panel and looking at the lower part of the rear wall of the drum, you'll see only the outer contacts of the heating element. The contacts for the temperature sensor are also located here. Another unique feature of the heating element is the wiring, making it difficult to confuse it with other parts of the machine.

It is recommended to take a photo of the heating element to record the location of the wires and avoid errors when reconnecting.

But finding the heating element is only half the battle. It's equally important to remove the element correctly to avoid damaging its contacts, housing, and mounting surface. Briefly, the sequence of actions is as follows:

• we release the wiring, not forgetting about the markings;
• loosen the central nut;
• We take the part by the body and begin to carefully swing it, removing it from the fasteners;
• slowly remove the heating element, trying not to touch the contacts.

Extreme care must be taken when handling the heating element. The contacts and surface are typically very vulnerable to mechanical damage, and a new part is expensive. Don't forget to prepare for subsequent installation and thoroughly clean the mounting area from scale and dirt. If everything is done correctly, then after replacement the heating element will serve for a long time and properly.
