Ardo A1000X Washing Machine Manual

If you need a Russian-language user manual for your Ardo a1000x washing machine, you likely purchased this European-assembled model, intended for European consumers. The European Ardo model doesn't come with a Russian translation of the manual, and all the text on the control panel is also in a foreign language. So, you'll have trouble figuring out which knob to turn and which button to press. We'll try to remedy this by providing you with a Russian version of this manual.

Preparation for operation

Most users who just purchased a washing machine rush to connect it right away, often without the necessary knowledge or experience. The manufacturer recommends contacting a specialist who will install the necessary wiring and then perform the installation.installation and connection of a washing machine according to all the rules.

Please note that the manufacturer's warranty does not cover cases where a malfunction occurs due to improper connection of the machine.

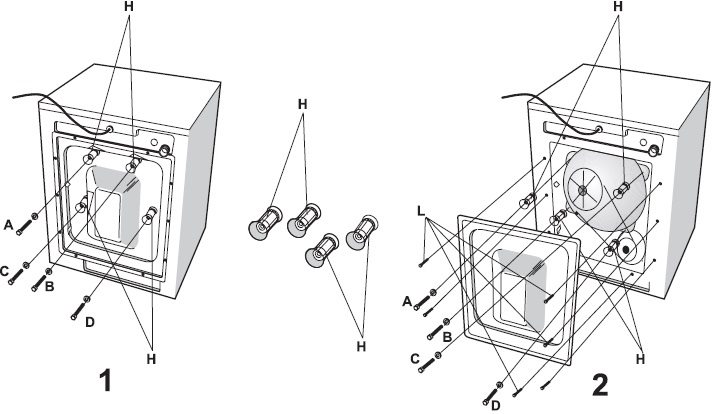

The most basic DIY step is removing the transport elements. All moving parts of the machine are secured with special spacers and bolts for maximum safety during transport. In some cases, the spacers are located on the outside of the body, and in other cases, they're located inside. If the plastic spacers are located inside, then:

• First, unscrew the screws;
• then remove the back cover of the machine;
• remove the spacers;
• we put the lid back in place and screw it on;
• We plug the holes left by the bolts.

Spacers and bolts should not be thrown away. If you transport your washing machine again, you'll need to install them in reverse order. Otherwise, there's a serious risk of damage to the internal components during self-transportation, which is also not covered by the manufacturer's warranty.

Control elements

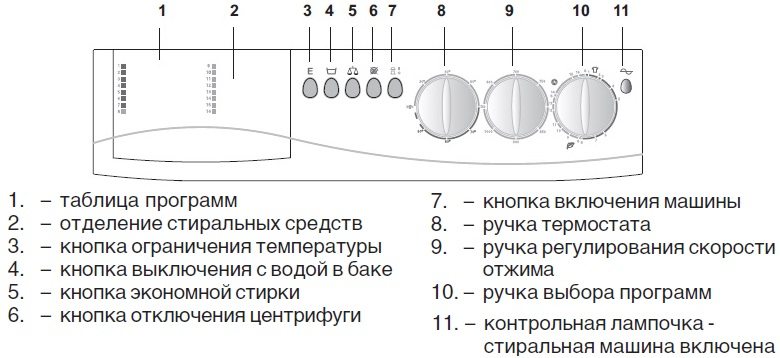

The Ardo a1000x's operating instructions provide a complete list of the controls located on the washing machine's control panel. While many of these controls are intuitive to use, it's worth explaining in more detail. We'll describe the Ardo control panel from left to right. That is, we'll start with the parts depicted on the detergent drawer lid and end with the indicator light.

1. A table of the washing modes supported by this washing machine model. All of them are listed on the dispenser cover.
2. The dispenser is the most important part of the control panel, although its design is very simple. It is shown as number 2 in the picture.
3. Using the button under the number 3 you can limit the water temperature during washing
4. Number 4 gives us the opportunity to turn off the program while there is still water in the tank.
5. Economy wash can be activated by pressing button 5.
6. Well, the sixth button is used to turn off the spin.
7. Under the number 7 there is a button for turning the “home assistant” on and off.
8. The number eight indicates the temperature control knob.
9. You can adjust the spin speed using the knob under number 9.
10. The tenth digit represents the program switch.
11. And the last one on our list, under number 11, is the light that tells us that the machine is on.

The Ardo a1000x washing machine manual provides information on the washing program characteristics, which we won't cover in this abbreviated version of the manual. If you need more details, please refer to the manufacturer's version of this document, which we've included at the end of this article.

Powder box

The detergent drawer in this brand's washing machine is very simple. It's rectangular and has three standard compartments. Counting from left to right, the first compartment is for soaking laundry. It should only be used if the program includes a prewash. The middle compartment is perhaps the most frequently used, as it's for regular washing. The third compartment, located on the right, is also frequently used, as it's where you should put fabric softener.

The manufacturers of the Ardo a1000x washing machine recommend using an anti-scale agent placed in the main compartment, which not only protects the machine's components but also improves washing quality.

Let's start using the machine

Before the first wash, the manufacturer recommends running an empty wash cycle. To do this, select any short cycle, add detergent, and turn off the spin function. All subsequent washes are started as follows:

1. Check if the water supply is open.
2. If necessary, turn the programmer knob to the Stop position.
3. With dry hands, plug the machine into the power supply.
4. Place items in the drum, sorting them by weight, fabric type, and color. Be sure to check the pockets, as well as the drum itself, for foreign objects.


   Do not overload the machine; load the laundry according to the program table in the full instructions, which indicates the washing mode and how many kilograms of items can be washed.

5. Close the hatch.
6. Place the detergent into the powder dispenser.
7. Turn the program selector to the right until you reach the desired program. Do not turn the knob to the left; this is prohibited.
8. Set the heating temperature and spin speed.
9. Select an additional function if needed.
10. Press the program power button.

After the program ends, the washing machine door unlocks after a minute, allowing you to remove your laundry. The machine is turned off not by pressing the button, but by unplugging it. The water supply valve is immediately closed.

Service

When developing the washing machine, the manufacturer minimized its maintenance. The user's primary responsibility is to wash and clean it regularly. Cleaning is required for:

• drum and tank;
• cuff;
• powder tray;
• drainage filter;
• filling filter.

The machine body can be wiped with a cloth dampened with mild soap and water; other chemicals and solvents are prohibited. After washing, wipe the drum surface and seal with a dry cloth to prevent mold and odor.

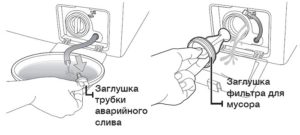

To clean the filter, unscrew it, but only when there's no water in the tank. When removing the filter, place a cloth underneath it to ensure any remaining water drains out. To clean the machine's tank from scale, you can use specialized products; it is enough to run an "empty wash" with such a product once every six months.

We hope this manual for the Ardo A1000X washing machine will help you protect your washing machine and yourself and your property. For more detailed information, please refer to the full user manual attached to this article.
