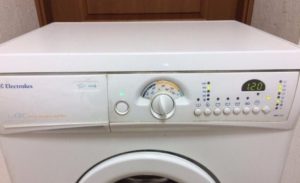

Electrolux EWS 1046 Washing Machine Manual
Here's a quick guide to using your washing machine. Following its recommendations will ensure reliable operation. Don't neglect it; read it carefully; it'll take much less time than you think.
Safe operation
The Electrolux EWS 1046 washing machine is intended for home use only, according to the instructions described below. Otherwise, there is a risk of rapid wear and tear.
- Washing machine installation must be performed by a trained technician. Unauthorized repair and connection may result in injury and property damage. Furthermore, such equipment is not covered by warranty.
- Repairs to equipment must be carried out only using original spare parts suitable for this machine.
- The machine must be positioned so that it does not bend the drain and inlet hoses. The surface on which the equipment is placed must be level and solid.
- The machine must be operated by an adult, and it is also best to keep children away from it during washing, as the glass door gets hot.
- Before loading items, make sure the drum is empty.
- Do not overload the machine with laundry, wash only machine washable items.
- It is not recommended to machine wash underwire bras, as they may damage the drum.
- Check your clothing pockets to prevent small items from getting into the tank.
- Wash small items (scarves, socks, tights, stockings) in special bags.
- Use only automatic washing powders, no dry cleaning.
- When washing is complete, turn off the machine and close the water tap.
Choose washing programs according not only to the type of fabric, but also to the degree of soiling; do not use pre-wash for items that only need to be freshened up.
Installation
Installing your washing machine begins with unpacking it and removing the shipping locks, which are three screws located on the back of the machine. Here's what you need to do:
- First, unscrew the bolt on the right;
- carefully place the machine on its “back”;
- remove the foam tray;
- peel off the sticky tape and take out two plastic bags;
- return the machine to the upright position;
- unscrew the remaining two screws;
- close the holes with plugs.
Now the washing machine needs to be positioned in its intended location on the level floor. It should be positioned so that ventilation is provided on all sides. Level the washing machine by tightening the lock nuts on its feet.
The instructions for connecting the Electrolux EWS 1046 washing machine are rather brief, so we recommend reading the detailed article about it. How to connect a washing machine to a faucet.
Connection to the sewer can be done in several ways, the most reliable of which is connection to a drain in a siphon. The outlet must be at least 60 cm above the floor. The hose is secured with a clamp.
When connecting the washing machine to the electricity, make sure that:
- the network can withstand a load of 2.2 kW, be sure to take into account the load of other devices;
- the socket is grounded;
- There is easy access to the socket so that you can easily turn off the machine after each wash.
The washing machine manufacturer is not responsible for any connection errors, so entrust this work to a professional.
Machine description

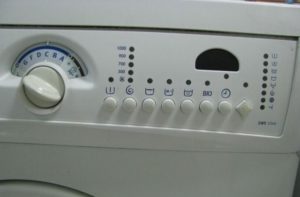

The Electrolux washing machine is a modern, intelligent appliance that, thanks to its automatic weighing system, economically washes even small loads of laundry. This machine's mechanical control panel features a single selector, a power button, seven additional buttons, and a small digital display.
The selector is used to select a program and is divided into five sectors for convenience:
- modes for cotton fabrics;
- modes for synthetics;
- modes for delicate fabrics;
- wool modes;
- special programs.
Important! Remember to return the selector to position O after washing.
The small buttons are used to select additional functions, in addition to the rightmost button, which launches the selected program. So, from left to right, the buttons mean:
- pre-wash;
- spin speed adjustment;
- Stop with water in the tank. When this function is selected, the water can be drained as follows: turn the selector to position O, select program D (drain), and press the Start button;
- shortening the wash cycle, does not work for the Wool program;
- additional rinse cycle;
- "BIO" wash, i.e. maintaining one temperature for 10 minutes;
- delayed start.

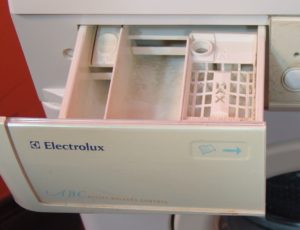

Another important part of the washing machine is the detergent dispenser, located in the upper left corner. It's simple: the main compartment is in the center, on the right is the fabric softener compartment, and on the left is the detergent compartment, for when you're running a very dirty cycle—that is, when you enable the prewash.
How to use
The Electrolux EWS 1046 washing machine is easy to use; all programs and functions are memorized the first time. When starting a new washing machine, start with an empty wash cycle, i.e., a wash without laundry at 60 degrees Celsius with approximately 100g of detergent. The general startup procedure is as follows:
- Place the laundry evenly into the drum, sorting it;
- close the door;
- pour the powder into the dispenser according to the dosage;
- turn on the machine and open the tap;
- turn the selector to the desired washing mode;
- if necessary, press the additional function button;
- press the start button.
When finished, the machine switches off automatically; all you have to do is pull the plug out of the socket and turn off the water. You also need to wipe the rubber seal, rinse the powder dispenser and leave the door open.
Malfunctions
If any malfunctions or problems occur while using the washing machine, an error code will appear on the display. The manufacturer provides a breakdown of these codes in the full instructions; we won't duplicate the table. However, in addition to this, we recommend reading an article about how to troubleshoot these problems yourself and whether it's even possible to do so. This article is called Electrolux Washing Machine Repair.
We hope you found this information helpful. Keep the instructions for any equipment handy, and you'll never run into any unanswered questions. Good luck!
