Instructions for the Indesit WISL 83 washing machine

The Indesit WISL 83 washing machine is a relatively old model among this brand's machines. Some people have been using it for over six years, while some Italian models are up to 12 years old. Sooner or later, a malfunction occurs, and the user begins reading the manual, but the printed version may not have a Russian translation. Don't worry, this manual has already been translated and posted online several times. We encourage you to read it; you'll likely find what you need.

How to connect?

Most Indesit washing machine manuals begin with instructions for unpacking and installing the appliance. This task isn't difficult, provided you have everything prepared, including:

• the installation site is leveled;
• cold water is supplied or a branch pipe and a tap are installed on the cold water mixer;
• a siphon with a drain for draining waste water from the washing machine was installed on the sink;


  Note: You can install a drain directly into the bathtub or toilet, but this method is unsafe and unsightly.

• An electrical outlet is connected, grounded in accordance with all safety regulations (a three-core cable with a cross-section of 1.5 sq. mm is used, there is a residual current circuit breaker).

After unpacking and inspecting the washing machine, remove the shipping bolts from the back of the appliance and seal the holes with plugs. Next, position the machine closer to the installation location and begin connecting the hoses. The inlet hose is screwed by hand using fitting washers, with one end to the water supply outlet and the other end to the machine. This is one of the simplest methods, but you can also connect it to a kitchen faucet orto the faucet in the bathroom.

Organizing the drainage shouldn't cause you any problems either. The trick is to prevent the drain hose from becoming stretched and causing self-draining. To do this, you need to properly secure the top drain point, which is described in detail not so much in the instructions, but in the article on our website How to connect a drain hose to a sewer.

With a properly installed outlet, connecting to the power supply is as simple as plugging it in. If there's no such outlet, forget about extension cords and adapters. Call an electrician to install the cable and ensure everything is installed according to regulations.

Machine description

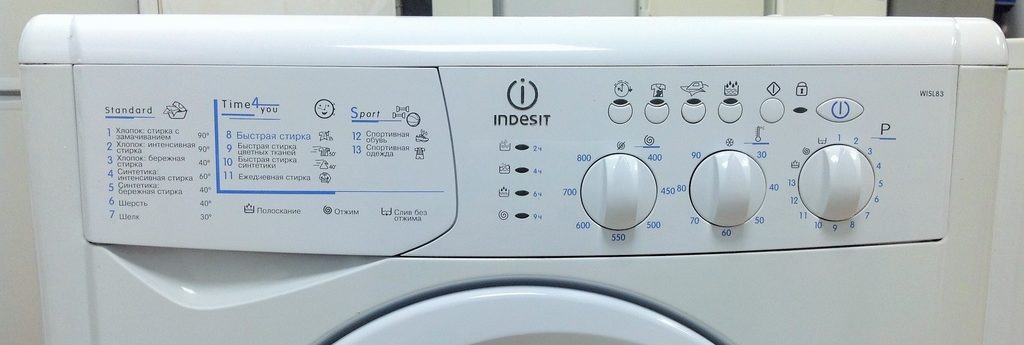

We won't describe the entire design of the washing machine; the user only needs to know how the detergent dispenser and control panel are arranged, so we'll focus on those. The Indesit WISL 83 washing machine's control panel is equipped with three selectors and six buttons. The selectors are used (from left to right) for:

• spin speed control;
• selection of washing temperature;
• Select a program designated by a number. There are 13 such programs in total, the names of which are listed on the front of the powder drawer.

The button needed to turn the machine on is the largest one, next to which is the program start/pause button. The other four buttons allow you to select additional functions (from left to right):

1. delayed start of washing;
2. stain removal, which involves bleaching or additional washing, this function cannot be used simultaneously with the ironing function;
3. light ironing – involves stopping the machine with water in the drum and then draining it, selecting the appropriate program;
4. additional rinse.

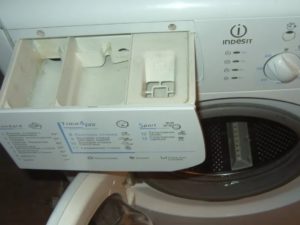

The detergent dispenser in this machine is located on the left side. For the main wash, pour the detergent into the middle compartment, and for the pre-wash, pour it into the left compartment. Fabric softener is added to the fabric softener compartment on the right. For bleaching, insert the removable container into the leftmost compartment and pour the bleach into it.

Important! Bleach should not contain chlorine. It will damage the fabric and will also damage the internal components of the machine.

How to use?

The Indesit WISL 83 washing machine manual offers a brief description of how to start a program, and there's really no need to explain it, it's all intuitive:

1. Turn on the machine by pressing the button.
2. Load the laundry, first separating it by color, type of fabric, and volume. Don't forget to sew on any loose items, remove small items from pockets, and close zippers.
3. Close the drum door.
4. Add powder and conditioner according to the dosage.
5. Turn the programmer to the desired mode.
6. Adjust spin and temperature.
7. Select an additional function if needed.
8. Press start.
9. When finished, turn off by pressing the button.

The first wash cycle in a new machine should be carried out without laundry in order to rinse the machine.

Safety and Maintenance

The Indesit WISL 83 washing machine's operating safety is also addressed in the instructions. If any of the instructions are violated, the manufacturer is not responsible for your health or the safety of the appliance or property. So, here's what to keep in mind:

1. The machine is a household appliance for home use, not professional use.
2. Disconnect the appliance from the power supply after washing.
3. The machine must be operated and supervised by an adult.
4. When working with equipment, make sure your hands are dry; do not touch the body with wet hands.
5. You cannot take out or distribute the powder during washing.
6. Do not pull the door when trying to open it after washing, the lock will unlock after three minutes.
7. Please use two people to move the machine, it is very heavy.
8. Check the drum before loading the laundry; there may be foreign objects in it.
9. Don't overload the machine, as this will reduce the lifespan of the parts, but don't wash too little either.
10. Don't forget to take care of your washing machine. Wipe the outside of the machine to remove dust and moisture, and wipe the cuff and powder drawer after washing. Perform a general cleaning using special products to remove scale, odors and bacteria. Wash the drain filter and tray.

Malfunctions

If a malfunction occurs, make sure you can't fix it yourself. A clogged filter or strainer in front of the inlet hose, as well as overloading the machine, are common causes. All of these problems can be resolved on your own. If internal components are damaged, it's best to contact a service center, especially if the machine is under warranty.

If you don't have the money to pay for repairs, then read the full instructions, which describe possible malfunctions, and our article Indesit washing machine repair, which explains how to solve these errors.

We hope you found the information above helpful. Now you know where to find the manual for your washing machine.

5 reader comments

1. October 20, 2017 at 4:53 AM

   Lyudmila:

   What program should I set so that the machine washes in no more than 45 minutes?

   Answer
   • November 7, 2017 at 10:38 AM

     Alex:

     8

     Answer
2. January 21, 2019 at 11:42 PM

   Lyudmila:

   Could you tell me what it says? What's the wash cycle for items 1 to 13? Over time, the numbers have faded, and the passport has disappeared somewhere.

   Answer
3. March 14, 2019 at 11:24 PM

   Vic:

   How do I wash a white down jacket?

   Answer
4. July 27, 2020 at 8:42 PM

   Alexey:

   Am I correct in understanding that you can set any desired mode (1-13) and then manually adjust the temperature and spin? So, you can select program 1, which heats the water to 90 degrees, and then reduce the temperature to 30-40 degrees by manually selecting the temperature? So, the machine will wash "Intensive/Cotton," but at 30-40 degrees, and spin at the selected speed?

   Answer
