Instructions for the Indesit WIUN 81 washing machine

The Indesit WIUN 81 washing machine's operating instructions contain a wealth of tips and tricks for the novice user of this automatic "home assistant." However, there's so much information that it's easy to get lost, especially if you're reading everything. We decided to distill the essentials and present them in this article. Here's what we came up with.

We will adjust, install and connect

Before using your washing machine, you should always unpack and inspect it properly. What does this mean? Open the box carefully, in case you need to return the appliance to the store. Next, carefully inspect the front panel for scratches, chips, or more serious damage, such as missing buttons or torn handles. Make sure the washing machine comes with the following: an inlet and drain hose, a warranty card, feet, and an operating manual.

If everything is in order, you can remove the shipping bolts, plug the holes with plugs, and move the machine to its intended installation location. It's a good idea to get help when moving the washing machine, as it's very heavy.

The installation site for the washing machine must be prepared in advance: the floor must be leveled and reinforced, utility lines must be installed, and any objects that might interfere with the installation must be moved aside.

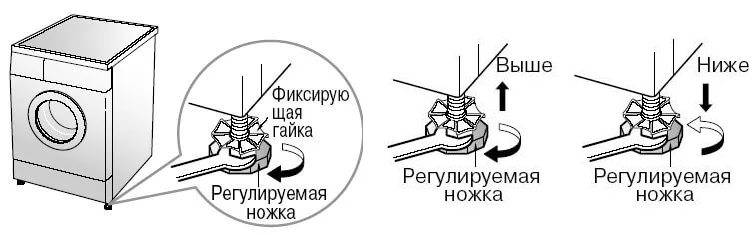

After moving the machine to its permanent location, use a spirit level to level its body. It's best to position it perfectly level, but if not, allow no more than a 2-degree difference. You can level the Indesit WIUN 81 by alternately unscrewing its feet. Then, proceed as follows.

1. Connect the inlet hose to the cold or hot water supply, remembering to install the rubber sealing rings. The connections must be as airtight as possible.
2. Connect the other end of the drain hose to the drain or sink trap. The first end of the hose is already connected to the washing machine body. You can read about the best way to connect this type of hose in the article. How to connect a washing machine drain hose to the sewer.
3. After making sure the hoses are connected properly, plug the power cord into a pre-prepared moisture-resistant outlet and test your new "home assistant."

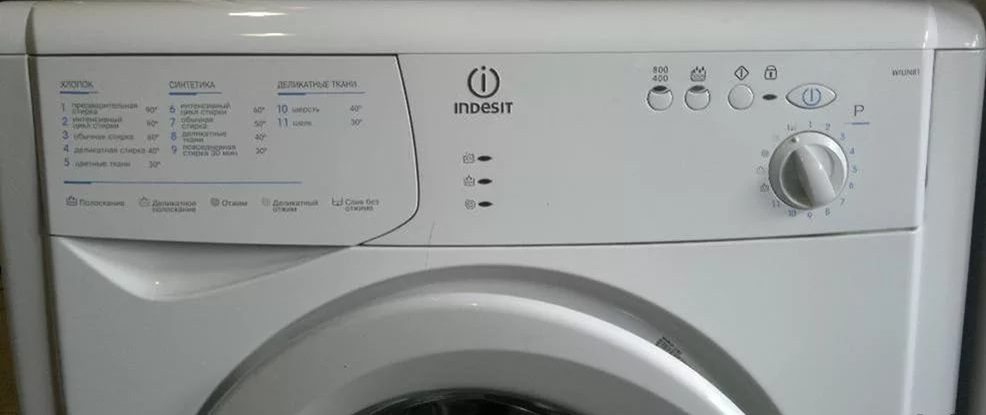

Control elements

To start using your Indesit WIUN 81 washing machine effectively, you need to learn its basic controls. What are these controls?

• Dispenser;
• Control panel buttons;
• Control panel indicators;
• Control panel program selection knob.

In fact, the controls of this brand's washing machine are very simple, meaning you can figure them out intuitively, without the need for a manual. However, everyone's abilities vary, so we'll briefly describe each of these controls and explain their purpose.

First on the list is the dispenser, or powder drawer as it's also called. We've dedicated an entire section to it, so we'll skip it and move on to the buttons. The buttons on the control panel are designed for various tasks, and there are four of them. The largest button is located just above the program selector. It turns the "home assistant" on and off. The next button, counting from right to left, starts the program or stops it, if necessary. The third and fourth buttons are used to select functions.

In addition to the buttons, the control panel has six indicator lights. Two lights are located above the function selection buttons and alert the user which function is disabled and which is enabled. To the left of the button is an indicator light that indicates the machine is on (blinking) and that the door is locked (solid). Immediately below the "Indesit icon" are three indicators indicating the current wash cycle:

• top indicator – wash;
• middle indicator – rinse;
• The lower indicator is spin.

The detergent drawer displays a list of programs and functions supported by the washing machine. This can be useful if the machine is localized in Russian.

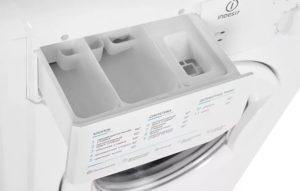

Powder tray

To ensure your Indesit washing machine performs at its best, you need to learn how to use the detergent drawer correctly. The detergent drawer in this automatic washing machine is extremely simple. When you open it, you'll see just three compartments.

1. Compartment #1, counting from left to right, is for prewash. If your washing program includes a soak, place your detergent in this compartment.
2. Compartment No. 2 is the most popular, since during the main wash you need to put the detergent in it.
3. And finally, compartment No. 3, which has a slightly different design, is intended for the air conditioner.

Remember! Pour fabric softener or liquid detergent into the drawer immediately before washing. Otherwise, it will drip into the drum and could ruin your laundry.

We service the machine

The beauty of an automatic washing machine is that it doesn't require constant attention. However, it's not a good idea to completely abandon it to its own devices, otherwise, over time, it might play tricks. After each wash, it is very important to turn off the water and disconnect the appliance from the power supply.After each wash, it's essential to thoroughly clean and air out the machine. Never block the door or detergent drawer, as this will lead to mold or worse.

Remove the detergent drawer by lifting and pulling it toward you to flush out any remaining detergent. This isn't necessary every time, but it's sometimes necessary. Don't forget to unscrew and clean the dust filter. Learn how to do this in the article. How to open and clean the filter in an Indesit washing machineIf your Indesit WIUN 81 washing machine breaks down, the instructions are unlikely to help you solve the problem. You'll need to contact a professional.

This is the abridged version of the Indesit WIUN 81 washing machine manual. If you still have questions after reading it, please refer to the original manufacturer's version. Good luck!
