What bearings are in a Hotpoint-Ariston washing machine?

It's best to find out what bearings your Hotpoint-Ariston washing machine uses before starting the repair. This will allow you to purchase the parts in advance and avoid interruptions during the repair. Bearing sizes vary by model. Let's find out which parts are compatible with different Ariston washing machines.

Selecting the right bearings

If you carefully approach the selection of components, it will be difficult to make a mistake. Each model Hotpoint—Ariston specific bearings and seals correspond. They differ in the diameter of the inner and outer holes and thickness. Therefore, check the name of your "home assistant" and its serial number in the instructions or on the nameplate.

Many Ariston washing machines are equipped with 203 and 204 bearings. In most cases, these bearings correspond to a 25x47/64x7/10 seal. These models are:

• Ariston LB 446 ST IT;
• Ariston LB 446 ST COP IT;
• Ariston LB 476 ST FR;
• Ariston AV 522 X IT;
• Ariston AV 532 T IT;
• Ariston AV 632 TX IT;
• Ariston AI 637 T IT;
• Ariston AI 648 TX IT;
• Ariston AV 521 X IT;
• Ariston AV 520 X IT;
• Ariston AV 531 TX IT;
• Ariston AV 530 TX IT;
• Ariston AI 631 TX IT;
• Ariston AI 630 TX IT;
• Ariston AV 637 T IT;
• Ariston AV 637 TX IT;
• Ariston AV 63 TX IT;
• Ariston AI 649 TX IT;
• Ariston LB 618 XT CL;
• Ariston WM 4 DE NEU;
• Ariston WM 413 DE;
• Ariston AI 533 BS FR;
• Ariston AI 533 FR;
• Ariston AI 638 T FR;
• Ariston AV 528 FR;
• Ariston AV 537 FR;
• Ariston AV 537 TXA.

Some Ariston models with 203-204 bearings have a 25x47/64x7/10.5 oil seal. These are washing machines:

• Ariston AD 8 EU;
• Ariston AD 1000;
• Ariston AL 109 X EU;
• Ariston ALD 80 EX;
• ARISTON AVD109ex;
• Ariston AVD 109;
• Ariston AVL 100 R;
• Ariston Margarita 2000 AB 88 X EU;
• AB 426 TX EX;
• AB 422 TE;
• AB 426 TX;
• AB 635 TXE;
• AB 646 TX, etc.

The next group of machines features 204-205 bearings and 35x52/65x7/10 rubber seals. These are the models:

• Ariston AB 846 CTX;
• Ariston AD 10 EU;
• Ariston AI 858 CTX/1 E;
• Ariston AL 858 CTX/1;
• Ariston AL 946 CTX;
• AL 1056 CT XR;
• AB 1056 TX EX;
• AML 129 EU.

Some washing machines with 204-205 bearings are equipped with a 30x52/65x7/10 seal. These models are:

• Ariston AVL 129 R;
• Ariston AVSD 107 EX;
• Ariston AVSL 109;
• Ariston AVSD 127 EX;
• Ariston AVSF 109 EU;
• Ariston AVSL 80 R.

There are machines equipped with a single BA2B 30x60x37 mono-bearing. These models are:

• Ariston ALS 109 X EU, oil seal 35×52/65×7/10;
• Ariston AL 1456 TX R, seal 35x47x8;
• Ariston AL/ALS 88 XEU, gasket 35×52/65×7/10;
• Ariston ALS 948 TX, elastic 35×52/65×7/10;
• Ariston ALS 109 XEU, seal 35×52/65×7/10;
• Ariston ALS 129 X, oil seal 35×52/65×7/10;
• Ariston AVSL 80 R, gasket 35×52/65×10/12;
• Ariston Margarita 2000 ALS 88 X EUS, elastic band 35x52/65x7/10.

Hotpoint-Ariston models also have rare configurations. These washing machines deserve a separate group:

• Ariston 100 R and Ariston AL 1256 CTX with bearings 205-206, equipped with a 35×62/75×7/10 oil seal;
• Ariston AQSF 05 with rings 204-205 and seal 30x52x8.5/10.5;
• Ariston AB95EU and Ariston AL 109, equipped with 203-204 bearings and 25x47x10 gasket;
• Ariston ALS 1048 CTX with rings 204-205 and oil seal 35×63.3×9/12.5;
• Ariston ARSL 109, equipped with 202-203 bearings and 22x40x10 rubber;
• Ariston AS 1047 CTX/B with rings 204-205 and seal 30×53.5×10/14;
• Ariston AVL 62 EX and Ariston AVL 100, equipped with 203-204 bearings and a seal
  25x47x7;
• Ariston Aqualtis AQSD 129 EU AQ2005TRF with rings 204-205 and oil seal 30x52x10;
• Hotpoint-Ariston AQ7D 29 with bearings 206-207 and rubber 40.2x72x10x12.

In some Hotpoint-Ariston models, if the bearing assembly breaks down, you will have to replace the entire tank; these are AQSL 85 CSI, AVL 80 CIS, AVL 100 CSI, AVF 109 EU, AQSF 129 CSI machines.

If you're hesitant to buy bearings in advance, there's another approach. Disassemble the washing machine and remove the bearing rings. Show the store clerk the old parts – they'll measure the diameter and thickness and select similar parts.

The manager will also help you select the right seal. Also, be sure to buy special grease for washing machine bearings—you'll need to apply it to the rings, shaft, and sealing rubber. It's best to buy genuine Hotpoint-Ariston washing machine parts rather than cheap replacements.

Why are there bearings in a washing machine?

An automatic washing machine with broken bearings will not function properly. The bearing assembly “connects” the drum and the pulley, allowing the electric motor to spin the container to the required speed. Damaged rings cannot ensure the normal operation of the mechanism.

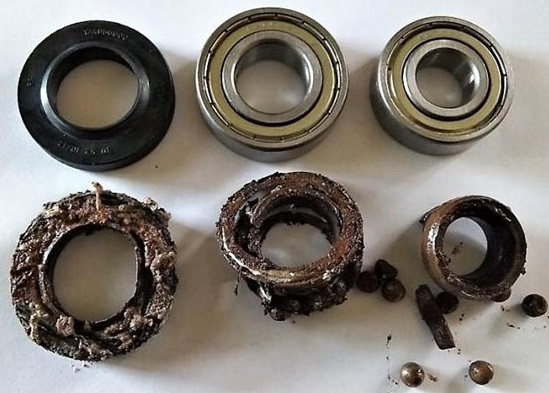

There are various signs that indicate bearing failure:

• loud noise, grinding and knocking while the machine is running;
• increased vibration of the washing machine body;
• drum play;
• damage to the inner edge of the hatch cuff (an imbalance occurs, the laundry rubs against the elastic, deforming the seal);
• washing machine it doesn't wring out laundry well;
• There are rusty stains on the back wall of the tank.

Most Ariston models have bearings in a crosspiece that attaches to the drum. The unit contains two rings—an inner and an outer ring. The former is stronger due to its larger diameter and increased thickness. The latter is located at the end of the shaft and serves as a supporting element, making it smaller.

Some Hotpoint-Ariston washing machines have a single bearing. This element has two rows of balls, eliminating the need for a second ring. Models with a single double-row bearing are rare, but they do exist, and this is something to consider.

The gland is very important

The seal must be replaced along with the rings. The seal protects the bearings, preventing premature wear. The gasket prevents water from entering the unit. The dimensions of this part will also vary depending on the washing machine model.

When replacing the washing machine drum bearings, be sure to purchase and install a new seal.

Three types of seals are used in the production of automatic machines today:

• single-edged – they only prevent water from entering the unit;
• Single-lip, complete with a dust cover. This provides additional protection against debris and dirt from entering the unit;
• V-RINGs are seals with a V-shaped profile. These seals are only installed on top-loading machines. Their unique shape provides complete protection against water, dust, and debris.

All modern seals are reinforced with a metal mesh. It's important not to damage this reinforcing base during installation. The seal's original shape must be preserved.

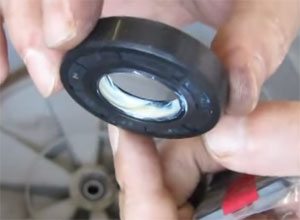

The seal is installed on top of the bearing, in a specially designated seat. The gasket seals the hole, preventing dust and moisture from entering the unit. It's best to buy genuine seals rather than Chinese-made alternatives. Skimping on components in this case is pointless.
