What kind of bearings are in an LG washing machine?
If you're planning to replace the seal and bearings in your washing machine yourself, carefully select the components. It's important to purchase parts specifically for your LG washing machine. The best way is to remove the components from the housing and take them to the store. This way, the salesperson will be able to select identical parts. If this approach isn't possible, you can figure out which bearings are in your washing machine yourself and provide the salesperson with their part number. However, this is extremely risky, as different models have had different components installed over the years.
Characteristics of seals on LG washing machines
If you are faced with the need to replace the seal and bearings for the first time, you should understand what these elements are. The oil seal is a rubber seal located on the drum shaft, it is also called a drum gasket. The drum seal's function remains the same: to prevent water from entering the bearings. The seal's configuration and size vary among LG machines. Washing machines are equipped with two types of seals:
single-edged (prevents liquid leakage)
single-edge with a dust cover (in addition to preventing leaks, it protects the joint from dust ingress).
The seal is an essential component in the formation of the bearing assembly. When pressed into the hub, it creates a contact pair with the rotating shaft of the drum.
Each seal is equipped with a metal insert on the inside, which is very important not to damage during installation.
Top-loading washing machines often use V-shaped seals. They are used in conjunction with a deflector disc, securely attached to the drum. When installed, the seal fits snugly onto the disc thanks to its unique V-shaped edges.
It's important to choose the right bearings for your LG washing machine and the right seal. By carefully selecting components, you'll avoid wasting time and money on trips to the store to replace unsuitable parts.
Models of cars and their components
We'll help you find the parts you need and provide a detailed list of LG washing machine models, along with the corresponding seal sizes and bearing types. This list covers both direct-drive and belt-drive washing machines.

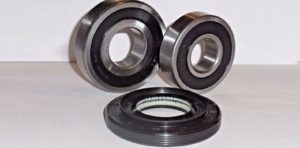

Oil seal size 37x66x9.5/12 and bearing 205-206 is found on the following models: F 1068 LD, LG WD 1020 W (belt EL 1173J5), LG WD 1030 R, LG WD 1050 F, LG WD 1074 FB, LG WD 1080 FD (belt EL 1173J5), LG WD 1090 FD (belt EL 1173J5), LG WD 1256 FB (belt EL 1173J5), LG WD 1274 FB, LG WD 8022 CG, LG WD 8023 CB, LG WD 8050 FB, LG WD 8074 FB, LG WD 10130, LG WD 10150 S, LG WD 10160 N, LG WD 10170 TD, LG WD 10175 SD, LG WD 10200 ND, LG WD 12170 ND, LG F1221 NDR, LG WD 12344 ND, LG WD 80130 NP, LG WD 80150 S, LG WD 80158 SP, LG WD 80160 NUP, LG WD 80160 S, LG WD 80180, LG WD 80186 N, LG WD 80187 N (belt EL 1173J5), LG WD 80250 NP, LG WD 80260, LG WD 80490 N (belt EL 1173J5), F 8020 ND1, F 1495 BDS, F 1292 MD 1, F 1096 ND, F 1296 ND, F 8092 MD, F 8091 LD, F 1239 SD, F 1289 ND 5, F 1092 MD, F 1091 LD, F 1068 SD, F 1081 ND 5, F 1289 ND, F 1292 MD, F 1089 ND, F 1039 SD, LG F 1222 NDR.
The following washing machines are equipped with a 25x50x10 oil seal and 203-204 bearings: LG WD 1012 C (belt EL 1173J5), LG WD 1040 W (belt EL 1277J5), LG WD 6002 C, LG WD 6007 C, LG WD 6212.
Seal 37x76x9.5/12 with bearing type 305-306 is available in the following machines: LG WD 12210 BD, LG WD 12275 BD, F 14A8 TD5, F 14A8 TD, F 14A8 TDS, F 14A8 TDS 8, F 1281 TD 5, F 1081 TD, F 1281 TD, F 1296 TD, F 1096 TD.
The 75x66x9.5 oil seal together with the 205-206 bearing is found in the following washing machines: LG WD 1050 F, LG WD 1074 FB.
LG WD 8014 (EL 1173J5 belt) is equipped with a 25x50x10 seal and 204-205 type bearings.
5/12 oil seal and 6203-6205ZZ-6206ZZ bearings are installed on a LG F 1035ND direct drive machine.
The list of LG automatic washing machines is large, so you need to be careful when searching for the right model. However, a more effective option is to go to the store with the components already removed from the case. This will make it easier for the manager to select the right parts for your washing machine, and the likelihood of a mistake when purchasing will be reduced to zero.
If you're planning to replace the seal and bearings in your washing machine yourself, carefully select the components. It's important to purchase parts specifically for your LG washing machine. The best way is to remove the components from the housing and take them to the store. This way, the salesperson will be able to select identical parts. If this approach isn't possible, you can figure out which bearings are in your washing machine yourself and provide the salesperson with their part number. However, this is extremely risky, as different models have had different components installed over the years.
The article mixes up the sizes of oil seals for 206 and 306 bearings.
Good day. What bearing is needed for the LG WD-1022C washing machine? It's not listed in the article.
Hello! Could you please tell me what kind of bearing I need for my washing machine? It's model FH2A8WD2. I can't find it anywhere.
I want to know this too.
I removed the pulley 203-204. It's marked 6203. Turkish bearing.
Hello, LG WF8500NHW?
The car is an F12A8HDS5. What bearings and seals are used?
And on LG Direct Drive 9 kg MODEL: FH4U@VCN2?
LG 5 kg wd-80154n. What kind of bearing and seal does this machine have?
LG M1223ND3, what bearings and seal are used? I really need to know. Thanks in advance.
LG F2J3HSOW. I can't find the size.
LG F1029NDR. What bearings and seal? Thank you.
LG F2H5HS6W. What bearings and seal?
Please tell me what bearings are in the LG washing machine, model F1296WD4?
What bearings are used for the LG f12m7nds1?
LG F8068LD. What bearings and seals?
