How to attach the front panel to a Bosch dishwasher

Built-in appliances are a great solution for those who value a unified style throughout their home, as they can be disguised as kitchen cabinets. Installing a dishwasher's front panel is simple, so it's often done by hand. However, it requires understanding the installation nuances. We'll walk you through the entire installation process in detail, so you can make your dishwasher a natural part of your interior without hiring a professional.

We are installing a furniture facade

Attaching a decorative panel to a Bosch dishwasher is easy if you have the necessary tools and detailed instructions at home. We recommend following each step of our guide carefully to ensure a seamless installation of the decorative panel on your dishwasher.

• Prepare the dishwasher front you purchased earlier, or make one yourself, and don't forget to bring screwdrivers, a drill, a tape measure, an awl, a pencil, fasteners, and a door handle.

In Bosch dishwashers, the front panel is secured with TORX T20 screws.

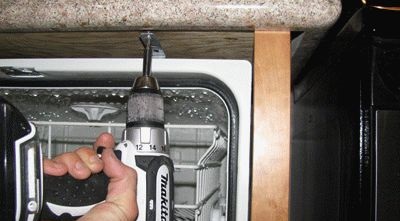

• Install the household appliance in the niche you prepared for it if you have just purchased the device.
• Attach the machine body to the side panels of the cabinet.
• It is advisable to connect household appliances to the water supply and drainage at this stage so that the equipment is ready for use and no additional work is required after the installation of the facade.
• Next, you need to determine the distance between the kitchen cabinets so that the installed front panel is level with the doors of the other kitchen cabinets – this can be done with a tape measure and pencil.
• You also need to determine the distance between the countertop and the front of the dishwasher in the same way.
• Now you need to take the full-size template drawing that was included with the new Bosch dishwasher and place it on the future front of the dishwasher.
• Use an awl to mark the locations of the fasteners.
• Drill holes for the screws using a 2.5 mm drill bit.
• Install TORX T bits into the holes

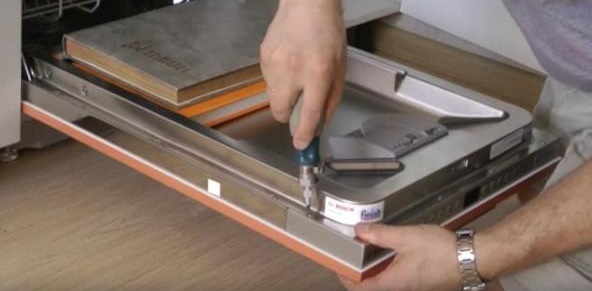

• Fix the decorative panel without screwing the screws all the way in to first check the accuracy of the calculations and installation.
• If the front panel fits properly, doesn't touch anything, and the door with the decorative panel opens smoothly, then you need to make holes for the handle. To do this, you'll need to remove the front panel, make calculations with a tape measure, screwdriver, and awl, marking the location for the handle, and then install the handle itself.
• Once the handle is installed, you need to return the panel to the prepared place and tighten all the screws completely.

The process of installing a facade takes about an hour of free time, so there is no point in calling a professional if you can do everything yourself and save the family budget.

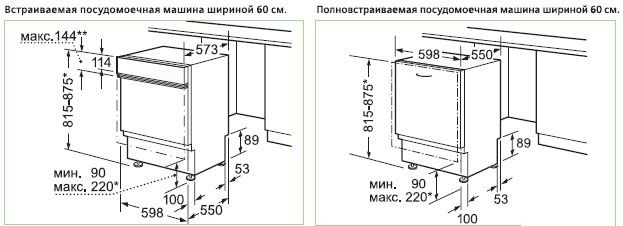

Size of the front part

Despite the relative ease of installing a front panel on a built-in dishwasher, the installation process must be approached with the utmost responsibility. The first thing you need to do before purchasing is to measure the dimensions of the dishwasher, as well as the niche where it will be located. The dimensions of the decorative panel will depend on the dimensions of the dishwasher.

If you're planning on purchasing a standard, fully integrated "home assistant," you'll need to be prepared for a width of 45 or 60 centimeters and a height of 82 centimeters. If you're looking for a smaller machine, you can find models at home appliance stores that are only 50 or 60 centimeters tall. That's why it's important to measure the appliance's frame accurately to the millimeter before purchasing.

The best way to avoid getting the dimensions wrong is to first purchase all the built-in appliances for your kitchen and then order the furniture to fit the dimensions of the purchased appliances. This way, you'll avoid any sizing errors, as appliance dimensions often differ slightly from those listed online. For example, website dimensions are often rounded off, even though the actual width of the appliance is 59.4 centimeters, not 60.

Always carefully calculate the height and width of the facade, as if you make a mistake, it will be impossible to cut off protruding elements without spoiling the appearance of the decorative panel, which is pre-laminated and covered with film.

When working, keep in mind that the height of the facade must be a couple of millimeters higher than the height of the dishwasher door. To align the front with the doors of other furniture, you need to select the optimal leg height - this will allow you to adjust all the decorative panels of the kitchen set so that they are at the same level.

The size of the door panel for Bosch semi-integrated dishwashers also depends on the width of the appliance's control panel. In these models, the buttons and indicators are located on the door, so they can't be hidden behind a decorative panel. This is actually a plus, as installing the door panel is slightly easier than with fully integrated dishwashers.
