Review of the MPU 700 dishwasher

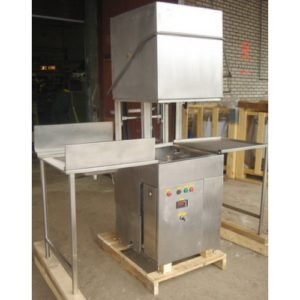

dishwasher MPU 700 A business that regularly handles dirty dishes should have a reliable, high-performance dishwasher, like the MPU 700. What is the purpose of the MPU 700 dishwasher? What are its specifications, what are its components, how does it operate, and how is it installed? We'll answer all these questions in our short but informative review.

Purpose of the equipment

Absolutely everything professional and industrial dishwashers They are designed for washing large quantities of dishes in catering establishments and other organizations that use reusable tableware. The MPU 700 is a dome-type dishwasher used for washing dishes placed in racks: plates, bowls, glasses, trays, and cutlery.

The dimensions of the items should not exceed 530 x 325 mm. This size is recommended for establishments serving no more than 50 seats (bars, restaurants, cafeterias, etc.). The manufacturer of the MPU 700 is the Republican Unitary Enterprise "Grodno Plant of Commercial Machinery," located in Grodno, Belarus.

Machine specifications and equipment

The machine can wash up to 720 items per hour, with a standard wash cycle taking no more than 80 seconds. Its other technical specifications are also quite impressive.

One cassette can hold: 18 plates or 36 glasses or 60 pieces of cutlery or 6 trays.
The machine heats the cleaning solution up to 40⁰C, and rinses the dishes with water heated to 85⁰WITH.
With extension tables the machine has the following dimensions: length – 1900 mm, width – 900 mm, height – 1500 mm.
The total weight of the dishwasher with all equipment is about 125 kg.
The estimated service life of the MPU 700 is 8 years.

MPU 700 Machine accessories may vary, so please confirm with the seller what's included before purchasing. However, the following items are typically included:

washing section (1 pc.);
table for loading cassettes (1 pc.);
table for unloading cassettes (1 pc.);
cassettes (5 pcs.);
mesh (1 pc.);
shelf (2 pcs.);
shower device (1 pc.);
supports (6 pcs.);
corrugated siphon (1 pc.);
movable pipe (1 pc.);
box with a reservoir for detergent (1 pc.);
nuts and washers (24 pcs.);
fuse link 6.3A (3 pcs.);
nozzles (4 pcs.);
membrane, ring, cuff and gasket (1 piece each).

The fusible link, nozzles, rings, gaskets and cuff are designed for the pump, dispenser and tank of the water heater.

How does the machine work?

The appliance's data sheet indicates that the machine is programmed for three cycles: wash, pause, and rinse. The wash cycle lasts 65 seconds, the pause is 5 seconds, and the rinse cycle lasts 10 seconds. The dishes are washed using a pump. It draws detergent from the tank and delivers it to the spray arms. Rinsing is accomplished using hot water drawn from the water heater and delivered to the spray arms.

The pause is necessary to switch between the detergent and hot water flows. The machine's control system can extend the pause between the wash and rinse cycles if the heating element hasn't had time to heat the water, which typically occurs during intensive use. A temperature sensor monitors the heating of the incoming water and prevents cold water from being used for the rinse cycle.

The factory settings for rinsing water are 85⁰C, but it can be decreased or increased by turning the potentiometer screw. If you need to decrease the temperature, rotate the potentiometer counterclockwise; if you need to increase it, rotate it clockwise. It's simple.

If, after adjusting the temperature, the thermal switch that protects the heating element from overheating starts to trip, this means that the rinse water is boiling and the heating temperature must be reduced.

How is the installation carried out?

The MPU 700 installation must be performed by accredited specialists who have signed an agreement with Grodtorgmash RUE. First, the machine is unpacked. All components must be checked for completeness. The loading table is installed, and then the flexible hose is routed through its bushing and connected to the sprinkler. The machine itself is leveled vertically. The permissible difference in level should not exceed 2 degrees.

Next, assemble the loading and unloading tables and attach them to the washing section. The height of the tables can be adjusted using special supports. Pay attention to the tilt adjustment of the table where the cassettes are unloaded. Water should drain into the basin. Don't forget to secure the cassette storage shelves. The next step is to remove the protective film from all components. Next, connect to the water supply, sewerage system, and electrical network according to the instructions included with the MPU 700.

The MPU 700 industrial dishwasher boasts a simple and reliable design and will provide excellent service for many years. It's affordable and easy to assemble and operate. It's an ideal choice for small and medium businesses.
