Zanussi washing machine won't turn on

Breakdowns always strike unexpectedly, and often the urge to do a big wash unexpectedly ends in frustration and confusion. And just recently, a perfectly functioning machine stops responding. A Zanussi washing machine won't turn on for many reasons, ranging from electrical problems in the room to a non-functioning door lock or a faulty module.

But don't write off your washing machine and plan on buying a new one. It's entirely possible to resolve the issue and resume your regular washing routine. Simply follow the instructions below.

How does a breakdown manifest itself and why does it occur?

Call it Murphy's Law, a coincidence, or a pattern, but sooner or later your washing machine will break down. Zanussi machines are no exception. You can detect your washing machine's SOS signal by the following symptoms.

1. The system doesn't respond to pressing the "Start" button. The lights don't light, and no water is drawn in, even after reconnecting.
2. The power supply is "cut off." After pressing the start button, several indicators light up and then immediately go out.
3. The hatch door doesn't close. There's no click or locking sound.
4. Everything is blinking. The situation is the opposite of the first: pressing “Start” causes all the lights on the control panel to flash. Even those that usually remain unlit.

If you experience any of the above, reboot your machine. It's possible the system crashed once, but if the issue persists, you'll need to dig deeper and perform repairs yourself. You'll need to fix one of the following issues:

• loose contacts in the socket;
• no power supply in the network;
• broken cord or plug;
• damage to the power button;
• faulty FPS;
• malfunction with the UBL;
• defective electrical circuit;
• failed internal wiring;
• non-functioning programmer or program switch.

The average person can only fix some of the listed problems themselves, but there's no need to rush into calling a service center. It's best to try to pinpoint the exact location of the problem, as some of these can be fixed quickly and without the need for specialists. We'll explain where to start and what to check below.

We check and repair

The first step in the instructions for what to do if your Zanussi washing machine stops responding to the "Start" button is to check the power supply. Most starting problems are caused by simple carelessness: forgetting to plug in the power cord or not noticing there's a power outage.

If the plug is in the outlet, there's light in other rooms, and the cycle still doesn't start, it's recommended to check the specific outlet. More specifically, you need to check if there's power there. The easiest way to check is to plug a hair dryer or table lamp into the outlet you're testing. A lack of response from the appliances indicates loose contacts, damaged insulation, and a necessary repair. However, using an extension cord, you can quickly and easily run the washing machine from a different outlet.

Another option is if the machine's power cord is damaged. This is immediately noticeable: traces of burning, the smell of melted insulation, pinched areas, or external cracks clearly indicate that the cord needs to be replaced. If you have the necessary knowledge and experience, you can perform this procedure yourself; otherwise, contact a service center.

If the electrical system is working properly, you should look for the problem elsewhere. But do everything carefully and consistently. Unplug the machine and assess the functionality of each component that could trigger the shutdown.

Important! Make sure the washing machine is completely unplugged from the power outlet.

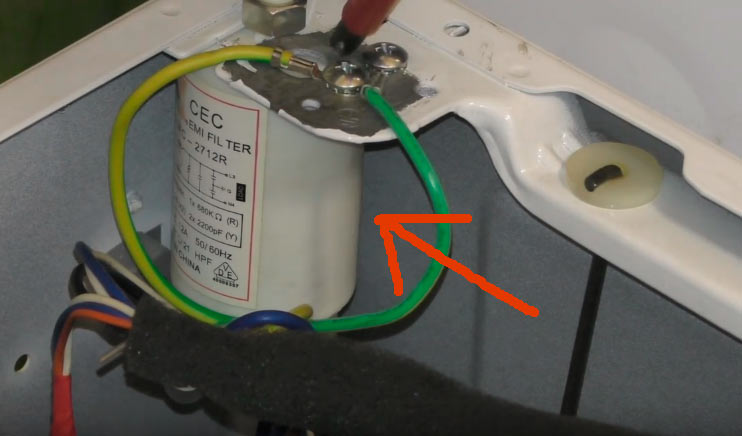

1. FSP. A faulty interference filter can leak common voltage and prevent the washing machine from starting properly. In this case, none of the indicators will light when connected to the power supply. You can verify the component's functionality by testing the input and output. If the FSP doesn't test properly, it will need to be completely replaced.
2. The "Start" button. The problematic key is removed from the list of possible causes using a similar method to the FSP. Each conductor that approaches the button is tested (in the pressed position) and if the result is negative, it is replaced with a new one.

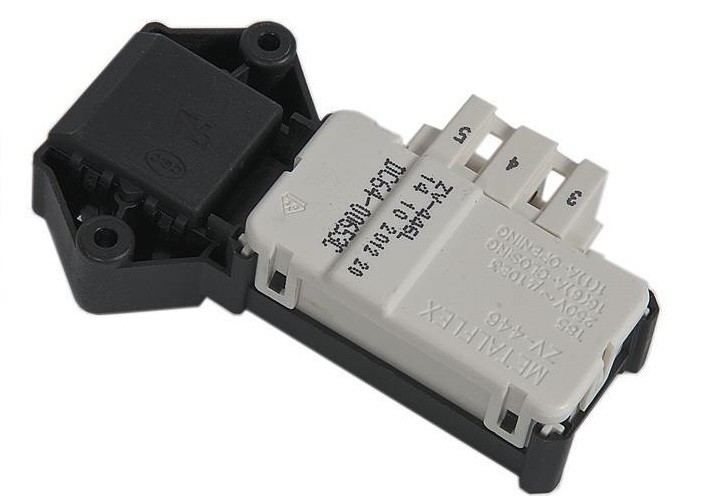

3. Door Lock. There are two ways to determine if the machine won't start because the door lock is broken. The most reliable is to use a tester to check for adequate voltage, and the absence of any numbers on the multimeter display will confirm this. Alternatively, try closing the door; the familiar "click" will 60% guarantee a working door lock.
4. Internal wiring. Damaged internal wiring can cause all the dashboard indicators to flash simultaneously. In this case, you can try to find the leaks, repair the insulation, and fix the connections yourself, but it's best to have the entire wiring replaced by professionals.

If previous checks haven't revealed the source of the problem, then nine times out of ten the main control element is to blame. For machines with electromechanical controls, you'll need to use a programmer, while for electronic controls, you'll need to use a module. Testing these components, replacing the control unit, or repairing the associated wires is impossible on your own. Therefore, it's recommended to call a service technician. Moreover, there's always the possibility that the problem is purely individual and the cause of the outage is in a completely unexpected place. Early detection of this problem can save you a significant amount of money.

Caution! If you smell a burning smell, see light smoke, sparks, or dark spots near the machine, do not plug it in under any circumstances!

Zanussi washing machines, like all modern automatic washing machines, are complex devices with high-tech electronics. One careless move or minor repair can lead to serious, and most importantly, costly, problems. Therefore, it's recommended to assess your capabilities realistically and stop at the electrical power supply check. Testing the FSP, UBL, control systems, and dashboard should be handled by a trained technician.
