Review of the MMU 2000 dishwasher

The largest food service establishments require specialized dishwasher equipment, and such equipment exists on the Russian market. Today, we'll discuss the super-productive MMU 2000 dishwasher. How does it differ from previous models in the MMU series? What are its characteristics, and why do restaurant industry moguls so readily choose it? You'll certainly find the answers to these questions.

Machine capabilities

Why is the MMU 2000 conveyor-type dishwasher called super-productive? Because it can wash 2,800 dishes in an hour, while the popular and productiveMMU 1000M dishwasher It washes only 1,600 plates. It's a veritable mini-factory for the continuous "transformation" of dirty dishes into clean ones. There are many places in our country where this is desperately needed: the cafeterias of giant companies, the largest fast-food restaurants, huge international hotels, and so on.

The machine is capable of washing a wide variety of dishes, but it is better if it can withstand an aggressive environment, since washing occurs at a temperature of 85⁰S. It is recommended to use glass, ceramic, and metal dishes with an anti-corrosion coating. The main thing is that they can withstand the detergent solution and boiling water. The MMU 2000 comes with 530x325 mm baskets, meaning the dishes must be of the appropriate size.

MMU 2000 can be connected to both hot and cold water supply. Connecting to a hot water supply can result in significant energy savings, but heating elements fail approximately 1.5 times more often. This dishwasher features:

• automatically clean dishes from food residues;
• spray the dish rack with a cleaning solution under pressure;
• perform pre-rinsing;
• perform a secondary rinse with hot water.

MMU 2000 cannot be used in rooms where the air temperature drops below +15⁰WITH.

Brief description

What are the main technical specifications of the MMU 2000? We've already outlined the theoretical throughput: 2,800 dishes per hour. The machine consumes approximately 64 kWh of electricity. It is connected to a 380 V, 50 Hz industrial power supply. During intensive operation, the MMU 2000 consumes approximately 400 liters of hot water. It has a function for heating the washing solution to a temperature of 40°C.⁰C. For rinsing and washing, the machine heats the water to a temperature of 85⁰WITH.

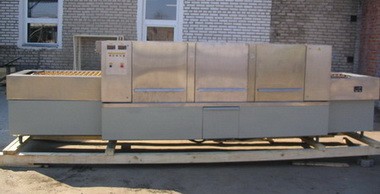

The MMU 2000 is 4850 mm long, 1100 mm wide, and 1350 mm high. The total weight of the dishwasher with all accessories is 665 kg. The estimated service life of the MMU 2000 is at least 8 years. After a major overhaul, it can function normally again. Scheduled maintenance should be performed every 2 years.

How does it work?

The MMU 2000 is a powerful industrial unit with a rather complex design. We won't describe it in full; all the necessary information is available in the home appliance's datasheet (or, more accurately, in the industrial appliance's datasheet). We'll only touch on the main components. The machine consists of three distinct sections: loading, washing, and unloading, which in turn consist of a number of parts.

1. Frames.
2. Tension shaft.
3. Tension adjustment screws.
4. Facing belts
5. Detergent reservoir.
6. Collection for food scraps.
7. Overflow control trays.
8. Collector knocked down.
9. Pumps.

10. Washing collector.
11. Rinsing collector.
12. Re-rinse collector.
13. Bugiel.
14. Baths of the washing section.
15. Heating elements.
16. Doors covering technological openings.
17. Valves.
18. Sanitary treatment sleeves.
19. Inlet and relief valves.
20. Electronic module, LEDs and other electrical equipment.

How to use it correctly?

Before turning on the MMU 2000 dishwasher, check all major components. The electrical system should be working properly, and the drain should not be clogged with food debris. After preparing the machine for use, fill it with at least a few dozen baskets of dirty dishes. The dishes should be stacked tightly. Glasses are placed upside down, plates are placed on their sides, kitchen utensils are arranged so that handles and other protruding parts do not interfere with the passage of cassettes along the conveyor.

When loading dirty dishes into the racks, remove any large food particles; the machine will remove any smaller particles automatically. Fill the tank with detergent, place the racks in the loading area, and start the dishwasher. After the dishwasher is finished, remove the racks containing clean dishes from the unloading area and ensure all wastewater has drained into the drain.

So, the MMU 2000 is a powerful and affordable industrial unit that will provide powerful support even for large businesses. The average price of this model is $9,700, while similar Western European machines cost around $19,000. Feel the difference!
