Error code D01 in a Bosch washing machine

This error code can appear even on new machines, during the first wash. Seeing this error code on the display, users begin to suspect a manufacturing defect. Let's look at what error code D01 means on a Bosch machine and what kind of malfunction it indicates.

Purpose of the cipher

In most cases, the code appears on a Bosch washing machine after the tank has filled with water. You can hear the sound of fluid draining from the system. It drains into the sewer by gravity, without the need for a drain pump. Error d01 informs about “self-draining”, which occurs due to incorrect connection of the drain hose.

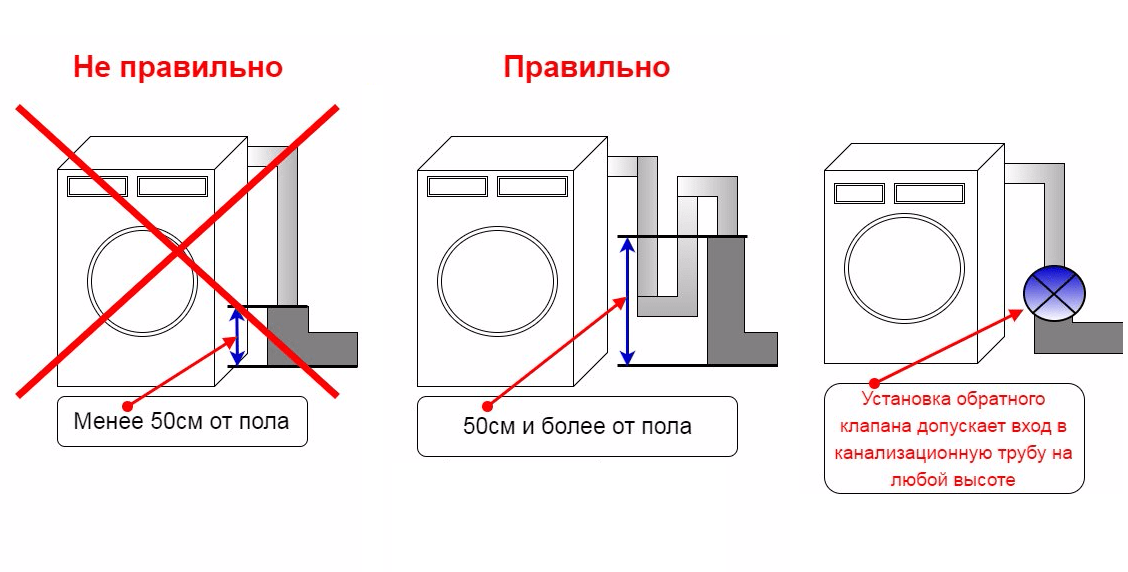

Thus, error code D01 doesn't indicate a manufacturing defect, but rather indicates that the washing machine is not connected to the wastewater outlet correctly. If the drain hose isn't installed according to the instructions, a spontaneous leak from the drum is practically guaranteed. The hose will be below the level of the drum, lying directly on the floor, which is ideal for the unimpeded drainage of freshly collected liquid.

If you see the d01 error code on the display, make sure that the drain hose is properly connected to the sewer outlet.

Resetting the code doesn't require any equipment repair. Simply connect your Bosch washing machine to the house's utilities.

Let's organize drainage correctly

What should I do to fix my washing machine and clear the code on the display? The answer is obvious: properly install the drain. The drain hose of the washing machine can be connected either directly to the sewer pipe or to a common trap.

Before installing the drain, install a trap under the sink or bathtub. If the device doesn't have a separate outlet for the washing machine, you'll need to connect a plastic tee to it. If left as is, the unpleasant sewer odor will continue to flow into the washing machine. Therefore, it's important to create a protective air cushion in the trap.

The siphon has a separate branch where a corrugated hose is connected. It's curved so that water enters and remains within the bend, acting as an "air barrier." This plug prevents unpleasant odors from entering the machine. The "cushion" does not impede the drain in any way and is renewed each time the water is flushed.

For more efficient drainage, it is recommended to install a siphon with a check valve.

This device will block not only unpleasant odors but also dirty water from entering the washing machine's drum. It is also recommended to install a safety valve in the siphon. This is necessary to prevent pressurized wastewater from backing up into the machine if the pipe becomes clogged.

Once the trap is installed, connect the drain hose to its branch. It's important to tighten the clamp securely.

The second option is to connect the drain hose to a branch of the sewer pipe. This requires a transition ring seal. The gasket will ensure a tight seal. This method is more labor-intensive than the previous one, but it is optimal if the automatic washing machine is located more than two meters from the trap.

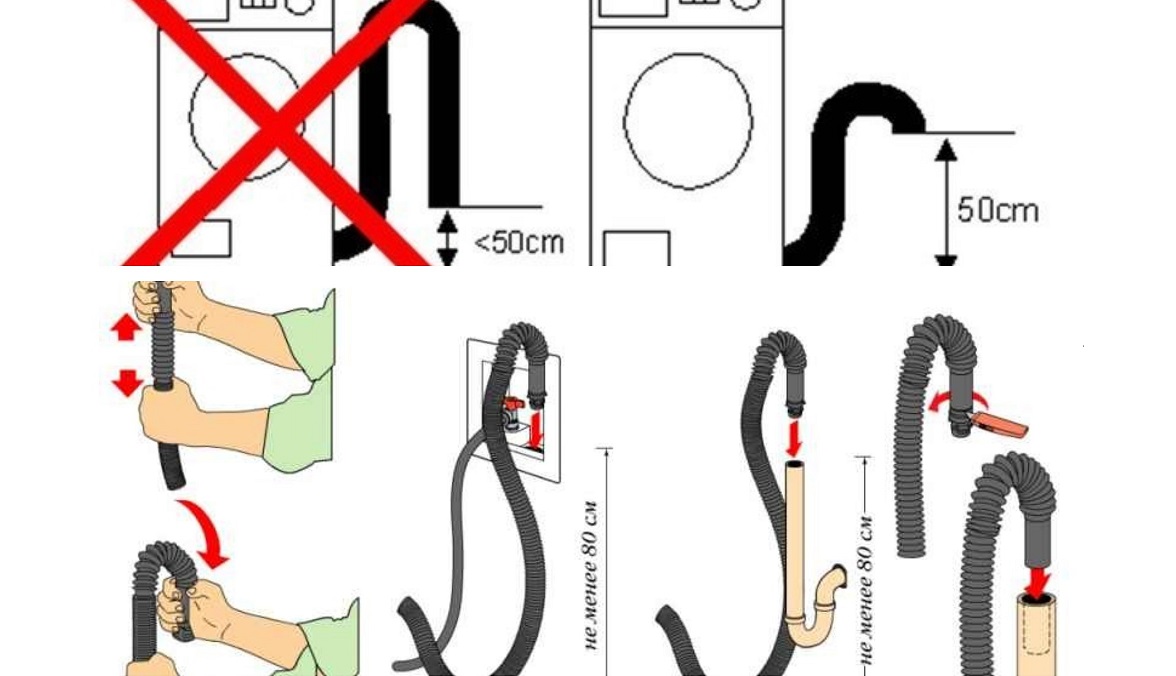

When arranging drainage through a siphon or directly, it is important to take into account the distance to the outlet point. The place where the end of the drainage hose is located must be raised 50-60 cm above the floor level. When connecting to a pipe branch, the distance can be reduced to 40 cm. The drain hose can be raised to a maximum of 100 cm, otherwise the pump's capacity will not be sufficient to pump out the water.

Each user chooses the optimal connection method based on various factors. Establishing a drain through a trap or into a pipe reduces the risk of an emergency leak if the hose is accidentally touched. Simply redirecting the hose into a bathtub or sink is unsafe and unhygienic. Once the cause of the "self-draining" is eliminated, the D01 error code will disappear. The washing machine will be ready to function.
