Error EH0 in an AEG washing machine

Self-diagnosing the float sensor, replacing the line filter, and flashing the control board are the most common and ill-considered measures taken by owners when their AEG washing machine displays the EH0 error code. Such experiments are often unforgiving, and they can cause serious damage. To choose the right course of action, it's important to understand what this error code means.

Internal diagnostics will help

In AEG washing machines, the EH0 code is a general error code that requires clarification and a self-diagnosis cycle. In other words, when this symbol appears on the display, the owner should perform a test wash. But first, be honest with yourself about whether you have the knowledge and experience to handle the problem yourself. If the answer is no, your best option is to contact a service center, especially if the warranty period has not yet expired.

If you're confident in your own abilities, you can try to fix the problem yourself. The advantage of modern automatic washing machines is that they're equipped with a smart self-diagnostic system. It includes a list of specific combinations that alert you to a particular malfunction. All you have to do is decipher it. To do this, you first need to reset the error code displayed on the display and then run a test wash. What should you do in this case?

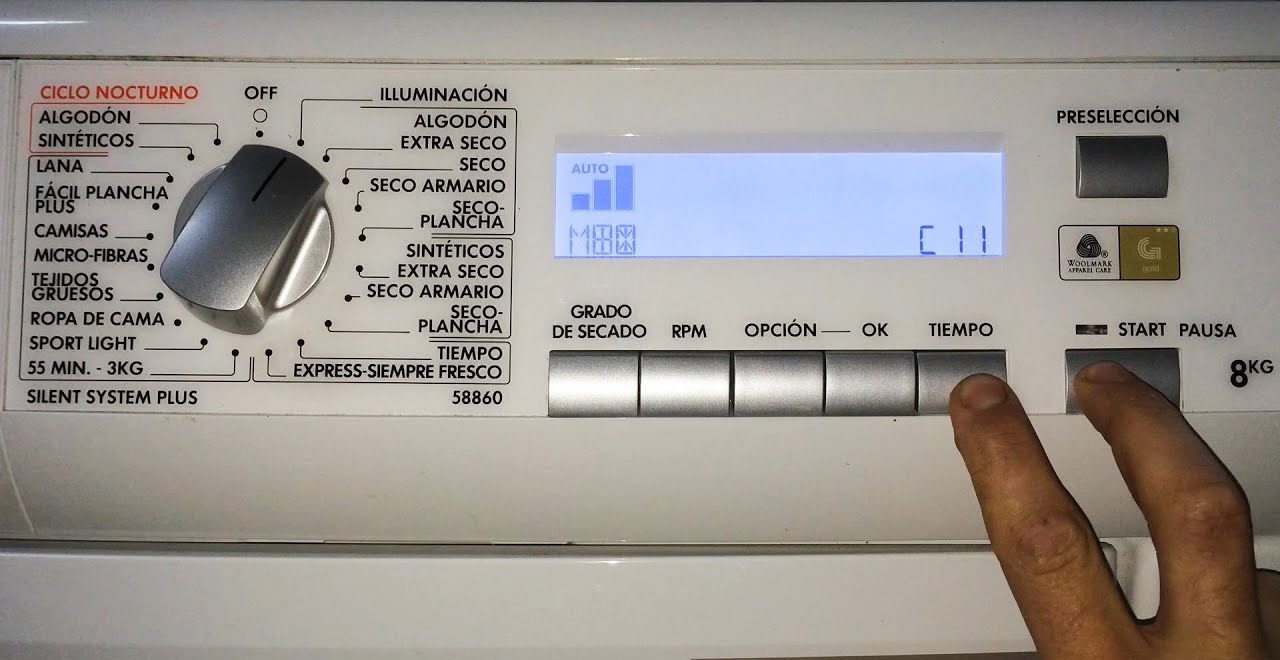

1. Make sure the machine is plugged in but not washing.
2. Press two buttons on the control panel: "Start/Pause" and "Delayed Start." They are located next to each other.
3. Simultaneously with the previous step, switch the programmer to the first position. The lights on the control panel will flash to indicate that everything has been done correctly.
4. Now you can release the buttons and move the gear selector forward clockwise. This signals the washing machine to begin a self-test to detect any malfunctions.
5. Move the switch to position 10. It's labeled "Women's Lingerie." The display should once again show the error code EH.

If everything goes according to the instructions and the correct indicator lights up, press "Delayed Start" and "Start/Pause" simultaneously again. This is necessary to clear the error data from the machine's memory. After 2-4 seconds, the E00 code should appear on the display. This indicates a system update.

Important! After completing these steps, disconnect the appliance from the power supply.

After a few minutes, you can turn it back on. Once the ELE combination appears on the control panel, the machine will begin a test wash.

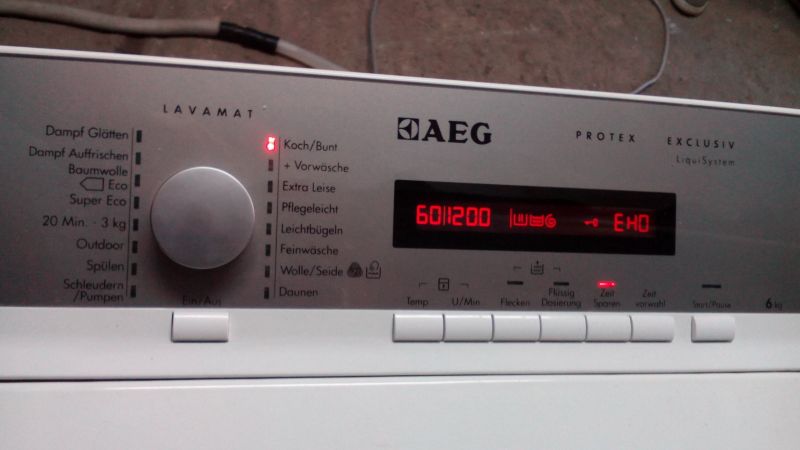

What is this for?

The washing machine owner must remain near the unit during the "smart" diagnostics and monitor the display on the control panel. The system will display various codes, signaling any detected problems, or emit sounds. It's best to copy down the display codes or take a photo for accuracy. Knowing the final combination can help determine the cause of the AEG washing machine malfunction. What signals might the device emit, and how can they be deciphered?

• One sound and codes C1 and E10 indicate problems in the water intake system.
• A double beep and C2, E20 indicate the need to check the drain for blockage.
• A triple sound and C3, EF3, F3 occur when the Aquastop system is activated.
• Quadruple sound and C2, E40 – UBL.
• Nine beeps and codes C9, E50 indicate a malfunction in the engine.
• An eleven-fold beep and Eb0, EH0 errors appear when there is a malfunction in the electronic “stuffing”.
• Fifteen-sound alarms and EF1, EF2 occur when the pump is clogged or there is excessive foam formation.
• CE means the dispensary is broken.
• T90, CF indicate that the control board needs to be checked for proper functioning.
• 8 or E80 indicate a programmer failure.

AEG washing machine owners should be aware that running a test cycle does not cancel the manufacturer's obligations or void the warranty. At the service center, simply provide information that you have performed a self-test. After the self-test, you can proceed with repairs yourself or seek professional assistance.
