My Indesit washing machine displays error code F07.

A self-diagnostic system greatly simplifies the operation of a washing machine. For example, if an Indesit displays error code F07, it means there's a problem with the water intake. Simply put, the machine can't fill the drum to the required level within the allotted time. Models without a display will indicate this problem with an indicator: the "Soak," "Extra Rinse," and "Speed" buttons will flash, or the "Speed," "Super Wash," and "Quick" buttons will flash simultaneously. Ignoring the dryness of the machine won't work—it'll require diagnostics and troubleshooting.

Potential problems

An empty Indesit washing machine won't wash clothes. Furthermore, the cycle won't start—it'll beep and display an error message. Code ""F07" does not always indicate a serious breakdown: sometimes the problem is the lack of central water supply or a loosely closed door. In the first case, it is impossible to fill with water; in the second, the board blocks the supply for safety reasons.

If there's water in the riser and the door is tightly closed, the washing machine is displaying the F07 code due to a malfunction. Several faults can cause this error, from a clogged water inlet system to a broken pressure switch or a faulty control board. Let's look at each possible culprit.

1. Inlet valve. This component is part of the filling system, opening the door for water to enter the machine. If it breaks, the membrane doesn't operate, and the machine remains "locked." A malfunction with the valve mechanism can be detected by the presence of detergent remaining in the detergent drawer. This can be verified by applying 220V to the valve. If the device doesn't click, the problem has been detected.
2. Mesh filter. A simple blockage in the filling system can also cause the F07 error. Typically, the filter mesh at the end of the hose becomes clogged. The small holes become clogged with dirt, debris, and scale. The Indesit attempts to fill with water, humming for several minutes, but to no avail—the drum remains empty.
3. Coarse filter. Another mesh screen installed in the water pipe for primary water purification. The filter absorbs all the "impact" and, over time, becomes clogged with dirt, making it difficult to draw. Fixing this is simple: clean the nozzle.

The F07 code on Indesit washing machines indicates problems with water intake!

4. Pressure switch. Filling problems are most often caused by a faulty level sensor. This device malfunctions and stops recording the drum's fullness. The circuit board detects the pressure switch's malfunction and, to prevent leakage, urgently terminates the program. To check the device, remove the top cover of the Indesit, locate the sensor, detach the tube from it, and blow through it. Normally, the mechanism should close and click; if faulty, there will be silence.
5. Pressure switch hose. Over time, the hose can become dirty, damaged, and leak. This can interfere with the level sensor's normal operation, preventing the drum from filling, and leading to error code F.
6. Inlet hose. The hose coming from the riser is likely kinked, preventing water from reaching the drum.
7. Drain pump. Every Indesit washing machine empties the drum from the previous wash before a new cycle, draining the water. If there is a problem with the drainage, the circuit board detects a drum failure and cancels the program.
8. Control board. If the module fails, the entire system will stop. The electronic unit will be unable to receive or transmit information, so the machine stops during the water filling phase and displays error code F07.

Even a professional won't be able to immediately determine what the F07 code means. The faults listed above often have similar symptoms, especially if the machine's behavior before the failure was not assessed. To identify the problem, you will have to check all possible issues sequentially, moving from the simple - the hose, filters and pressure switch - to the complex - the control board.

How to find a breakdown?

If you see the F07 code on your display, you don't necessarily need to immediately contact a service center. Anyone can diagnose and repair the problem themselves, as long as you follow the correct procedure and safety precautions. First, disconnect the Indesit from the power supply, and second, begin checking the machine's filling system. We proceed as follows:

• We check to see if the central water supply is turned off (it is enough to open the tap in the bathroom);

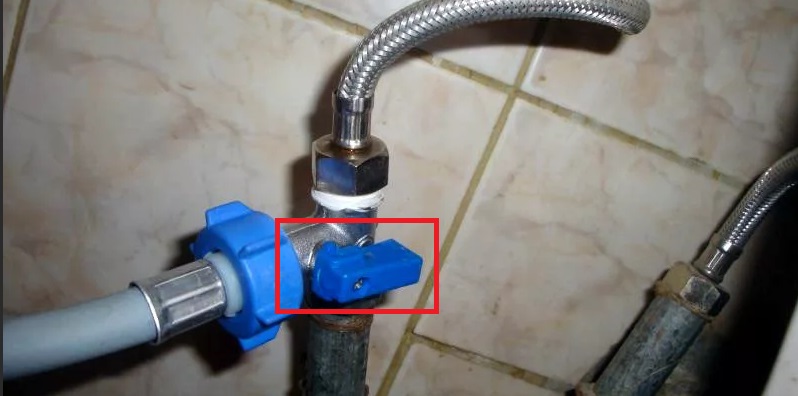

• make sure that the water supply tap is open;
• We assess the condition of the inlet hose (whether it is damaged, pinched or clogged).

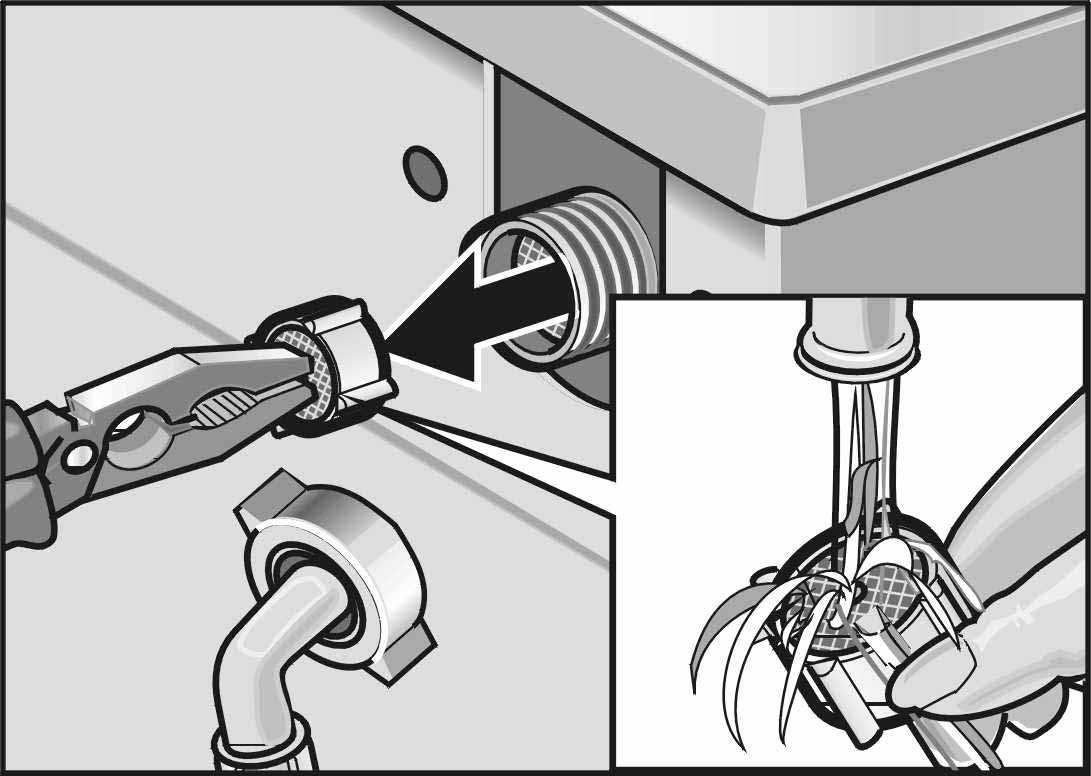

Next up is the filter mesh. This is a round attachment that attaches to the inlet hose, collecting dirt and debris from the water supply. It's important to check to see if the filter is completely clogged. Here's how to diagnose and clean the mesh:

Be careful when disconnecting the inlet hose – there may be water left in it!

• loosen the clamp securing the inlet hose to the Indesit body;
• disconnect the hose from the washing machine;
• at the junction we look for a grid;
• we grab the protruding part of the filter and remove it from the grooves;
• We wash the mesh under the tap and, if necessary, clean it with a toothbrush and laundry soap;
• We install the filter in place and return the inlet hose to the body.

Another reason for an empty drum is a clogged coarse filter. Cleaning it is more difficult because it's built into the water supply and located behind the water inlet valve. You'll need to use wrenches to unscrew a couple of fasteners on the riser and loosen the nut holding the valve. A stream of water will immediately flow out of the hole, washing away any debris on the filter.

Intake mechanism

The F07 code on Indesit washing machines most often indicates a problem with the inlet valve. It's likely broken and needs to be replaced. The part can't be repaired—it's a one-time use item. Fortunately, a new one is inexpensive, costing about $7. If you do the repair yourself, a service center will charge around $20. Testing and replacing the valve on an Indesit washing machine is easy if you follow these steps:

• disconnect the washing machine from the power supply and water supply;
• disconnect the inlet hose from the Indesit and drain the residual water from it;
• unhook the top cover;

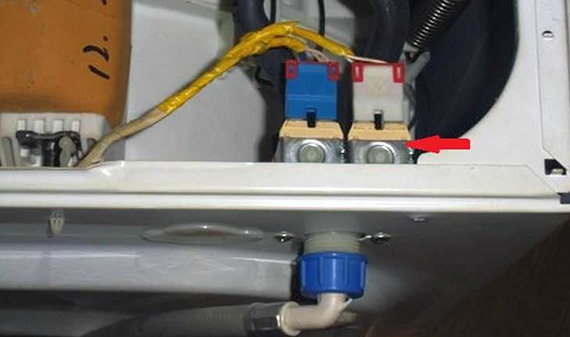

• find the inlet valve;
• take a photo of how the wires and hoses are connected;
• disconnect the connected wiring and pipes;
• loosen the locking screw;
• remove the valve;
• install a new valve in the “nest”;
• secure the device with a bolt, connect the hoses and wiring;
• return the cap and inlet hose.

After replacing the valve, check its functionality by plugging in the washing machine and running a cycle. If the F07 error reappears, the problem lies with the circuit board. In this case, troubleshooting the problem yourself is dangerous; it's best to contact a service center.
