Error F16 in an Ariston washing machine

Hotpoint Ariston top-loading washing machines may display the F16 error code immediately after starting the wash cycle. In most cases, the error appears immediately, even before the program begins. Sometimes, the code may appear while the wash cycle is still in progress. Let's look at what the F16 error code means and what kind of washing machine malfunction it indicates.

Manifestation of an error

The easiest way to detect the error is on a modern washing machine with a display. The system will display the abbreviation F16 on the digital screen. If the machine doesn't have a display, the user will have to carefully observe the machine's behavior.

Early Hotpoint Ariston models with a single power indicator on the control panel (ATL, AT, and TX models) will indicate a system malfunction by flashing the indicator light and rotating the program selector. Sixteen consecutive flashes of the indicator light and a clicking sound from the programmer will indicate an F16 error.

Washing machines equipped with not only a power button but also additional function keys notify the user in a slightly different way. For example, on AVTL and AVTXL series machines, the "Spin" indicator will flash, along with the "Key" symbol for the door lock.

Ariston Low-End vertical washing machines indicate an error by flashing the "Rinse" light (located in the column with the cycle progress indicators). Additionally, the LEDs for additional options may also light up.

Where did she come from?

What should I do to fix the detected error? It's important to understand what system malfunction this error code indicates. Error F16 on washing machines Ariston with a top loading type indicates a problem with the drum parking sensor.

This error code is specific to vertical washing machines; front-loading washing machines do not have this error.

There are several possible causes for the failure:

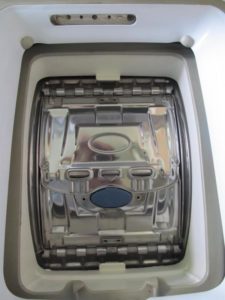

• The drum doors are not fully closed. Make sure you close the doors securely after loading items. You should hear a distinctive clicking sound when they close. If they are not fully closed, the machine will not start.
• Loose contact connections. Make sure the wires in the circuit from the parking sensor to the control unit are tightly connected. Sometimes, due to vibrations generated by the washing machine during operation, the contacts become loose. Repairing the wiring will solve the problem.
• A one-time malfunction of the control module. Unplugging the washing machine for 15 minutes may help clear the code. Then, restart the washing machine and select the desired wash program.

So, the F16 fault is in Ariston washing machine, can occur for several reasons. If quick fixes don't help, you should consider a full repair. In some cases, you'll need to seek professional help.

We are trying to repair

Initially, you can try repairing the washing machine yourself. If closing the drum doors again until you hear a distinctive click or restarting the machine doesn't help, more extensive repairs will be required.

To check the drum lock sensor, parking device, and microswitch for proper operation, use a multimeter. Each component can be diagnosed using the tester. If any faults are detected, the damaged part must be replaced.

It will be very difficult for a non-professional to fix the problem if the control unit fails. If the module's tracks are burned out, the microcircuit is burned out, or the main microprocessor is damaged, it is recommended to contact a service center or repair shop for professional assistance.

Error F16 may appear if water gets on the parking sensor contacts.

If you attempt repairs yourself, be prepared to resolder burned-out circuit traces and replace any components that are found to be faulty. If the microprocessor fails, the control module cannot be repaired and will have to be completely replaced.

It's not a given that the problem lies with the control board. Be sure to inspect the washing machine's wiring for damage or loose connections. Specifically, check the wires running from the drum parking sensor to the main unit.

Wiring deteriorates over time due to external influences, so it is essential to periodically check the contacts for tightness.

In an Ariston washing machine, a wiring defect can lead to more serious consequences. Damaged wires can cause a short circuit, which can result in failure of the electronic main controller. The wiring can be repaired using heat-shrinkable twist ties, but the ideal solution is to completely replace the cable assembly. Contacts can be restored by soldering or completely replacing the worn-out contact block.
