Siemens washing machine error code F23

Most automatic washing machines are equipped with a self-diagnosis function. If a component fails, a code appears on the machine's display, alerting the user to the problem. Siemens washing machines also have a database of pre-programmed error codes. What does a sudden F23 error on a Siemens washing machine indicate?

What could have caused the error?

First, you need to understand why this symbol appears on the control panel. This Siemens washing machine error code is triggered by Aquastop system, designed to protect the washing machine body from emergency leaks. It is when the Aquastop add-on is activated that the display shows the indication F23.

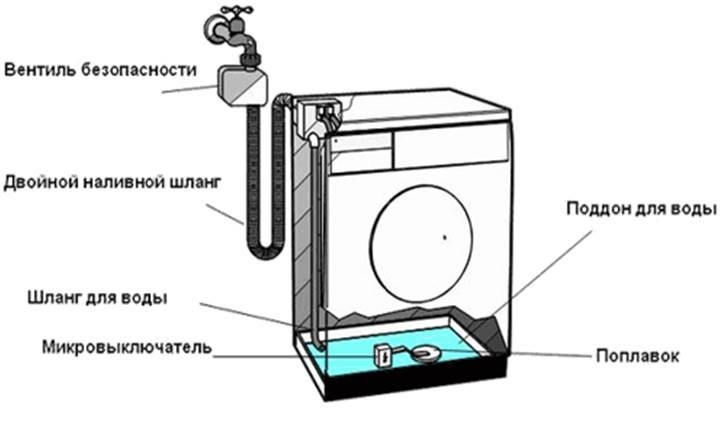

The machine's leak protection system consists of a special element installed on the water intake hose and a sensor connected to a float located in the washing machine's tray. If, due to any factors, water fills the tray, the float rises. A corresponding signal is sent to the sensor, which then blocks the water intake through the inlet hose. This automatically stops the washing process and the machine's operation.

The washing machine will be able to operate normally after the leak is fixed or the Aquastop function is disabled.

Why does water accumulate in the washing machine's tray? This can happen for the following reasons:

• breakage, damage to the inlet hose;
• loose connection of pipes;
• the presence of cracks or crevices in the machine's tank;
• presence of a foreign object in the powder tray;
• leak in the area of ​​the seal mounting;
• drain pump leak;
• cuff damage.

Additionally, the F23 error may be caused by a malfunction of the Aquastop system itself. Contacts may be disconnected or the circuit may be broken. In some cases, the float may be highly sensitive, with an indicator appearing on the screen whenever the element's position changes. The code may also be caused by a malfunction of the main control module. Let's answer the main question: what should the user do in this situation?

What can be done?

Once the possible causes for the error code appearing on the screen have been clarified, steps can be taken to resolve the problem. First, stop the washing cycle and then drain the water from the drum. The system should be completely drained.

After draining the water from the tank, be sure to de-energize the washing machine.

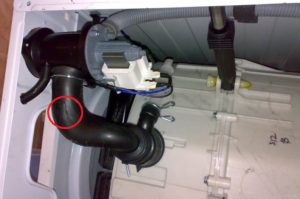

Next, you'll need to drain the water from the washing machine's tray. The machine should be tilted so the water will drain easily. To completely eliminate the breakdown, it is necessary to find the location of the leak. To examine the internal elements of the system in detail, you need to remove the wall of the machine body.

What should you do next? First, inspect the inlet hose for damage. If a defect is found, it's advisable to install a new hose. Next, check the hose connections for leaks. Then, check the pump to see if it's the source of the leak.

Continuing with the diagnostics, inspect the sealing cuff for cracks. Check for a blockage in the detergent drawer. If the problem persists, inspect the seal housing; it may be worn and causing the leak. Finally, inspect the surface of the tank; if a crack is detected, seal it with a sealant. In cases where the tray is completely dry, there is most likely a problem in the Aquastop system. Here, you need to inspect the contacts for disconnections and check the circuit's integrity. The sensor may need to be replaced.

Even the average user, even without specialized knowledge, can perform repairs themselves. By thoroughly examining the problem and carefully inspecting the washing machine's parts, it won't be difficult to detect the problem.
