Error F7 in the Atlant washing machine

What should you do if your washing machine refuses to turn on or start a wash cycle? The display shows error code F7, and on models without a display, the second, third, and fourth indicators will light up. Let's look at the probable causes of this malfunction and what steps to take.

Priority actions

In some cases, the washing machine may not turn on at all. In others, the control panel will activate, but the desired wash program will not start. Error F7 on an Atlant washing machine indicates problems with the power supply, insufficient voltage in the network. What to do next after deciphering the code?

You can try to reset the F7 error by restarting the Atlant washing machine.

So, first, unplug the machine and leave it for 20-30 minutes. After this time, try turning it back on. The error code may disappear as suddenly as it appeared. If this doesn't help, try the following steps.

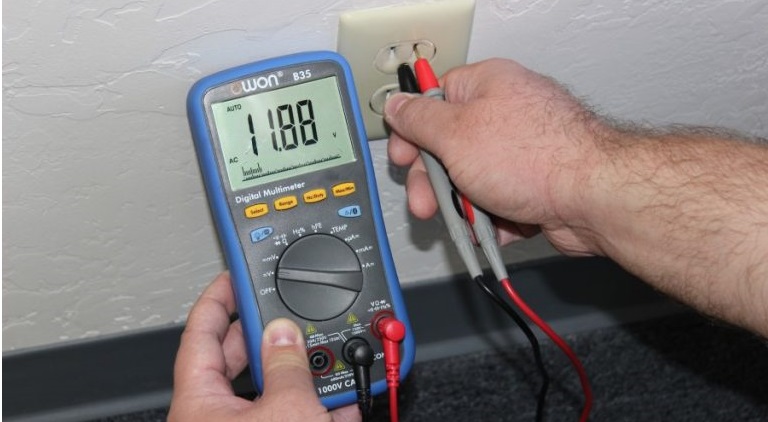

• First, check the electrical system. For a washing machine to work, the voltage must reach 220 V. What can a homeowner do without the necessary equipment? Take any household appliance, such as an electric kettle. If it's functioning properly, there's no problem with the power supply. If it's not working, there's insufficient voltage. This could be due to excessive load on the network, which can happen when several appliances are running simultaneously in an apartment. You can wait until the voltage returns to normal or call an electrician to diagnose the network.
• Secondly, inspect the extension cord if the washing machine is connected to the power outlet this way. The test is similar: plug any other appliance into the outlet where the washing machine's power cord is plugged. If that doesn't work either, the problem is with the extension cord.
• Third, test the washing machine's power cord. You can start with a visual inspection of the cable. You'll likely find any defects or signs of melting on its surface. If there are no visible defects, use a multimeter to test each of the three wires in the cord in turn. If a fault is detected, replace the component.

These are the immediate steps you should take when you see error code F7 on the display. If the problem isn't a power outage, broken extension cord, or faulty power cord, you'll have to dig deeper. Let's figure out how to repair your automatic washing machine.

Checking and replacing the interference filter

Atlant washing machines are equipped with a capacitor that protects the machine from power surges. The interference filter can only handle small fluctuations. If a strong surge occurs, the capacitor will burn out, and in the worst case, the machine's control module will also fail.

To protect your washing machine from breakdowns, it's best to install an additional voltage stabilizer in your apartment.

How to check the interference filter of an Atlant washing machine?

1. De-energize the circuit breaker.
2. Unscrew the bolts securing the “top” of the washing machine and remove the cover.
3. Find the capacitor, it is located on top.

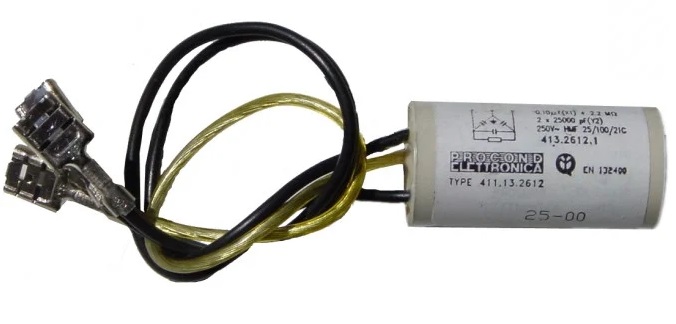

4. Inspect the network filter for swelling and carbon deposits.
5. Remove the back panel of the case.
6. Disconnect the wiring leading to the capacitor.
7. Remove the power filter from the machine.
8. Place the multimeter probes on the element contacts.
9. Measure the voltage of the capacitor at the input and output.

If there's no voltage at the output, the interference filter is no longer functioning. The device cannot be repaired; the capacitor will need to be replaced. If that's not the problem, the control board needs to be diagnosed.

Control module diagnostics

What should you do if, after all your attempts to repair the equipment, your machine stubbornly displays the F7 error code? Most likely, the worst has happened: the main unit, the "brain" of the machine, has been damaged. It's best to leave the control board inspection and repair to specialists; tinkering with the washing machine's electronics yourself without the necessary knowledge and skills is not recommended.

A washing machine malfunction can be caused by poorly soldered diodes on the circuit board, burnt-out resistors, or other small components. To diagnose the problem, you'll need a multimeter. For repairs, you'll need a soldering iron, rosin, and solder.

The following components of the main control module may be faulty:

• Capacitor. If the element is swollen, it can be replaced without using a tester. Otherwise, the part is checked with a multimeter. When reinstalling the capacitor, be sure to note its polarity;
• Resistors. These are tested in two stages. First, first-order elements with a resistance of 8 ohms and up to 2 amperes. Then, first-order elements with a resistance of 10 ohms and up to 5 amperes. If the readings are found to be out of compliance with the standards, the board components will need to be replaced.
• Thyristor block. The first-order diodes are tested with a multimeter. The voltage reading should not exceed 20 volts.

Repairing a control board is a complex and painstaking task. It requires knowledge and experience. To avoid further damage to your washing machine, it's best to entrust the diagnostics to professionals.
