Electrolux dishwasher error code i60

New problems with household appliances are always frightening due to their unknown nature, but they're not always truly serious. For example, the i60 error in an Electrolux dishwasher indicates that the water for the selected cycle isn't heating up, or that the water is heating up too much, which the appliance alerts the user to. Due to the temperature violation, your "home assistant" can't function properly, so you should immediately stop using the appliance and begin repairs. We'll show you how to fix this yourself, without the help of a service center.

How does the breakdown manifest itself?

Before starting repairs, it's important to understand how the error code appears. While it's very difficult to detect significant water overheating in the wash chamber of an Electrolux dishwasher, it's easy to detect a complete lack of heating.

The easiest way to detect this is by looking at dishes that are coated with a film of grease after washing. Furthermore, cutlery can be coated not only with grease and dirt, but also with household chemicals, which should dissolve after each cycle. If the i60 error occurs, you'll usually also find detergent residue at the bottom of the dishwasher, unable to dissolve in cold water. All of the symptoms described indicate a lack of heating, but it doesn't necessarily mean the heating element is faulty.

What components could have failed?

The error code could be caused by several key components of your Electrolux dishwasher, which require careful examination. The causes of the i60 error should be looked for in the following components:

• dishwasher control board;
• heating element;
• temperature sensor.

It is worth mentioning the wiring separately, which could be damaged due to prolonged use of the dishwasher in conditions of high humidity. In this case, the contacts either oxidize or come loose, which causes system failures, including the heating element stopping working properly.

There's another situation that's not particularly relevant in urban areas, but in rural areas, mice are quite common, often getting into the Electrolux dishwasher tray and chewing through the wires. Therefore, the error code can sometimes be caused by a variety of issues that are simply impossible to predict.

The most common problems are those directly related to the water heating element, which is controlled by the electronic board. A fairly common issue is when, during active use, a deposit forms on the heating element, causing the unit to overheat. This deposit occurs when the user of the "home assistant" has very hard tap water. This causes the heating element to operate at maximum power, causing the filament to burn out, and the water heater to fail. It's believed that the heating element is the most common component to fail.

The i60 error is also often triggered by the temperature sensor, which monitors the water temperature in the Electrolux dishwasher and then transmits this information to the control module. Using this data, the board decides whether the water needs further heating or whether the liquid is already hot enough for the selected cycle. Therefore, if the temperature sensor fails, the electronic module will not receive accurate water temperature information and will simply stop the water heater as a precaution. These are all issues that may need to be addressed to restore the operation of your "home assistant."

Temperature sensor and heating element

Let's figure out what to do in a situation where the temperature sensor fails. This is a reason that can be corrected at home, first by conducting a simple diagnosis and then replacing the element. To do this, you only need a few screwdrivers and a regular multimeter with a resistance measurement mode.

All you need to do to reset the error is access the temperature sensor, connect the multimeter probes to the component's contacts, and measure the resistance. If the component is indeed faulty, remove it from the Electrolux dishwasher and take it to the store as a reference to purchase a similar part.

Just in case, before disconnecting the wiring, take a few photos of the correct connection of the part - the photos may be needed when connecting a new element.

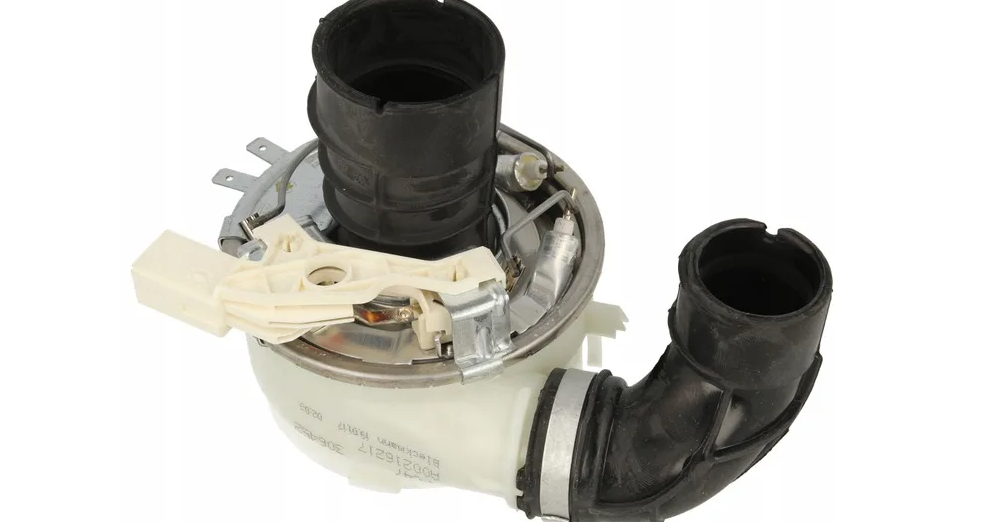

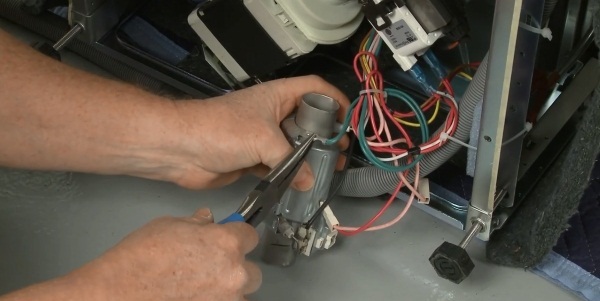

It's also worth considering that the heating element can fail not only due to hard tap water but also due to heavy use. Be prepared for the fact that, due to Russian water supply, the heater typically only lasts a year or two, so it will inevitably need to be replaced eventually. However, this isn't a problem, as the heating element in dishwashers is usually easy to replace, as it's an independent component. Therefore, don't be afraid to remove the damaged element if it is indeed the cause of the malfunction. Carefully check it with a multimeter and replace it if it's faulty.

The i60 error can be even more frustrating if the heating element is part of the circulation pump. In this case, the entire circulation system will need to be replaced, not just the heating element. Naturally, such a repair will be much more expensive than simply replacing the heating element. Often, the cost of the pump and heating element assembly can account for up to 70 percent of the cost of a new Electrolux dishwasher. This is why many housewives opt for a brand new dishwasher rather than spend money on a new unit and the labor of a service representative.

The worst case scenario is when the error code is caused not by the temperature sensor or heating element, but by the dishwasher's control board. This complex component cannot be repaired at home without specialized equipment and experience, so if you suspect the control board is faulty, you'll need to seek professional help.
