Indesit washing machine error codes based on indicator flashing

Indesit washing machine error codes based on indicator flashing Some Indesit washing machine models don't have a digital display. If a malfunction occurs, the machine's self-diagnostic system alerts you to the problem by flashing the indicator light on the main panel. To repair the washing machine, it's necessary to determine which component is faulty. Let's look at how to recognize errors by the indicator light flashing and how to correctly interpret the signals the machine sends.

A common manifestation of the error

The washing machine breaks down when you least expect it. The user, out of habit, loads the laundry into the drum and starts the wash cycle. However, contrary to normal operation:

the wash does not start, instead the lights on the control panel flash;
The process starts, but after a certain time the machine “freezes”, stops functioning, and the LEDs on the panel light up or flash.

The washing process may be interrupted at any stage: soaking, rinsing, spinning, or draining. A lit indicator, coupled with the washing machine stopping operation, indicates a malfunction of the equipment. To find a solution to the problem, you need to understand what kind of malfunction the device is notifying you of. Deciphering flashing indicators isn't as difficult as it might seem at first glance. In this article, we'll describe all possible error codes and their corresponding indications. To decipher the errors, follow these steps:

Find out the type of your Indesit washing machine by the first letters in the model name;
understand which combination of bulbs is lit;
Based on the description provided in the article, identify the alphanumeric designation of the error code indicated by the machine's self-diagnostic system.

You can often identify the cause of a malfunction and repair your washing machine yourself. However, if you're having trouble deciphering the blinking lights, you can call a qualified technician to help you diagnose and fix the problem.

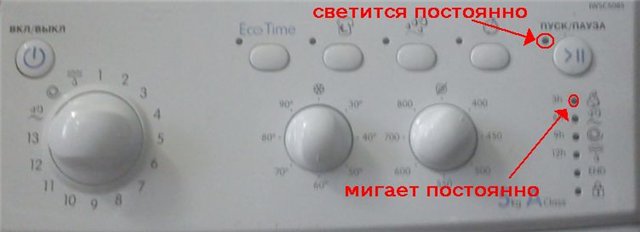

Manifestation of codes in models: IWSB, IWUB, IWDC, IWSC

In the Indesit washing machine models described, the user is alerted to a malfunction by the door lock indicator light and LEDs that normally indicate the wash cycle stages (rinse, spin, drain). Also, the lights typically associated with additional machine functions may flash. Here's a brief description of which indicators will illuminate for specific error codes:

F02 (F2) – only indicator 2 is lit;
F03 (F3) – indicator 1 and 2 are lit;
F04 (F4) – only indicator 3 is in effect;
F05 (F5) – indicator 1 and 3 are activated;
F06 (F6) – lamps 2 and 3;
F07 (F7) – indication number 1, 2 and 3;
F08 (F8) – only the fourth indicator lights up;
F09 (F9) – 1 and 4 pointer;
F10 – the second and fourth LEDs are on;
F11 – 1, 2 and 4 are lit;
F12 – 3 and 4;
F13 – 1, 3 and 4 lamps are activated;
F14 – second, third and fourth buttons;
F15 – lamps 1, 2, 3 and 4 flash;
F16 – indicator 5 lights up;
F17 – first and fifth;
F18 – activation of 2 and 5 lamps.

The simultaneous flashing of certain indicators can indicate a problem with your washing machine. Closely observe the control panel, and after a few seconds, you'll understand the root cause of your washing machine's malfunction.

Designations on typewriters: WISL, WIUL, WIDL, WIL, WITP

These washing machines signal system malfunctions by displaying special function buttons and a “Spin” light. To help you determine the problem, you should focus on the ordinal numbers of the buttons when counting them from left to right, rather than on the names of the functions. Since the latter may differ due to modifications to the control panel on the listed machine models.

Any error code will be accompanied by a constant, fast flashing of the “Lock” indicator, which is responsible for locking the hatch door.

So, in the list we will indicate only the numbers of the indicators that flash in case of a particular malfunction:

F01 (F1) – 4;
F02 (F2) – 3;
F03 (F3) – 3 and 4;
F04 (F4) – 2;
F05 (F5) – 2 and 4;
F06 (F6) – 2 and 3;
F07 (F7) – 2, 3, 4;
F08 (F8) – 1;
F09 (F9) – 1 and 4;
F10 – 1 and 3;
F11 – 1, 3 and 4;
F12 – 1 and 2;
F13 – 1, 2 and 4;
F14 – 1, 2 and 3;
F15 – 1, 2, 3 and 4;
F16 – Cycle 4 (“Spin”) indicator flashes;
F17 – lamp 4 and cycle indicator;
F18 – button number 3 plus spin indicator.

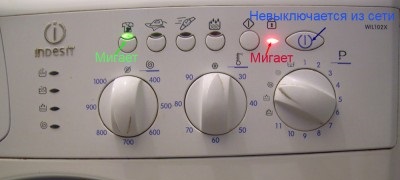

WIL error

An Indesit washing machine without a display clearly informs the user of any malfunctions. Clear indicators will unmistakably point out any system malfunctions.

We determine codes for: WIU, WIN, WISN, WIUN

For these models, the indicator lights for the additional function buttons and the sunroof lock will also alert you to an error. The sunroof lock indicator will rapidly flash red if any malfunction occurs. Here's a complete list of the fault codes programmed into the system and the corresponding indicator flashing numbers:

F01 (F1) – 1;
F02 (F2) – 2;
F03 (F3) – 1 and 2;
F04 (F4) – 3;
F05 (F5) – 1 and 3;
F06 (F6) – 2 and 3;
F07 (F7) – 1, 2, 3;
F08 (F8) – 4;
F09 (F9) – 1 and 4;
F10 – 2 and 4;
F11 – 1, 2 and 4;
F12 – 3 and 4;
F13 – 1, 3 and 4;
F14 –2, 3, 4;
F15 – 1, 2, 3 and 4;
F16 – indicator 5 flashes;
F17 – 1 and 5;
F18 – 2, 5.

WIUN error codes

So, by identifying the blinking light pattern, it's easy to determine the scope of the upcoming repair work. Once you know the source of the problem, you can find a solution and restore your washing machine to its original functionality.

Codes on older models: W, WS, WT, WI

If your Indesit washing machine was purchased many years ago, then its control panel likely only has two indicators: the on/off switch and the door lock.

These models notify the user of an error by rotating the washing program selector knob in a circle and simultaneously flashing the power button light.

The on/off indicator blinks in a cycle with a clear periodicity, approximately every 3-5 seconds. The number of blinks of the machine's power indicator in one series corresponds to the error code number. For example, a single flash of the on/off light indicates error code F01 (F1), 8 consecutive flashes indicate error code F08 (F8), and 18 flashes indicate error code F18. The "Lock" light will also be on.

However, sometimes an Indesit washing machine fails to identify the error code. Sometimes the control panel simply goes dark, or, conversely, all the indicators flash in unison, which doesn't correspond to any fault code. Based on experience, a completely blacked-out panel indicates a power supply issue, while erratically flashing indicators indicate a defect in the machine's control module's pulse source.

Description of errors

Once you've figured out what error code your washing machine is displaying, it's time to figure out what the code means.

Knowing the nature of the problem will allow the user to restore the machine to working order.

Brief description of errors detected by the blinking indicators:

F01 indicates that the car's electric motor is damaged.
F02 indicates abnormal engine operation.
F03 indicates damage to the thermostat.
F04 reports a malfunction of the pressure switch (in other words, the water level sensor).
F05 informs about pump damage.
F06 reports a button (command) error.
F07 indicates that the pressure switch does not function after water has been drawn in.
F08 confirms a heating element failure.
F09 notifies that a control module memory error has occurred.
F10 indicates that the water filling rate into the tank is insufficient.
F11 There is a defect in the drain pump circuit.
F12 indicates a communication failure between the control panel lights and the main module.
F13 indicates that the drying temperature sensor is faulty.
F14 indicates that the drying chamber heater is faulty.
F15 The drying heating element relay is damaged.
F16 indicates that the washing machine drum is blocked (this code is typical only for vertical washers).
F17 informs about a malfunction of the hatch door locking device.
F18 indicates problems with the electronic board processor.
H20 notifies about any problems when filling the tank with water.

Once you've determined what exactly is wrong with your automatic machine, you can begin repairs. Certain problems can be repaired yourself; for example, even a non-professional can do it. replace the heating element, pressure switch, thermostat, door lock, drain pump, and other components. However, if the main control unit fails, it's best to entrust the work to professionals. Electronics are difficult to repair if you've never worked with them before.
