Whirlpool washing machine errors without display

Whirlpool automatic washing machines can alert the user to malfunctions in two ways. Washing machines equipped with a display prompt display the corresponding error code. In this case, it's easy to identify the system malfunction—just decipher the code using the instructions.

Machines without a display indicate problems by illuminating indicators on the control panel. Here, you'll need to observe the lights and determine which component is faulty. Let's look at how to decipher error codes on Whirlpool washing machines without a display.

Let's deal with the light bulbs

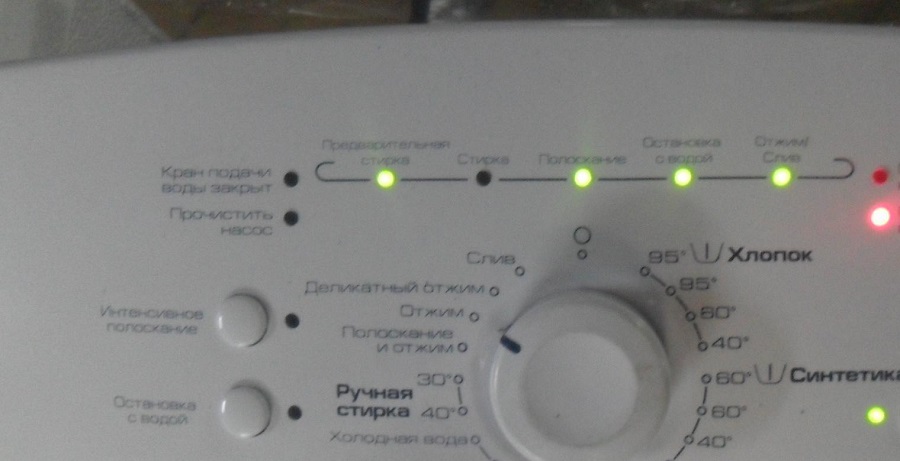

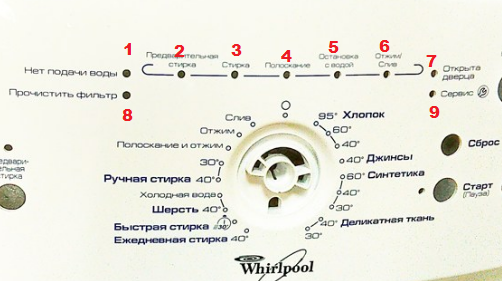

The LEDs on the control panel of older Whirlpool models are located above the program selector. Count the lights from left to right. The first light is "No Water," the second is "Prewash," the third is "Wash," the fourth is "Rinse," the fifth is "Rinse Hold," the sixth is "Drain/Spin," and the seventh is "Door Ajar." The bottom lights are the eighth light, "Clean Filter," and the ninth is "Service."

The system indicates a malfunction by blinking some of these nine lights. It's important to count the LEDs that are lit and determine what malfunction your Whirlpool washing machine without a display is indicating.

Main codes

If your Whirlpool washing machine suddenly stops working, be sure to check the control panel. Using LEDs, the machine will indicate the error code and significantly narrow down the range of possible problems. To restore the unit, you will need to determine what malfunction occurred in the system and perform repairs yourself or with the help of a specialist.

You need to count the bulbs from left to right, and very carefully, so as not to confuse the LED serial number.

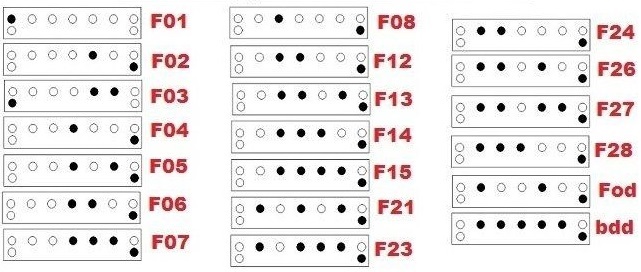

Let's look at the main error codes for Whirlpool washing machines and the LEDs that correspond to each error.

• LEDs 4 and 9 (the "Rinse" and "Service" lights) light up. This indicates a problem with the heating system. If the water in the tank doesn't reach the set temperature within the allotted time, the machine displays this error. To fix the problem, you'll need to diagnose the circuit, service the contacts, or replace the wiring.
• Lamps 4, 6, and 9 are lit. The washing machine is indicating a faulty temperature sensor. Use a multimeter to measure the thermostat's resistance and replace it if necessary.
• LEDs 4, 5, and 9 illuminate. The engine is unable to receive signals from the tachometer sensor. This error will be accompanied by the engine spinning at low speeds. The problem is most often with the Hall sensor. Sometimes, simply replacing the loose washer holding it in place is sufficient; in other cases, the element needs to be replaced. Very rarely, F06 indicates a communication problem in the tachometer-engine-module circuit.
• The fourth, fifth, sixth, and ninth indicators are lit. This indicates a problem with the electric motor control circuit. The main module should be checked. The triac responsible for motor operation may be damaged, in which case replacing the semiconductor element will help. Alternatively, the entire board may be faulty and will need to be reinstalled.

If the main control unit requires repair, it is best to contact specialists to avoid causing further damage to the equipment.

• The third and ninth indicators are illuminated. The Whirlpool washer is indicating a heating element failure. The heater isn't always faulty; sometimes it's due to a broken wiring or corroded contacts. The thermostat circuit may be damaged, so check the sensor and wiring. Error code F08 may also indicate a faulty pressure switch or a damaged control board. A more detailed diagnostic of the equipment is required.
• The machine has detected too much water in the tank. This "overflow" may be caused by a faulty pressure sensor, a defective inlet valve, or a malfunction in the main electronic module. Depending on the cause, replacing the pressure switch, the inlet valve, or repairing the control board will resolve the issue.
• F Engine malfunction. With this error, the engine usually stops working due to damage to the temperature sensor or a faulty triac. If it is not possible to repair the components, a complete replacement of the electric motor or control board of the washing machine will be required. Whirlpool.


• The machine is reporting an external problem. Code F11 indicates insufficient voltage in the network. If the parameters do not meet the standard, it is best to contact an electrician.
• The third, fourth, and ninth LEDs light up. The machine indicates that the wash is being performed in cold water, but the water isn't heating up to the set temperature. There could be several possible causes. The first is a stuck heating relay. This component of the control board will need to be replaced. The second is a burned-out heating element or a fault in its housing. This problem is solved by replacing the tubular element. The third is a broken wire connecting the heater and processor, in which case the contacts need maintenance. The fourth is a faulty temperature sensor.
• Indicators 3, 4, 6, and 9 are lit. The machine is unable to fill—either water is not being added or is entering the tank very slowly. This error may occur due to insufficient water pressure in the house lines, a clogged detergent drawer, a dirty inlet filter, or a blocked inlet valve. You will need to wait until the water supply improves or clean the detergent drawer and filter mesh.
• LEDs 3, 4, 5, and 9 light up. This indicates a processor failure. To resolve the issue, you'll need to reflash the microcontroller or replace the entire module.
• F Lights 3, 4, 5, 6, and 9 are illuminated. In Whirlpool washing machines, this error indicates a motor failure. The converter brushes may need to be replaced, and a new tachometer installed. There may also be a communication problem between the motor and the control module. Sometimes, the electronic unit needs to be repaired or replaced.
• The circuit breaker indicates damage to the control system. Checking and restoring the contacts, repairing individual sections of the board, or replacing the entire control unit may help.
• F Usually, the unit freezes mid-cycle. Sometimes, the machine refuses to turn on at all. This code indicates a problem with the power supply. Possible causes include: insufficient voltage in the home's electrical system, a defective cord, a damaged plug, a broken outlet, or a faulty surge protector in the washing machine.
• F indicates a malfunction in the control board. In most cases, restarting the washing machine resolves the issue. If resetting the error code fails, the electronic module will require diagnostics and possibly repair or replacement.
• Indicators 2, 4, 6, and 9 light up. The machine won't start due to a control module failure. Most likely, the processor-to-control panel circuit has broken. The contacts and wiring will need to be checked. Sometimes, the controller needs to be repaired or replaced.
• This error code can indicate two completely different problems. The first is a malfunctioning heating element. The second is the inability to draw water due to a clogged detergent drawer. If the problem is with the tubular heater, you'll need to replace the element or repair the wiring between it and the control board. If the problem is with the detergent drawer, simply cleaning the drawer will help.

To clean the powder drawer, remove it by pressing on the plastic tab located in the rinse aid compartment.

• LEDs 2, 4, 5, 6, and 9 are lit. The Whirlpool washing machine's "brain" is receiving signals that the tank is empty and then full. Cleaning or replacing the pressure switch will likely help.
• The second, third, and ninth lights are flashing. The machine is alerting the user that the system that controls the water level in the drum is not functioning. The overflow warning continues for longer than one minute.
• Four indicators are lit: 2, 3, 5, and 9. The self-diagnostic system indicates that the engine is not turning. The cause could be either the motor itself or the control module.
• Lamps 2, 3, 5, 6, and 9 are illuminated. The unit is indicating that the motor is only rotating in one direction. The motor relay on the circuit board is likely burned out.
• F Indicators 2, 3, 4, and 9 are illuminated. There's a malfunction in the electric motor—it spins up to insufficient speed or doesn't start at all. This malfunction is usually caused by the stator winding relay. A new one is needed.

As you can see, the same error can indicate different problems. Therefore, it's essential to carefully investigate the problem and conduct additional diagnostics of the equipment. The error codes are deciphered in the washing machine manual. Whirlpool.

Special codes

In addition to the main error codes, there's a supplementary list of error codes generated by Whirlpool equipment. This list is also provided in the user manual. Let's look at the malfunctions and equipment failures that are being discussed.

• FH(F01). Only the first LED is lit. The machine is indicating that water is not entering the system. This could be due to several causes: low water pressure in the pipes, a closed shut-off valve, a clogged inlet valve, or a self-draining problem (if the drain hose is connected incorrectly, the tank fills and then empties). Other possible causes include a broken water level sensor, damaged wiring, or a malfunctioning electronic module. The repair procedure will vary depending on the specific case.
• FA(F02). Lights 5 and 9 are flashing. This means the "Aquastop" function has been activated. This is most often caused by a leak. System leaks can occur due to a damaged tank, defective hatch seal, broken pipes, etc. Less commonly, it's due to a malfunction in the control module.

If your Whirlpool machine is leaking due to a cracked tank, it's best to avoid repairing the unit and consider purchasing a new one.

• FP (F03). Indicators 5, 6, and 8 are illuminated simultaneously. The machine is indicating a drainage system failure – liquid is not being discharged from the tank into the sewer. Possible causes: pump failure, clogged drain hose or debris filter, or damage to the main control board.
• Foad (F18). Lights 2, 5, and 9 light up. The machine stops working due to excessive foaming. You may be using the wrong detergent or have significantly overdosed the detergent. Turn off the machine, wait until the foaming foam subsides, and drain the water from the system by running the appropriate cycle.

• FDL. The washing machine indicates a faulty door lock. You'll need to inspect the door lock contacts. If they're OK, the door lock will need to be replaced.
• FDU: The hatch isn't closed tightly enough. You can try pressing the door with your knee, and the lock will engage. If that doesn't work, the hatch needs to be replaced.
• bdd. This code is specific to vertical washers. LEDs 2, 3, 4, 5, 6, and 9 are illuminated. The machine is indicating that the drum doors are not properly closed. To do this, press and hold the "Reset" button for 3 seconds. The drum should open. Then lift the lid, close the doors again, and select the desired mode.
• F is a very rare code, found only on modern Whirlpool appliances. It indicates that the software hasn't been updated online. In this case, you should contact your internet service provider or a service center.

Deciphering the error codes will help narrow down the possible causes, making it easier to get your machine back up and running. Depending on the complexity of the repair, you should decide whether to do the work yourself or call a service center.
