Indesit Dryer Error Codes

Indesit produces not only high-quality washing machines but also dryers, so it's no surprise that this manufacturer's appliances are often found in Russian homes. These appliances feature an advanced self-diagnostic system that almost always quickly and accurately identifies any internal problems. Today, we'll look at the common faults found in Indesit dryers, helping you quickly identify and fix any problems that arise.

List of codes with decoding

The main error codes can always be found in the official user manual, which describes in detail all possible malfunctions. If you don't have the manufacturer's instructions at hand, you can save or print out our guide. Among the main codes, it is necessary to highlight a number of designations.

• F01. Indicates a short circuit in the motor thyristor.
• F02. Indicates that for some reason the motor is not rotating – this may be due to a problem with the engine or fan unit.
• F03. Appears when the thermistor circuit is open or short-circuited, or after the NTC sensor or main processor fails.
• F04. Occurs when the air pump is not working.
• F05. Indicates the absence of a signal from the air bleed pump.
• F08. The error code is related to the failure of the heater relay.
• F09. System error caused by software failure.
• F10. The system detected poor air flow from the heating element.
• F11. No contact with the pumping device.
• F12. Occurs when there is no communication between the display and the control board.
• F13. Informs about an open circuit in the temperature controller circuit.
• F15. Detects damage to the heating element relay, open circuit, or short circuit.
• F17. Power element failure message.

Depending on the dryer model, the error code may indicate "F" instead of "F". «Err».

It is better to remember these symbols or keep them somewhere nearby so that if an error occurs, you can begin repairs as quickly as possible.

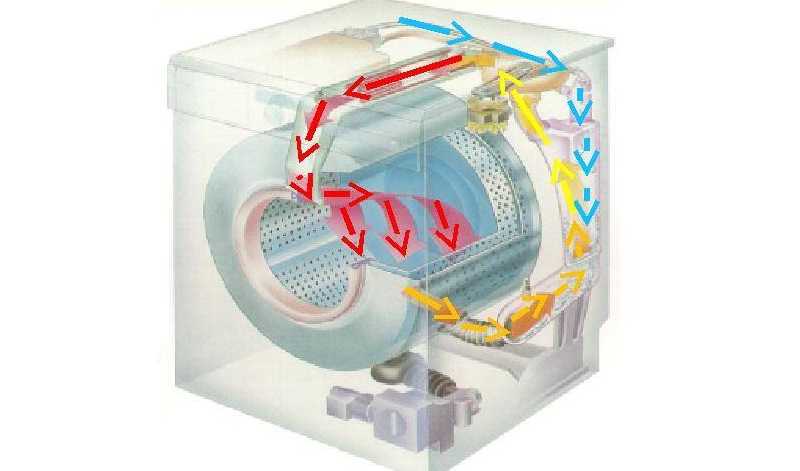

Get to know the design of the dryer

Since not every user is well versed in the operation of a dryer, the error code will not provide any information. Therefore, it is better to at least superficially know the design of a typical drying machine. Indesit – this will help speed up the selection of spare parts and replacement of damaged elements. So what components does a modern “home assistant” consist of?

• The drum, which holds the washed laundry. This unit is very similar to a washing machine drum, except that it is often larger—it can typically hold 7-9 kilograms of clothes at a time, compared to 5-6 kilograms in a standard washing machine. Additionally, the inside of the drum has several additional paddles to better agitate the clothes, preventing them from clumping together. Dryer drums are often made of stainless or hardened steel.
• An electric motor responsible for rotating the drum.
• A drive belt that transmits torque from the engine to the drum.
• A heating element that heats the air for effective drying of clothes.
• A hair dryer or convector that disperses air across the surface of the drum, helping to dry the laundry evenly.
• A pump for removing condensate, which pumps liquid into a special container.
• A condensate container installed to collect liquid.

This auxiliary part must be emptied manually from time to time to ensure that there is always room for the condensate.

• Lint filters actively prevent fabric, threads, and lint from entering the dryer's evacuation pump and other key components. These elements are typically located on the inside of the door.
• A dryer door that seals the opening for loading clothes into the drum.
• Sensors for monitoring temperature, humidity, and other important drying parameters. These aren't found in every model—they're typically found in premium models.
• Machine controls, which can be in the form of rotary mechanisms, touch and physical buttons, plus a touch screen for convenient adjustment of work cycles.

All of the components listed above can be found in condensation dryers, the most popular models. However, there are other dryers that may lack some components and include others.

For example, ventilation-type household appliances don't have a collection container for liquid, as they don't collect condensation. Instead, they have a special hose that discharges moisture either into the ventilation system or directly outside. Furthermore, these appliances have a ventilation mode, as the machine draws in air from outside.

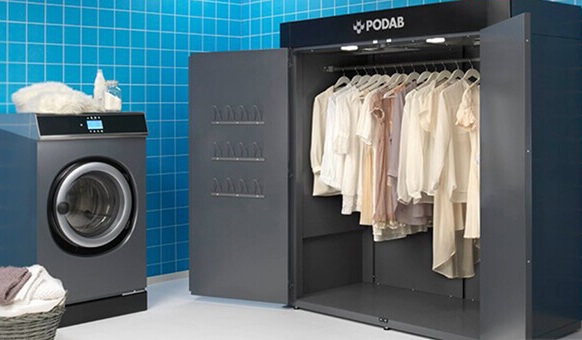

Cabinet-type dryers have no drum, motor, or drive belt. Instead, they incorporate a heating element with a hair dryer, which actively circulates hot air. These units are typically connected to a ventilation system, and the condensate is discharged directly outside without the need for a pump or additional components.

But in our reality, the most common design you'll encounter is the classic "home helper," which consists of the 11 components listed in this section. Housewives are responsible for maintaining these components to prevent the dryer's components from malfunctioning.

How to avoid problems?

It's much easier to prevent household appliances from breaking down than to repair them. Here are some expert recommendations to help extend the lifespan of your appliance.

• If in doubt, please refer to the user manual.
• Do not overload the drum – it is better to divide the drying into two cycles.
• Always consider drying classto prevent overheating and breakage of the drive belt.
• Try not to machine dry clothes that are too damp.
• Dry each type of item separately on the appropriate drying settings.
• Don't forget about the condensate container - empty it from time to time, and also clean it of dust, threads, pieces of fabric, and other debris that could cause a fire if the equipment overheats.

These tips apply to any tumble dryer, regardless of manufacturer. Follow the drying instructions, maintain your machine regularly, and you won't be bothered by error codes anytime soon.
