Dryer error codes in Vyazma

Machines equipped with electronics are excellent at detecting malfunctions, even without user intervention. This is especially true for Vyazma industrial dryers, which can promptly detect system errors and alert the user. This is very convenient, as you can quickly compare the display with the user manual to immediately understand what exactly is wrong. We'll cover the most common malfunctions of these "home helpers" to help you navigate situations where you don't have the manual and need to repair the appliance.

What kind of ciphers might you encounter?

Any error code in the Vyazma dryer indicates a problem with the operation of the device. To understand what exactly went wrong, you should study the decoding of the designation in the official user manual. This is the only way to identify the faulty section of the system.

In rare cases, the error occurs not due to a faulty component, but due to a one-time electronics failure, so this option should not be discounted either.

Due to a possible electronic failure, it's not advisable to immediately call a service center or attempt repairs yourself. First, you need to make sure it's not a one-time issue. What should you do?

• Disconnect the equipment from the power supply.
• Leave it like this for at least 15-20 minutes.
• Connect the unit to electricity.
• Try restarting the previously selected work cycle.

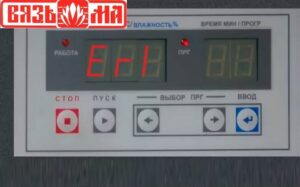

If the error code remains after these steps, the machine truly requires a thorough inspection and repair. Let's look at the symbols on the washing machine's display.

• Er0 is a hardware error related to faulty controller hardware.
• Er1 – reports an invalid crc code due to program corruption.
• Er2 – a program error due to a failure that occurred during operation.
• Er3 – informs the housewife that the drying settings were set incorrectly, or that they were not set at all.
• Er4 – a message indicating that the temperature sensor specified in the program is not connected, or that this element is simply incorrectly programmed.
• Er5 is a damper sensor error, which can occur due to a lack of draft or damage to the sensor itself. Ventilation or commissioning issues are also possible.
• Er6 – problems with the sunroof sensor associated with an open sunroof or damage to the sensor.
• Er7 – this code occurs because for some reason there is no heating, for example, due to a faulty temperature sensor.
• Er8 – overheating error that occurs when the temperature in the system exceeds emergency levels.

It's logical that the Vyazma dryer behaves differently in different situations. The first two errors in this list cause the controller to lock out. If the equipment is affected by errors Er3, Er4, or Er6, drying modes are blocked. If error codes Er2, Er5, and Er6 occur, the dryer completely stops the cycle, and the display shows the corresponding status. Pressing any key resets the status.

Full details on drying equipment issues can be found in the official instructions for the KSM-509H controller, which comes with the Vyazma dryer.

At the same time, if an Er4 error occurs, heating will be disabled during the cycle, and the temperature display on the control panel will begin flashing. This means that all subsequent program stages (drying, blowing, and shaking) will proceed without heating. Finally, if an Er8 error occurs, the "home helper" will stop heating until the temperature drops below the emergency level.

Unable to start the drying process

Different household appliances from different brands have their own common problems. In Vyazma tumble dryers, typical malfunctions include errors in the operation of the temperature sensor, electric motor, heating element, and capacitor. In addition, repair service personnel also note deformation of the drive belt and bearings, as well as severe oxidation of the terminals. Therefore, if your dryer suddenly stops working, even though it was drying clothes just recently without any problems, there are a number of components to check first.

• Temperature sensor. The element itself may not need repair, but rather the contacts may have become disconnected, or the sensor may actually be faulty.
• The engine. It could have failed due to a severe power surge.
• A fuse or a starter switch. These components cannot be repaired if damaged, so you'll have to buy new spare parts.

In addition to the above reasons, you should also carefully examine the terminals. Due to constant exposure to moisture due to high humidity, they may have oxidized. If this is the case, simply cleaning and wiping all contacts dry should be sufficient.

You should also check the condenser to make sure it's not overflowing with debris. This could include lint, threads, wool, and other contaminants that can disrupt heat transfer and prevent moisture from being removed from the chamber. Fixing this problem yourself is very simple—just thoroughly clean the container of any debris.

You should also always check the door for leaks—whether it's tightly closed, which can also prevent the dryer from turning on. The door should be closed not only by the mechanical lock, but also by the electronic unit. Therefore, if you don't hear the distinctive click, you need to press the door harder.

Make sure you have not accidentally activated the delayed start function, which may prevent drying from starting for an extended period of time.

Another common situation is that your home assistant won't turn on because there's no power in the house. Check that the power isn't out, and if there's no problem with the power, try testing the outlet by plugging in another appliance.

The dryer drum does not rotate.

Another annoying situation worth considering is when a Vyazma dryer turns on and responds to commands, but as soon as you start the cycle, instead of drying, the machine will initially do nothing and then display an error code. In this situation, the drum will remain motionless all the time. This may be related to the following:

• the axle on which the dryer drum is mounted has worn out;
• the electric motor broke down;
• the motor capacitor is out of order;
• the drive belt is deformed or torn;

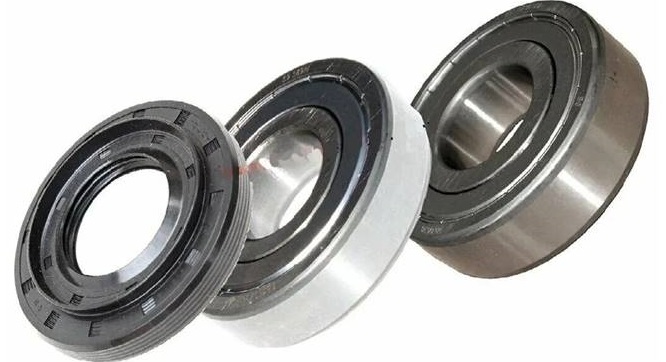

• The drum bearings are worn out.

In this case, repairing the washing machine will only be possible by partially disassembling the appliance and replacing the damaged components. This is easy to do yourself, so there's no need to spend money on calling a repair service. Preventing such breakdowns is even easier.

• Never overload the drum. Read the instructions carefully to find out the maximum load capacity. For example, if your machine is rated for 11 kilograms (25 pounds), don't load it with 12 kilograms (26 pounds) or more. Doing so increases the risk of damage to the drive belt and bearings.
• Always distribute items carefully inside the drum, placing them evenly to prevent the machine from becoming unbalanced.

For added safety, it's also worth purchasing a basic voltage stabilizer. This useful device will protect the appliance from sudden power surges, which often cause Vyazma dryers to malfunction.

The circuit breaker trips and the equipment is de-energized.

Finally, it's worth investigating a common situation where the dryer regularly trips its circuit breaker. To resolve this issue, you need to carefully inspect everything and find the cause of the malfunction. This typically occurs under the following conditions:

• the control board contacts have oxidized;
• the power cord of the washing machine or the socket to which the washing machine is connected is faulty;

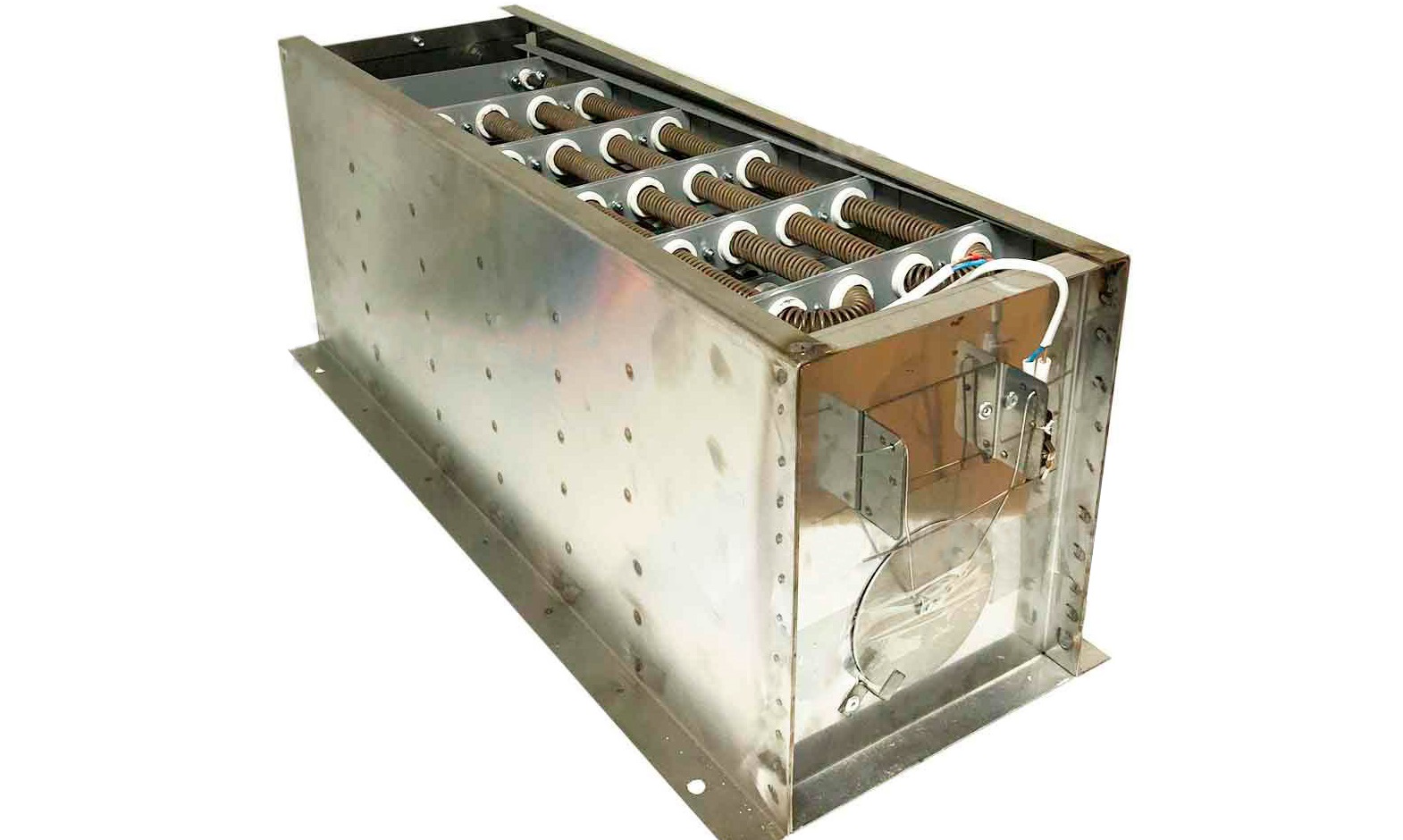

• the heating element short-circuited;
• the motor winding is damaged;
• the power filter is broken;
• a software crash occurred.

Regardless of the suspected cause of the breakdown, first unplug your Vyazma dryer. Next, consult the user manual, which contains a detailed diagram showing the location of all internal components—this will help you quickly identify the suspected faulty component. However, if you're unsure of your abilities or have no experience repairing household appliances, it's best to avoid further damaging the appliance and call a service center immediately.
