Replacing shock absorbers in a Samsung washing machine

Samsung washing machines are valued for their stability and lack of vibration. If you notice unusual vibration, shaking, or bouncing, it's time to check the shock absorbers or dampers. These parts are designed to hold the drum in place and dampen vibrations during washing and spinning.

If the parts fail to perform their intended function, the entire system suffers. Springs and bearings wear out faster, rubber seals become deformed, the drive belt wears out, and the motor becomes loose. The solution is simple: simply replace the shock absorbers in your washing machine as soon as possible. Many people can do this, and we'll explain how below.

We determine the breakdown

First, let's take a look at the shock absorber. It's a cylindrical device with a piston, rubber pads, piston rod, and return spring, which dampen the vibrations from a drum rotating at full speed. Dampers have a similar design, except that the springs are mounted separately and enhance balance. If the stabilizers are faulty, the tank begins to rotate chaotically, deforming itself and breaking surrounding parts.

The main "symptom" of a shock absorber that isn't functioning properly is excessive vibration, loud creaking, and knocking during operation. But before buying new parts, it's important to accurately diagnose the cause of the unpleasant noises and vibrations. To do this, manually check its functionality:

Important! Before performing any maintenance, unplug the washing machine, turn off the water supply, and disconnect it from the sewer system.

1. We unscrew the screws and remove the top cover.

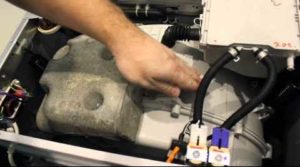

2. We press with our hand on the top of the tank, initiating a downward movement of 5-7 centimeters.
3. We sharply lower our hand.
4. We watch the drum.

If it returns to its original position and remains stable, the shock absorbers and dampers are in perfect working order. If the tank oscillates like a pendulum, replacement is essential. To avoid wasting money and time on a service call, we suggest adjusting the shock absorbers yourself. Step-by-step instructions are provided below.

Let's get started with the repairs

The first step is purchasing the right parts. Both universal and original shock absorbers are suitable for Samsung washing machines, and it's best to choose the correct model based on your machine. The best option is to remove the broken parts and take them to the store. If you cannot find spare parts that meet your specifications, it is recommended that you take your time and order the required option online or through a service center. Samsung.

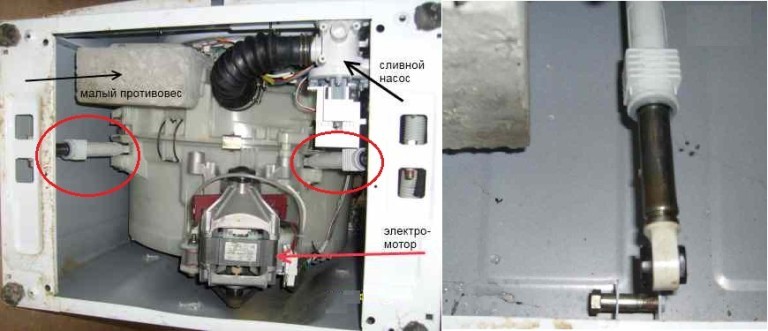

There are two types of shock absorbers on the market: open and closed. Open shock absorbers are cheaper, but they allow water to enter, leading to rust, wear of the gasket and seat, and ultimately, permanent failure. Closed shock absorbers are more watertight and durable, which impacts their price. Once a new pair has been selected, you can begin disassembling and installing them. To access the dampers, you need to:

1. Drain all water through a waste filter.
2. Place the car on its side, ensuring free access to the bottom.
3. Unscrew the bottom cover.
4. Find two white or black pins that fit the tank (they are the shock absorbers).
5. Take a 13 mm wrench and unscrew the lower and upper bolts.
6. Remove faulty shock absorbers.


Important! Repairing worn dampers is nearly impossible.

7. Install new parts.
8. Return the bottom to its place.
9. Connect the machine.

It's easy to verify the repair was done correctly and the fastening is secure: simply test the parts. Remove the top cover and press on the drum (see "Identifying the Fault") or run the machine through a spin cycle or quick wash. The latter will pinpoint the problem more accurately. If the washing machine stops making suspicious noises and vibrating excessively, the replacement was successful. If the initial issue recurs, tighten the bolts more firmly.

To remove the old dampers and install new ones, all you need is a screwdriver and a desire to fix a vibrating car. It's easy if you follow the instructions above. The main thing is to choose the shock absorbers carefully and securely fasten all fasteners.
