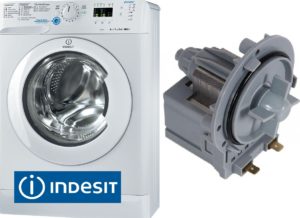

Replacing the drain pump in an Indesit washing machine

It's a very frustrating situation when you discover that your washing machine has finished its cycle with all the water still inside. This is a sign of a problem with the system. In fact, you can diagnose the cause of this problem yourself. It could, of course, be as simple as a clog. However, if the pump is faulty, you'll need to replace the drain pump in your Indesit washing machine. Follow the instructions below and successfully complete the repair yourself.

Identification of the fault

First, let's determine the cause of your washing machine's failure to drain. Most often, it's a pump issue. To diagnose this, let's look at how the drain pump works and what's wrong with it.

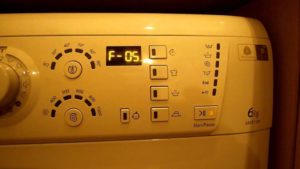

During any washing machine cycle, used water must be pumped out before the next stage. This is accomplished by the pump, which receives a signal from the control module. It pumps water into the drain pipe and from there into the sewer. Naturally, if this doesn't happen, all the liquid remains in the drum. The Indesit washing machine is equipped with a self-diagnostic system. In models with a display, you will see error F05, which indicates a pump malfunction.

If your machine does not have a screen, then a combination of lights will indicate the problem: Super wash + Extra rinse + Soak + Spin

If the self-diagnosis doesn't indicate anything, it's worth monitoring the wash cycle. For example, the water may drain, but very slowly. Check the drain pump; it's still possible to prevent a major breakdown. Other common symptoms include:

• the machine finished washing, but water remained in the tank;
• the water does not drain and the set program is not completed;
• the water goes away, but the washing machine is making a loud noise.

There could be several possible causes for this problem: a clogged drain pump or its components, or a faulty electrical component. Don't ignore trivial issues related to a clogged drain hose, trap, or sewer line. In any case, for an accurate diagnosis, you need to look inside the unit.

Pump replacement instructions

Before attempting any DIY repairs, please ensure all safety precautions are followed. First, unplug the washing machine. Then, turn off the water supply. The drum is likely full of water and you'll need to drain it. Prepare a container for used water and rags in advance to avoid flooding your neighbors. Unscrew the filter cap and try to carefully drain all the liquid.

Pull the machine out so that it's easily accessible from all sides. Gather all the necessary tools and a large cloth to rest the washing machine on. Only after these preparations are complete should you remove the trim panel to access the pump.

Be prepared for the washing machine to be quite heavy and difficult to lay on its side. You can make the job easier by removing the bottom of the machine, if your model has one. This can be accomplished by removing the screws.

1. First, check the drain pipe. You can feel the blockage there.
2. Then carefully remove it from the pump by loosening the clamp.
3. You'll find retaining screws near the filter cap. Remove them. Disconnect the wiring and remove the drain pump.

The easiest way to clean the pipe is by running it under running water. However, if you inspect it and find no signs of blockage, this isn't necessary. Let's move on to further inspection.

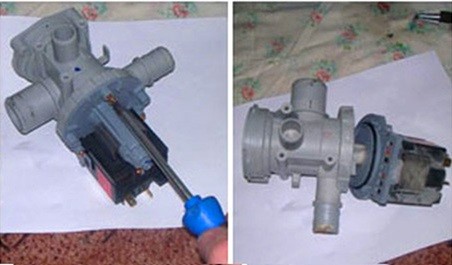

To do this, unscrew the fastening screws and remove the pump from the housing. Now, inspect the impeller. Threads, strings, or hair tangled around it can often cause problems. In this case, simply remove the debris. If you removed the pump from your Indesit machine and diagnosed it as faulty, you'll need to buy a new one and replace it.

Are you worried you won't be able to find the right pump yourself? Here's what you can do: take the faulty part and show it to a specialist store. Or simply tell the salesperson your washing machine model. We're confident that purchasing a new part won't cause any problems, and your washing machine, after a quality repair, will serve you well for many years to come.
