Bosch washing machine door repair

Bosch washing machine door repair Many washing machines have one weak point: the door handle. That's why users of these appliances often have to pay for door repairs on their Bosch washing machines. However, it's not always necessary to call a service center technician to restore your "home helper." To save money, you can disassemble the machine door yourself and replace the damaged plastic element. We'll show you how to do it correctly at home.

Unlocking the door

Most often, the door handle fails after the user has roughly attempted to open the appliance to load or remove clothes. In this situation, the handle may click ineffectively and not open the door of the front-loading washing machine. If this happens, there's no point in trying to open the device again, as this will only make the situation worse. In this case, you can try the following:

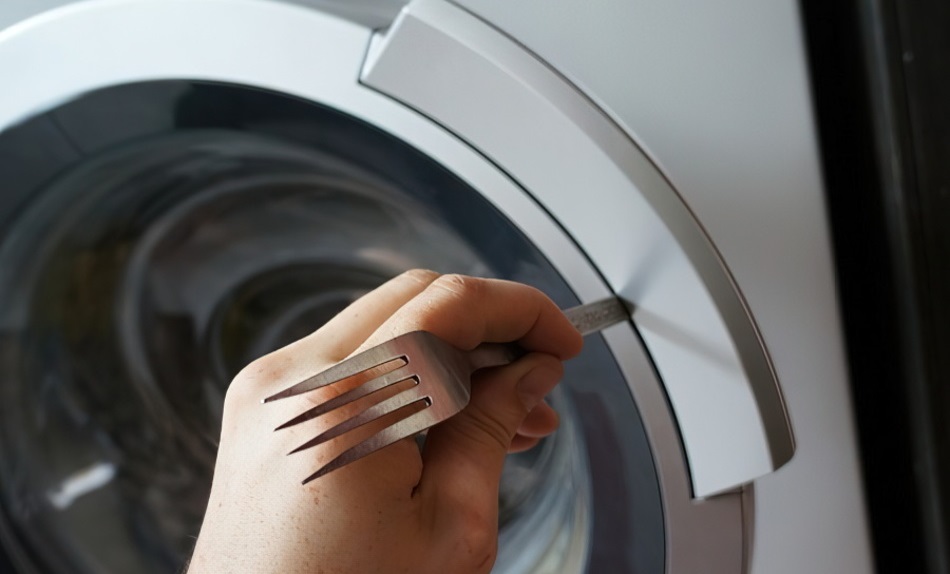

take a regular tablespoon and use it to open the door of the washing machine;
find the middle of the handle by eye;
insert the handle of the cutlery into the gap between the door of the machine and the body directly in the center of the handle;
Press lightly on the spoon.

Never use brute force, as this can cause further damage to your appliance.

These steps should open the door, giving you full access to the system's interior. If that doesn't work, try sliding a piece of cutlery up or down the gap slightly, then pushing it again. This will allow you to eventually find the lock to open the door. You can also open the door using the emergency release lever, which is located on the bottom of the washing machine, near the drain filter. Unfortunately, not every model has this feature, so don't worry if you can't find it.

Experts recommend using only these two methods if the door handle is broken, making the machine impossible to open. Any other unlocking methods could cause further damage, so it's best not to take unnecessary risks.

We get to the door mechanism

Once the door is open, you can easily disassemble it to access the damaged locking mechanism. While this isn't easy to do by hand, removing the broken handle is impossible without this step. Don't even try to repair the plastic element; it can only be replaced. A new spare part can be purchased at a regular retail store or online.

Take the damaged part with you to the store as an example, or write down the model and serial number of the washing machine to avoid buying the wrong handle.

Once you've purchased the spare part and are ready to begin repairs, be sure to disconnect the equipment from the power supply and water supply. What should you do next?

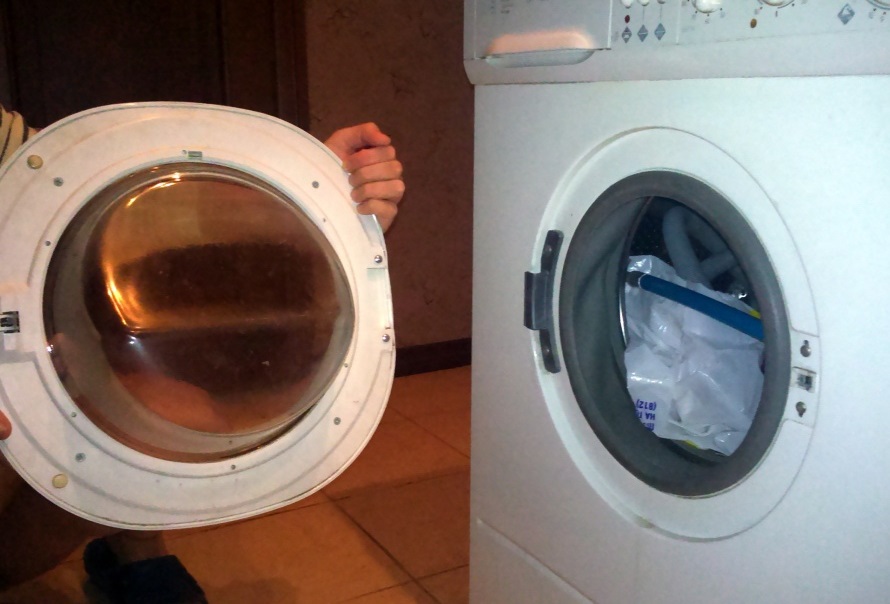

Remove the retaining bolts so that you can then carefully lift the door off its hinges.
Place the door on a flat surface to make it easy to work with.
Remove the retaining bolts that hold the two halves of the CM door together.
Using a thin screwdriver or similar tool, pry up the latches located around the perimeter of the element.
Separate the two halves and set the top part with the glass aside.

All further manipulations must be performed on the inside of the hatch, where the locking mechanism is located. Using the same thin screwdriver, carefully push in the metal rod that holds the mechanism in place. After removing the pin, you'll need to remove the remaining parts of the locking element.

To install the handle correctly, you need to understand how it works. It consists of just four components.

Plastic base.
The pin that holds the mechanism.
Springs.
Latch tongue.

Once you've disassembled the damaged element, all you have to do is install a new replacement part. Even if only the spring or latch is faulty, it's still best to replace the entire locking mechanism.

Installing a new handle

Now let's move on to properly installing the handle—a process where it's also important to avoid mistakes to ensure long-lasting service. Read the instructions carefully and follow them step by step.

Replace the spring.
Place the retainer on the side of the coil.
While holding the lock, install the pin by pushing it into the first eye of the spring, but not moving it further yet.
Place the handle on the locking pin and then push the pin all the way in.

Once installation is complete, assemble the door halves, first installing the glass under the handle. Replace all the fasteners holding the door together. After assembly, carefully check the locking mechanism. If the handle functions properly, the hatch door can be reinstalled, securing it with the hinges and retaining bolts.

How else does a Bosch washing machine door break?

Even someone with no experience repairing household appliances can figure out the locking mechanism of a Bosch washing machine. Moreover, the skill of disassembling the door of an automatic washing machine can be useful not only in the event of a damaged lock. What else can happen?

The door glass will crack.
The latch will be damaged.
Sag the loop.
The hinge support fails.

Housewives also often encounter damage to the door locking system, which requires disassembling the door to repair. However, if you suspect the hatch locking device, it is better not to try to check and repair it yourself. It would be safer to entrust this work to a professional.
