Candy dishwasher repair
Unfortunately, Candy dishwashers have been breaking records for defects for many years now. Only Indesit dishwashers end up in service centers more often. However, these appliances don't break down indiscriminately. There are a few weak parts that regularly cause problems. Today, we'll discuss Candy dishwasher repair, focusing on the most common issues.
Common defects
Standard, narrow, compact Candy dishwashers have a similar design and similar problems. Anything can potentially break down in these appliances, but the most common components are:
- drain pump;
- inlet valve;
- heating element;

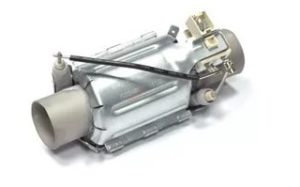

Often, the Candy dishwasher's flow-through heater breaks down, causing a current leak to the casing. If you feel a shock when touching any metal parts of the casing, immediately disconnect the power to the machine.
- thermistor;
- leak detection sensor.
When diagnosing your dishwasher for any defects, remember that in all cases, the problem could lie in the control module. Sometimes semiconductor components fail, and sometimes the firmware simply crashes. In any case, if your investigation reveals that the problem lies in the electronics, don't bother fixing it yourself; contact a specialist. If you damage the module, a replacement will cost a third or even half the price of a new machine, depending on the Candy model.

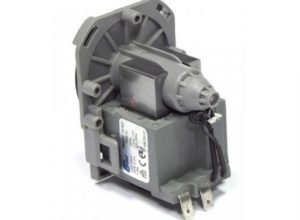

Problem with drain pump
The pump can also fail in other dishwashers. For example, Bosch dishwashers have a rather unique impeller that often gets tangled with hair and other debris, eventually clogging it. This rarely causes the pump to fail, but it won't work until cleaned. In Candy dishwashers, the pump usually stops working permanently. Just listen to it while draining and you can tell with 90% certainty when it's about to give up.
A clear sign of pump failure is wastewater that remains in the machine's system and isn't being pumped out. First, ensure the waste filter and drain hose are clear of any blockages, then do the following:
- unscrew and pull off the side wall of the dishwasher;
- unscrew the narrow front panel, which is located under the machine door;
- Having gained access to the pump, we remove it, disconnecting the wiring;
- We check the drain pump ourselves using a multimeter switched to ohmmeter mode;
- We throw away the faulty pump and put a new one in its place.
Perhaps if the manufacturer had thought to install a fuse on the pump, it would have lasted at least twice as long; as it is, its average lifespan is three years. Sad, but true. By the way, the Candy machine's self-diagnosis system identifies a problem with the pump with the E2 code.
The water is not pouring
Let's say my Candy dishwasher can't fill with water and start the wash cycle. This is immediately noticeable. Firstly, the inlet valve will click loudly, and secondly, the dishwasher will almost immediately display an E1 error. How can I check this?
- Just as with the pump, we disassemble the dishwasher.
- We find the fill valve.
Finding the inlet valve isn't difficult, as the inlet hose is attached to it. Look at where the inlet hose connects to the machine body, and you'll find the part you're looking for.
- We remove the wires from the valve coil and check its contacts with a multimeter.
- Values close to zero indicate that the part is broken and needs to be replaced.
- We unscrew the old valve and put an identical new one in its place.
On average, the inlet valve on a Candy dishwasher lasts 4 years, but manufacturing defects cannot be ruled out. Furthermore, frequent power surges in the Russian electrical grid are not conducive to the longevity of the dishwasher's components, so be on the lookout. Experienced technicians recommend installing dishwasher stabilizersThey really do help, but you also need to consider the cost of these gadgets. While a Candy dishwasher itself can cost $315, a good stabilizer will cost $240. Although it's worth noting that two or even three appliances are usually connected to a single stabilizer.
The water remains cold
If the water in your dishwasher doesn't heat up at all or heats up at a rate of "a teaspoon per hour," you should check the thermistor and the flow heater. Malfunctions in these components are common, but don't throw out the power supply wiring and control module. By removing the left side panel of the machine, you'll gain easy access to the thermistor and heating element. For safety, disconnect the power to the machine, turn off the water supply, and then perform any maintenance on the machine.
First, remove the thermistor and check it with a multimeter, then check the wiring for this component. If everything is OK, you can move on to the heating element. First, check the heater resistance, and then check for breakdown.The only way to fix a broken heating element is to replace the part, as burnt-out heaters cannot be repaired. You need to loosen the clamps, remove the old heater, remembering to remember the location of the wires, then you need to put the new part in its place, carefully tighten the clamps and return the wires to their place.
The water leak sensor was triggered
Water leaks round out the list of common problems. Clamps and rubber seals are the bane of Candy dishwashers. It's a good thing there's a leak sensor, otherwise the neighbors downstairs would have to say hello. The leak sensor is triggered when the tray partially fills with water. It shuts off the water supply to the dishwasher and prevents it from operating, saving you and your neighbors from flooding.
In some cases, the sensor triggers spontaneously, without water, but more often, water actually appears in the tray. What should I do?
- The machine needs to be turned off and disassembled.
- Check the tray; if there is water there, you need to drain it by tilting the machine body on its side.
- Check pipes, hoses, rubber gaskets for leaks.
- After eliminating the leak, you need to return the valve float to its working position and check the machine for functionality.
So, we've covered the main defects of the Candy dishwasher. Each issue has numerous nuances, which are impossible to discuss in a single article. Ask your questions on our forum or in the comments below; our specialists will be happy to answer them. Happy repairing!
Interesting:
5 reader comments
Add a comment
Headings
Washing machine repair
For buyers
For users
Dishwasher
Are the parts of the Candy Cdcf6 b and Candy Cdcf 6 -07 dishwashers interchangeable?
Good afternoon. We bought a dishwasher from Citylink. Delivery was fast, and we have no complaints about the components or delivery. But the build quality is terrible. Less than six months later, it started leaking terribly. I turned the dishwasher over, and then, a miracle: a part was missing from the hose connecting the pump. The factory had it glued on tight with a clamp. I have a photo, so I can tell it's missing. I don't know what to do. I can't even find parts like this online.
Hello. I have a Candy CDCF 6. When turned on, the wash mode selection LEDs flash alternately. All pumps and sensors are working properly.
Hello. I have a Candy CDCP6/E-07. The machine won't turn on. Perhaps the fuse has blown or the circuit breaker has tripped. Where are they located?
When Candy is turned on and filling with water, the hose comes off the pump, even though it is clamped.
