Ardo washing machine repair

Any household appliance eventually breaks down. In some cases, it's due to physical wear and tear of parts and components, in others, improper connection and operation, and in others, defects. This article will focus on Ardo washing machines, examining their typical breakdowns, the causes of such breakdowns, and how to repair them yourself.

Typical breakdowns and their causes

Users recognize a washing machine breakdown based on specific symptoms. Only by studying these symptoms can they identify the specific unit's problem. Therefore, we'll begin by listing the most common symptoms.

• The machine has stopped draining. This can happen for several reasons, the main one being a clogged drainage system, which includes the drain pipe, drain hose, and pump. In very rare cases, water does not drain due to a broken water level sensor.
• The machine does not heat the water, especially when washing at 60-90⁰C. The cause of this malfunction is a faulty heating element, which burns out due to limescale and scale deposits. However, it's also possible that the heating element has reached the end of its service life.

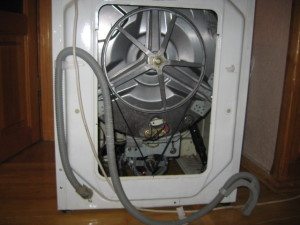

• The drum in my washing machine isn't spinning; it's stuck in place. In Ardo washing machines, the drum is rotated by a drive belt, and if the belt breaks or slips off the pulley, the machine will stop. This problem can be solved. replacing the drive belt.
• My washing machine is making unusual noises, like knocking or rattling. If this noise is heard when the machine is turned off, the cause is definitely faulty bearings. Another possible cause of the rattling noise could be a foreign object lodged in the drum.
• Is water leaking under your washing machine? The cause should be found in the drain filter or hoses. In the worst case, the seals and bearings will need to be replaced.
• If the programs are getting lost or the machine doesn't turn on at all, then the cause is a faulty electronic board.

Before panicking and calling a repairman, pay close attention to the symptoms. You might be able to find the cause yourself or even repair it yourself.

Common errors: their codes

In many washing machines, the manufacturer has programmed error codes into the microprocessor, which appear on the display when a malfunction occurs. Here are some examples of common error codes. All codes for any Ardo model can be found in the manual..

• E00 or E01 – no water drain due to clogged drain filter.
• E02 – incorrect drainage during spinning, the position of the drain hose is incorrect.
• E03 or F4 – drain time exceeded, drain pump failure.
• F2 – problems with the temperature sensor, heating element or control board.
• F5 – self-draining, incorrect connection of hoses.
• F13 or F14 – malfunction in the control module.

We remove blockages and replace the pump.

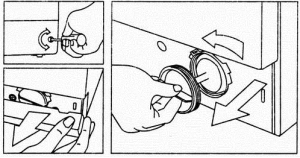

Once we've determined the cause of the problem, we decide whether to call a repairman or handle the repairs ourselves. In some situations, it's truly worth saving money and instead tackling the repairs yourself. For example, you can clear any blockages that may have occurred. The drain filter is where the most debris accumulates, so cleaning it is a minor repair and can cost around $6. However, it's actually quite simple:

• Open the small door at the bottom of the front of the machine or remove the bottom panel.
• Then place a large, absorbent cloth on the floor in the filter area.
• Unscrew the valve counterclockwise.
• You pull the filter towards you.
• Rinse it well with water, remove hair and other debris.
• Screw the filter back in.

The problem is that Debris can clog not only the filter, but also the drain hose, pipes, and drain pump.To access them, you'll have to open the machine. This is classified as a moderately complex repair, with prices starting at $12. If a faulty part is discovered during disassembly, you'll have to purchase another one.

If a foreign object gets stuck in the drum, such as a bra underwire, you'll have to completely disassemble the machine. This type of repair is considered complex and will cost at least $20. If you're wondering how to remove the object from the machine, you can read this article about... How to remove a bra underwire from a washing machine.

You can replace or clean the pump yourself if you have the free time and skills to work with simple tools.

In the Ardo washing machine, the pump can be accessed from the bottom., it's either missing, or the plastic strip can be easily removed. The entire procedure and video instructions are available in the article on our website about how clean the drain pump in the washing machine.

To clean the drain hose, pull one end out of the sewer pipe and disconnect the other from the pump. Then, clean the hose using a flexible cable with a small brush at the end. Rinse the hose under running water, dry it, and reconnect it.

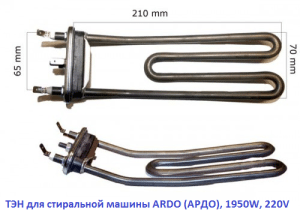

Replacing the heating element

The heating element in washing machines often fails. Diagnosing the problem is simple: wash your items in water heated to 60°C.⁰Place your hand on the drum hatch. If it's cold, that means one thing: the heating element is burned out and needs to be replaced. Replacing the heating element is a moderately complex repair and will cost up to $20 plus the cost of the heating element. But don't rush, because accessing the heating element isn't difficult and can be done through the back cover of the case. To do this:

1. We disconnect the machine from the mains, disconnect from the water supply and sewerage, we deploy it so that it is convenient to work.
2. We unscrew the screws around the perimeter of the machine that hold the cover.
3. We find the contacts and wires coming from the heating element under the tank, remove the terminals and sensors.
4. We unscrew the bolt that secures the heating element.
5. Carefully, using loosening movements, pull the heating element towards yourself; you can pry the heating element with a screwdriver.
6. We clean the heating element holder from debris.
7. We take the original heating element for the Ardo machine and insert it into the heating element holder until the sealing rubber fits completely into place.
8. We tighten the bolt and connect all the terminals.
9. We assemble the car.

Please note! Regularly descaling your washing machine will extend the life of the heating element, but relying on advertised water softeners is not recommended.

How to repair electronics?

Replacing the electronic module is also straightforward and falls into the mid-range category. However, this is only true if you're absolutely certain the entire module will need to be replaced. But In some situations, the module can be repaired by replacing individual components. This is especially important, as the module itself is quite expensive; in some models, it can cost a third of the entire machine. It's not uncommon for people to forego such repairs and buy a new automatic machine.

Working with electronics is a specialized skill, requiring not only tool skills but also specialized knowledge. Therefore, in such situations, it's best to consult a specialist who can accurately diagnose the problem and replace the component correctly.

Please note! There have been cases where some DIYers have replaced the control module themselves, reconnecting all the terminals and sensors, only to have the new module burn out.

Replacing bearings

According to experts, replacing bearings and seals in Ardo washing machines is the most difficult repair. This is because it requires almost complete disassembly of the machine and the drum itself, and the bearings themselves are difficult to remove. Special tools, patience, and skill may be required. In such a situation, taking the machine to a professional is much more reasonable than repairing it in your apartment, where there's not much room to maneuver.

For those who still want to save money or gain experience repairing washing machines, we suggest watching a detailed video on replacing bearings.

Therefore, only after assessing the complexity of the repair and your actual abilities should you begin troubleshooting the problem yourself. Sometimes it's better to pay a specialist than to pay twice for a failed repair attempt.
