Electrolux Washing Machine Repair
Before attempting to repair an Electrolux washing machine, especially on your own, you need to research a wealth of information regarding the specific design features of your particular model. Then, you need to correctly identify the cause of the malfunction and then troubleshoot it without making the problem worse. Like any home appliance, Electrolux washing machines have a number of technical weaknesses that ultimately lead to common breakdowns. In this research, we'll explore the symptoms and causes of breakdowns, as well as explain how to fix them.
"Symptoms" of breakdowns of cars of this brand
By defective Electrolux washing machine symptoms, we mean any external manifestation of a malfunction, such as unusual noises during operation, excessively long operation, failure to complete a certain stage of the washing program, and so on. These symptoms are what prompt the user to take action (call a repairman or investigate the cause themselves).
But the problem is that some problems occur before symptoms appear and show almost no signs. For example, wearing rubber seals don't show any signs until a leak occurs. But let's return to the typical symptoms of Electrolux washing machine malfunctions. Let's first list them, and then, in the following sections, we'll delve into their detailed explanation.
- The machine washes in cold water, without heating it, even if the program sets otherwise.
- The machine cannot fill with water.
- The washing machine cannot drain the waste water.
- The machine does not switch to the rinse cycle or skips it without rinsing the laundry.
- The washing machine does not spin.
- The machine cannot pick up powder from the drawer and washes without it.
- The washing machine does not turn on or turns on intermittently.
- When the machine is turned on, the circuit breaker trips almost immediately.
Please note! These symptoms are more common in Electrolux washing machines than others, which is why we're covering them, but in reality, there are many more.
The machine does not fill or drain water.
The Electrolux washing machine's wash cycle requires water to be filled and drained throughout the entire program. One portion of water is needed for the wash cycle, another for the rinse cycle. It also needs to drain water after the spin cycle, and if there's a drying cycle, after that as well. But what happens if the machine can't fill the drum? The machine won't be able to run the program and will freeze.
In this and many other situations, the manufacturer has taken precautions by providing an error detection system. If a malfunction occurs, the washing machine will display a message. error code, which can be deciphered using the user manual and understand what exactly is broken. In particular If the machine does not fill with water, error E11 should appear on the screen.
So, if your Electrolux washing machine isn't filling with water, there could be at least three possible reasons:
- the fill valve does not work;
- no water supply;
- The water filter installed in front or on the inlet hose is heavily clogged.
What can you do in such a situation yourself? Start with the simplest thing: check to see if there's water in the faucet; it might not be a malfunction at all. Next, check to see if there's a water filter installed near or on the inlet hose. If so, shut off the water to the riser pipes, then carefully unscrew the filter and clean it. Some brands of water filters cannot be cleaned, in which case you will need to buy a new filter and install it in place of the old one..
Please note! Flow-through filters are great because they prevent dirt from getting into the machine and causing clogs, but they do need to be changed regularly. If you forget, the filter can become so clogged with dirt that it stops the water supply.

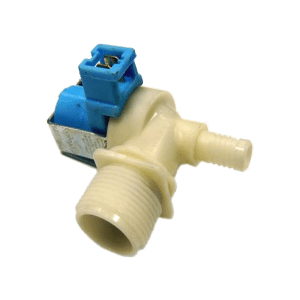

If the problem is not in the water supply or the filter, then you need to check the intake valveTo perform this test, you'll need to use a multimeter. Some people have trouble using this device. But once you figure it out, the rest is easy.
It's possible that the machine can fill with water but not drain. In this case, the wash cycle will activate and complete, but the rinse cycle will never start because the wastewater remains in the drum. In this case, the problem is either with the drain pump or a clogged drain hose. Replace the drain pump It's not difficult to do it yourself; just follow the instructions provided by the experts. Cleaning the drain hose is also quite simple, so let's start with that.
- Drain the water from the Electrolux washing machine tank through the small emergency drain hose located near the drain filter in the front lower right corner of the machine body.
- Disconnect the drain hose from the machine body and from the drain pipe or siphon.
- Rinse the hose thoroughly under running water. If you have a cleaning cable, use it; if not, you can clear the blockage with a piece of stiff wire.
- Put the hose back in place and test the machine.
The machine does not rinse or spin or does not take powder
After 5-7 years of use, Electrolux washing machines start to perform worse. When you start looking for the cause, it turns out that almost all the detergent you pour into the dispenser remains there. So, the washing process is essentially done without any detergent. What's the problem?
When filling with water for washing, the washing machine must pass a stream through the powder compartment so that the powder and water go into the tank. Next to the cuvette there is a valve that must open to allow water to enter the powder compartment. So, if the valve is worn out and clogged with dirt and limescale, it may simply not open. What should I do?
- Remove the detergent drawer.
- Remove the top wall of the washing machine.
- At the base of the powder tray niche, locate the valve and inspect it.
- If the valve is worn out, it needs to be replaced with a new one; if cleaning is possible, then do it.
- Replace the lid, insert the powder drawer and test the machine.
If the washing machine does not rinse or spin water, even when a separate rinse program is set, this may be a signal indicating a breakdown of the control board. Control board repair It's almost impossible to do it yourself, especially if you don't have the skills to repair electronics - contact a specialist.
The machine does not turn on or the circuit breaker trips when it is turned on
If you can't start your washing machine, let alone turn it on at all, the problem likely lies with either the power button or the power cable. In either case, to check both possibilities, you'll need to use a multimeter to measure the resistance at the button contacts and the power cable wires. To access the power button, follow these steps.
- Remove the powder tray; in the niche on the right side there will be a fastening element holding the instrument panel; it needs to be unscrewed.
- We unscrew the other bolts holding the panel and remove it.
- We disconnect the plastic holders that secure the front panel to the board.
- We find the contacts of the on/off button and measure the resistance.
- If the problem is in the contacts, they will need to be cleaned and soldered, and then the machine will need to be reassembled in reverse order.

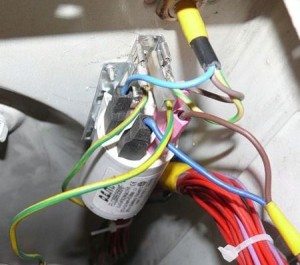

Problems with the power cord can also occur in your Electrolux washing machine. Most often, The contacts at the base of the cable become loose, causing the machine to either not receive power or receive it intermittently, which is even more dangerous, as it can cause a short circuit in the control board. How do I test a power cord? The easiest way is to connect the multimeter probes to the prongs of the power cord plug. If you detect a fault, you'll need to access the connection between the power cord and the surge protector. How do I do this?
- We remove the back cover of the washing machine.
- There will be a protective gasket at the base of the power cord; disconnect it.
- We check the reliability of the connection between the contacts of the network filter and the wires of the network cable.
- If the wires were connected securely, then we disconnect the wire and check it for breakdown using a multimeter.
- The broken wire needs to be replaced. It is best to buy a new original network cable and install it in place of the old one.
- We assemble the machine and check its operation.
Important! When working with the power cable, never insert the plug into a power outlet to avoid electric shock.
It's possible that the washing machine starts and the program is set, but as soon as you start the program and the electrical circuit becomes overloaded, the circuit breaker trips and the machine shuts off. In this case, you should immediately contact a professional electrician, as the problem is most likely in the electrical circuit. Perhaps the socket is faulty or the wire cross-section is not rated for such a load. In short, remember one thing: it is strictly forbidden to operate the machine with such a malfunction!
The machine does not heat water.

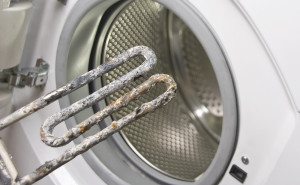

Another common problem with Electrolux washing machines is a faulty heating element. It's quite difficult to confuse this problem with any other, as it's very noticeable. Replacing the heating element Washing a washing machine isn't the most difficult task, and it's entirely possible to do it yourself. The key is to do everything carefully and follow expert advice.
Before changing the heating element, don't forget to check it with a multimeter, starting with the temperature sensor., it's possible the problem isn't with it at all, but with the control board. This happens rarely, but it's definitely a possibility.
In conclusion, it's worth noting that in many cases, Electrolux washing machine repairs can be done by yourself, especially if you're handy. While in some cases, it's certainly better to hire a professional and pay a hefty fee, you can often do everything yourself and save a ton of money.
Interesting:
11 reader comments
Add a comment
Headings
Washing machine repair
For buyers
For users
Dishwasher
Please tell me, my spin cycle won't turn off and it spins constantly. I've already used the Electrolux 1064 model three times.
After turning on the machine, water doesn't flow into the drum, but directly into the drain. This continues for a couple of minutes, then begins to collect in the drum.
The display shows 0.14 and 1000 rpm. How do I start the machine? The wash time and temperature are not displayed when I set the program.
The mechanical controller runs through the program for 30 seconds. And not a single command is executed.
I have a problem: the water supply tank is clogged. Could you please tell me how to remove it on my Electrolux WHS 1046? I removed the lid and folded back the control panel, but I can't get the tank out—it's pinched by the frame.
The washing machine finished washing and won't open. It's showing error E40.
The problem is this: The washing machine is washing and water is leaking from underneath it (at the bottom at the back). The machine is an EWS 126510 w.
Possible wear of the hoses
The machine rinses the detergent into the drum at the beginning of the program, washes briefly, then drains the water and detergent. It then continues washing without detergent. Model ews106540w.
Electrolux EW 1010 F washing machine. The washing program selection does not work.
How to drain the tray?
