A properly functioning bearing assembly will wash your washing machine quieter and more smoothly. However, if the bearings are worn, damaged, or begin to deteriorate, the picture will change dramatically: the washing machine will bounce, clank, grind, and knock. In this case, replacing the parts will be necessary. Before starting repairs, it's worth finding out how many bearings are in your washing machine and how to choose the right replacement. We'll reveal all the answers below.
Number of elements
In both top-loading and front-loading washing machines, the bearing assembly is considered one of the core mechanisms. It ensures the drum spins, affecting the quality of the wash and spin cycle. The location of the bearings varies depending on the model and manufacturer: in the crosspiece on the rear or side of the drum.

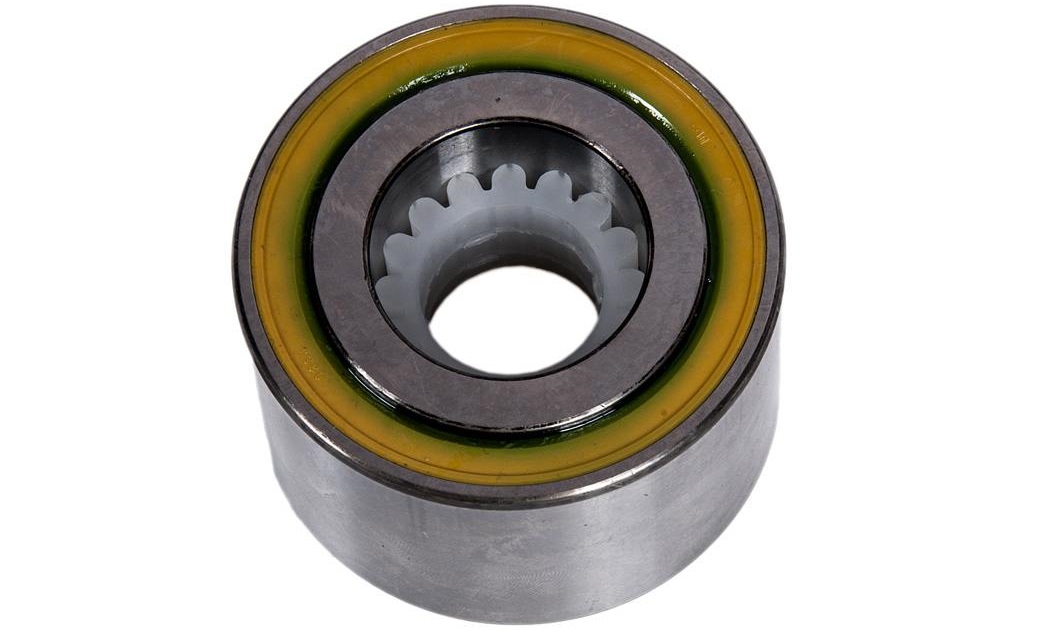

The unit consists of a seal and bearings. Typically, there are two bearing elements: a larger-diameter outer race that bears the main load, and a smaller inner race. However, on some modern models from LG and Samsung, the mechanism consists solely of a reinforced double-row mono-bearing, which, thanks to an improved design, can do the work of two.
Plastic bearings are considered more reliable than metal ones: they are less susceptible to wear and last several times longer.
Bearings also differ in the material they are made from and are divided into:
metal;
plastic.
Metal bearings are in high demand, as many consumers distrust plastic, relying on the reliability and strength of metal. But the reality is quite different: plastic bearing races last longer. The secret lies in the fact that these "rings" are composed of two layers: a steel inner layer and a plastic outer layer. This increases the wear resistance of the part, allowing it to withstand significant loads without failure. Incidentally, these systems are the preferred choice of well-known, proven brands such as LG, Bosch, Indesit, and Samsung.
Number of parts on different machines
It's easy to determine the number of bearings in your washing machine. The most reliable way is to consult the manufacturer's instructions. The user manual supplied with your specific washing machine, as well as any machine from the same manufacturer, will work. You can also consult with salespeople at appliance stores or service center technicians.
The number and size of bearings are indicated in the factory instructions.

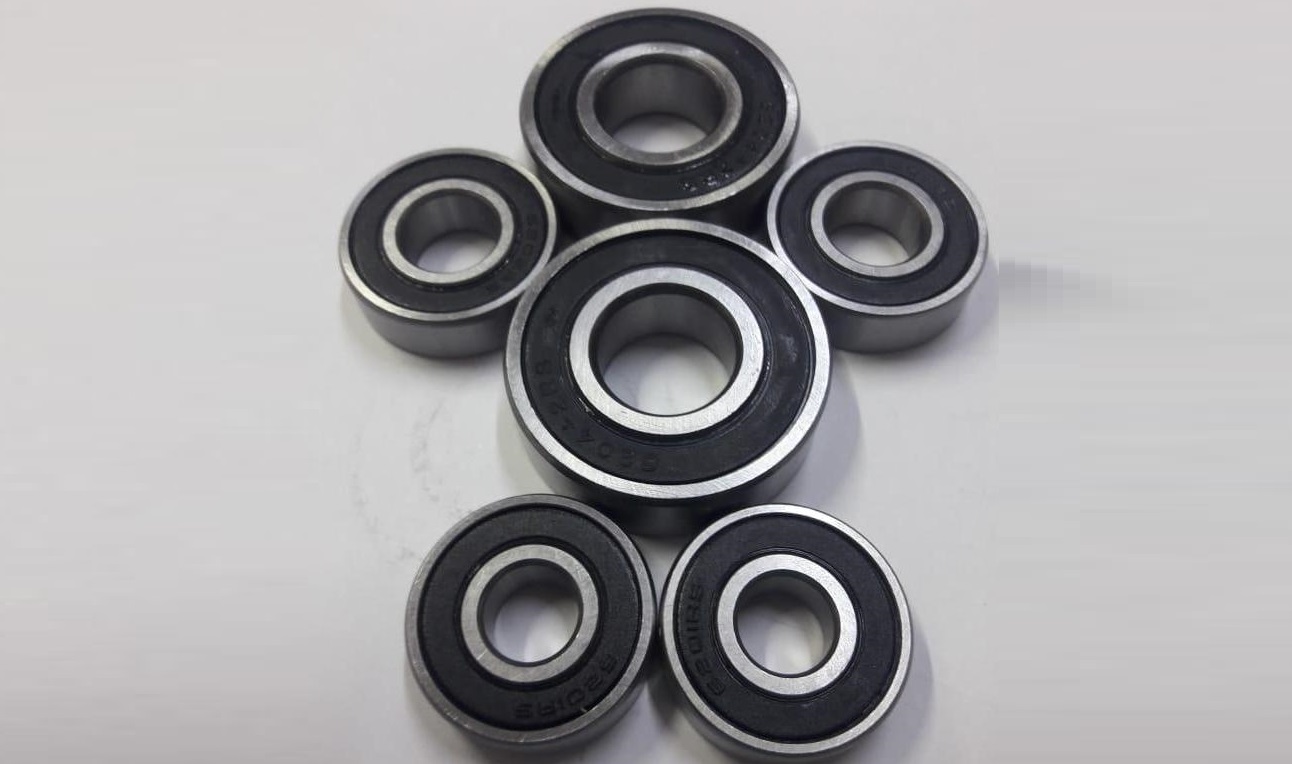

When counting bearings, it's best to consider the washing machine manufacturer. A brief overview of the most popular brands will help with the calculations.
Indesit. This unit comes with two seals and bearings. Suitable dimensions are 20x47x14 or 25x52x15 mm.
LG. Direct-drive machines from this brand are equipped with bearings with serial numbers 6204-6206.
Atlant. Original magazines have serial numbers 6204-6206.
Samsung. Samsung bearings are marked 203-204.
Bosch. Bearing sizes vary depending on the model. Most will fit either 6203 or 6306.
Ariston. You need to look for clips with serial numbers from 6203 to 6206.
Zanussi. When repairing the bearing assembly, components marked 6203-6206 are used.
Typically, the number of bearings is determined when a unit requires replacement. It's important to understand that the most common cause of failure is a damaged oil seal—the rubber seal that protects the bearing from moisture and friction. If the seal is damaged or torn, water will penetrate the universal joint, washing out the lubricant, and causing the system to malfunction. In any case, it's essential to replace the parts as soon as possible, otherwise the drum and tank will be damaged, significantly increasing the cost of repairs.
How to avoid making a mistake when buying?
Many manufacturers try to reduce the cost of washing machine repairs by using standard bearings and seals. However, it's best to play it safe and confirm the quantity and size of components before purchasing them. The best option is to order genuine parts through the supplier's official website after consulting with a specialist.
However, experts recommend taking your time with the purchase and opening the drum first. This way, you can remove the old bearings and determine the exact diameter using the markings stamped on the surface. If you can't determine the dimensions, take the clips with you to the store or service center and ask the consultant to select an equivalent based on the sample.
The size and number of bearings in your washing machine varies by manufacturer and model. To avoid mistakes, consult the instructions or consult a specialist.
