How many bearings are in an Electrolux washing machine?

Repairing a bearing assembly is quite a complex task. This is due to the location of the parts—they're located inside the washing machine's drum. You need to prepare for the job, firstly, by purchasing new components and secondly, finding the tools you'll need.

Let's find out how many bearings are in an Electrolux washing machine. We'll explain what the unit consists of. We'll also explain what to look for when purchasing a repair kit.

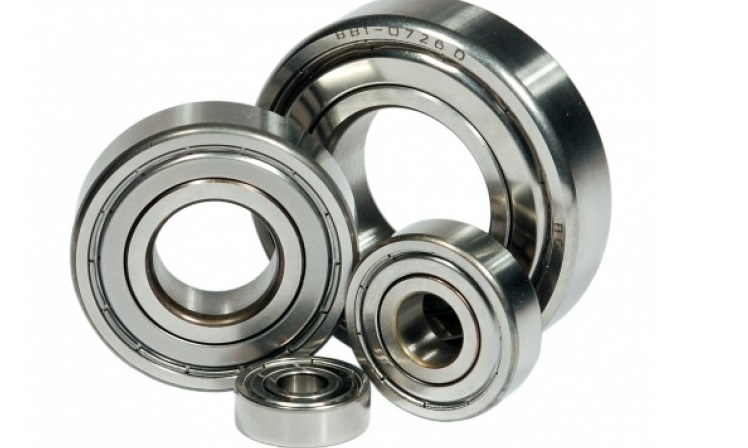

Number and dimensions of components

When ordinary users undertake such repairs, many of them do not even have any idea how the unit works. Most automatic machines Electrolux equipped with a pair of bearings of different sizes and one oil seal. Spare parts are usually sold as a set, so it is difficult to make a mistake in their quantity.

There are exceptions. Some Electrolux washing machines are equipped with a reinforced, double-row ring. These models will require one bearing and seal.

It is important to select components for a specific Electrolux washing machine model.

Why is it important to check your washing machine model? Even if the bearings are identical, the seals may differ. In this case, even a difference of a few millimeters can be significant.

To avoid mistakes when searching for spare parts, you can first disassemble the machine, remove any broken rings, and then head to the store. This way, finding the right components is a breeze. Each bearing and seal is marked, and matching parts can be found based on these markings.

Selecting components

Of course, it's much more convenient to buy a repair kit in advance rather than after removing the bearings. This is especially true if you have to wait for the parts when ordering online. A washing machine with partially broken rings will still be able to wash, but if you disassemble the appliance, it will no longer be usable.

Don't worry, because buying spare parts is never done blindly. Each Electrolux washing machine model has bearings and seals of a specific size.
Information on the diameter and thickness of the components is freely available. Moreover, suppliers themselves always indicate which washing machines they are compatible with in their repair kit descriptions.

Many Electrolux automatic washing machines are equipped with 204-205 bearings and a 30x52x10/12 seal. These models include:

• Electrolux EWF 1090;
• Electrolux EWF 8040;
• Electrolux EWF 1030;
• Electrolux EWS 10010W;
• Electrolux EWS 10012W;
• Electrolux EWF 10020W;
• Electrolux EWS 10412W;
• Electrolux EWS 10612W;
• Electrolux EWS 10712W;
• Electrolux EWS 11600W.

Electrolux washing machines with 205 and 206 bearings, equipped with a 35x62x10 rubber seal, are quite common. These models are:

• Electrolux EWS 1020;
• Electrolux EWF 1286;
• Electrolux EWS 800;
• Electrolux EWS 8000W;
• Electrolux EWS 8010W;
• Electrolux EWS 8012W;
• Electrolux EWS 12470 W;
• Electrolux EW 1259W;
• Electrolux EWF 10240W;
• Electrolux WS 10400W;
• Electrolux EWS 10410W;
• Electrolux EWS 12612W;
• Electrolux EWS 12712W.

There are also machines equipped with 205-206 rings, but with a 35x62x10/12 seal. These models include:

• Electrolux EW 925;
• Electrolux EW 1277 F;
• Electrolux EWF 1030;
• Electrolux EWF 12040W;
• Electrolux EWF 12270.

Washing machines with larger drums are equipped with larger bearings. Rings 206-207 are found on the following models:

• Electrolux EW 1257 F, oil seal 2×72/80×8/13.5;
• Electrolux EW 1270 F, seal 40.2×72/80×8/13.5;
• Electrolux EW 1675 F, rubber 5/14;
• Electrolux EWF 1486, oil seal 40.2x72x10/13.5;
• Electrolux WH 4555 T, gasket 40.2×72/80×13;
• Electrolux WDJ 1233, seal 40.2x72x10/13.5;
• Electrolux EWG 12740W, elastic 2x72x10/13.5;
• Electrolux EWI 1235, oil seal 40.2x72x10/13.5;
• Electrolux EWX 12540W, gasket 2x72x10/13.5.

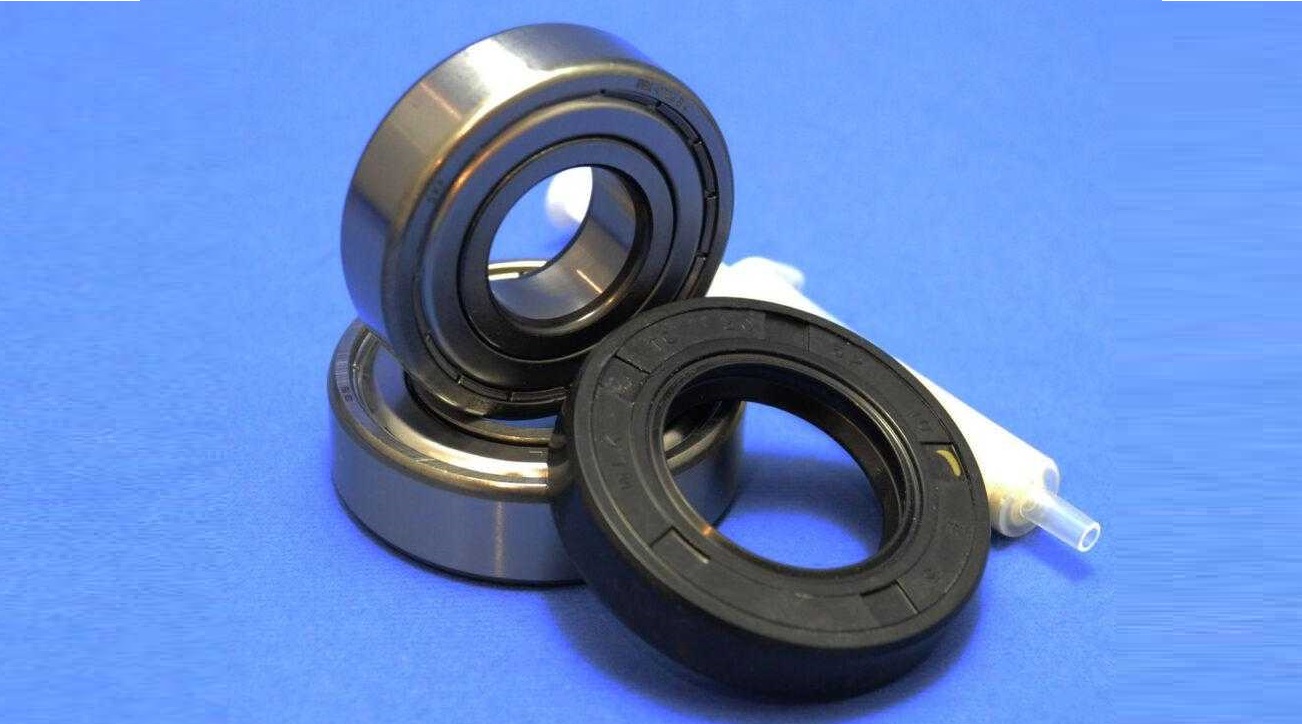

Reinforced bearings 306-307 and oil seal 47x80x11/13.5 are installed on the following models:

• Electrolux EW 1649;
• Electrolux EWW 16781W.

Also worth mentioning are models equipped with a single double-row BA2B 30x60x37 bearing. These are washing machines:

• Electrolux EW 914 S, oil seal 40x60x10;
• Electrolux EW 920 S, gasket 40x60x8/10.5;
• Electrolux EW 952 S, seal 40.2×60/105×8/15.5;
• Electrolux EW 962 S, rubber 40.2×60/105×8/15.5;
• Electrolux EW 1062 S, oil seal 40.2×60/105×8/15.5;
• Electrolux EW 1063 S and Electrolux EWS 1105, gasket 40x60x10;
• Electrolux EW 1165 F, sealing rubber 48×68/110×13.

Bearings must be replaced in pairs, even if one of the rings appears to be intact.

How can I find out the name of my Electrolux washing machine? The model and serial number of the automatic machine are written on the nameplate or on an information sticker. If the instructions for the equipment have been saved, the data can be taken from there.

Don't skimp on components. The parts are arranged in a rather complex manner, requiring complete disassembly of the washing machine to access the rings. Therefore, to avoid repeating labor-intensive repairs in a couple of years, it's better to install high-quality bearings from the start.
