The Ardo washing machine drum does not spin.

The Ardo washing machine drum does not spin. Sometimes, after loading clothes into the washing machine and selecting the desired cycle, the user notices that the Ardo machine isn't spinning. The cycle appears to be starting and water is filling the drum, but the centrifuge remains stationary or stops spinning mid-cycle. Let's look at the reasons why this unplanned stoppage occurs and how to restore the machine to working order.

Urgent measures

What should you do if your washing machine isn't spinning? First, turn off the power—turn off the washer and unplug the power cord. Then, prepare to drain the water from the drum. The soapy water will need to be drained through the waste filter. Prepare a shallow but large container, place it under the machine, remove the drain plug, and collect the water in a basin. It's a good idea to cover the floor around the machine with dry cloths. Once the water has drained, you can open the door and remove the laundry from the drum. Next, proceed to inspecting your "home helper."

It is important to understand at what stage of the wash cycle the machine stopped spinning the drum.

If the laundry is clean, without soap stains, but simply wet, the drum is stuck during the spin cycle. If the laundry is damp and powdered, it's likely the stoppage occurred early or mid-cycle. drain the washing machine for safety

Try spinning the drum by hand. If it rotates without any problem, the problem lies with the electronics or drive mechanism. If you can't move the container even by hand, you may suspect that a foreign object is lodged between it and the drum, blocking the centrifuge's movement.

Sometimes it's not a breakdown at all. The reason for the drum stopping during washing may be a banal overload of the automatic machine. If you cram too many items into the washer, the machine won't be able to handle the load and will interrupt the cycle. Try splitting the load into two and washing each separately. Before making a final "verdict," it's worth checking to see if the Ardo washing machine's hoses are pinched. This could be why the cycle has paused. We'll look at the most likely reasons why the machine isn't spinning and tell you how to fix it yourself.

A foreign body is jammed

Often, due to carelessness, items that shouldn't be in the washing machine end up in the washing machine. For example, keys, hairpins, nails, buttons, brooches, metal clasps, and much more left in pockets. A foreign object stuck between the walls of the tank and the drum can easily block the rotation of the centrifuge.

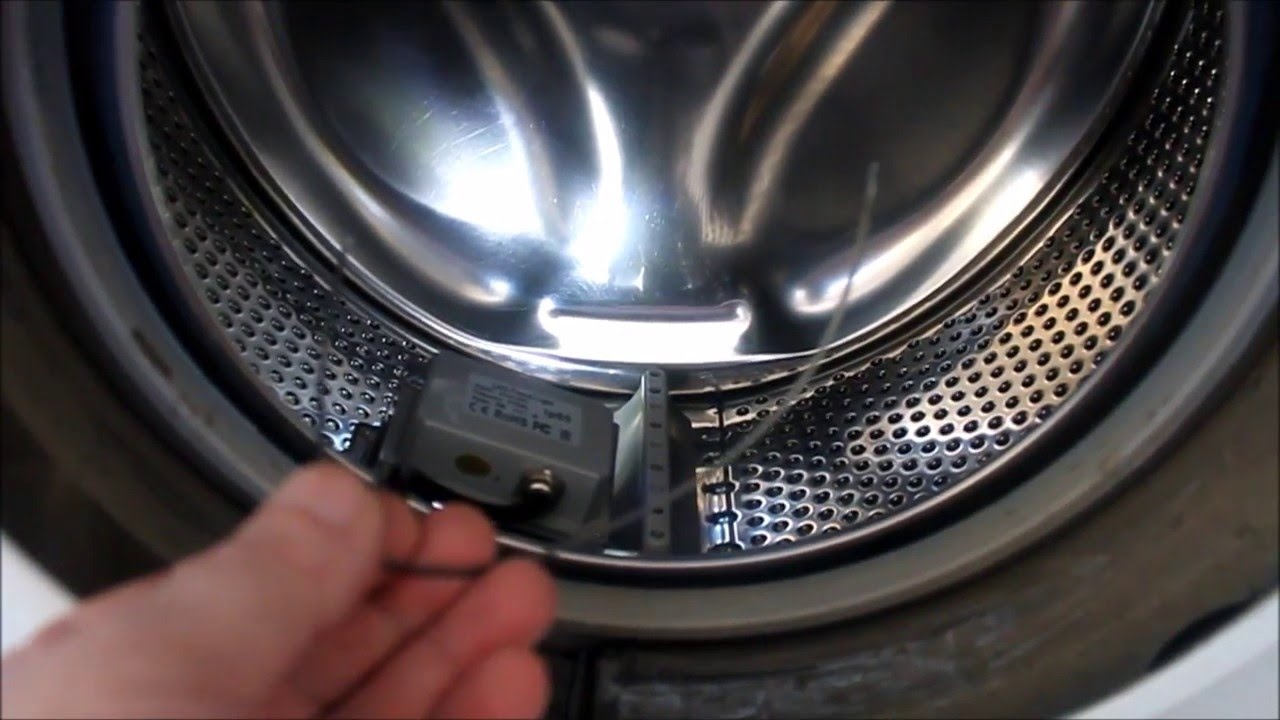

An object stuck inside not only interferes with the machine's operation but can also puncture the plastic drum. In this case, you'll have to prepare for more expensive repairs. What should you do in this situation? Use a flashlight and carefully inspect the drum. Light will penetrate the porous surface, making it quite possible to find a foreign object lodged between the walls. Carefully remove the foreign object. Thin objects, such as a bra underwire, can be removed through the drum's holes. In other cases, partially disassembling the Ardo's body will be necessary to remove the stuck object. foreign object in the tank

Let's get to the suspicious elements

Removing objects stuck between the tub and drum isn't that difficult. Simply move the machine away from the wall to gain access to the rear panel. The next step is as follows:

unscrew the bolts securing the top panel of the case;
push the “lid” forward and remove it, put it aside;
unscrew the screws located around the perimeter of the rear wall;
remove the back panel and set it aside so that it does not get in the way;

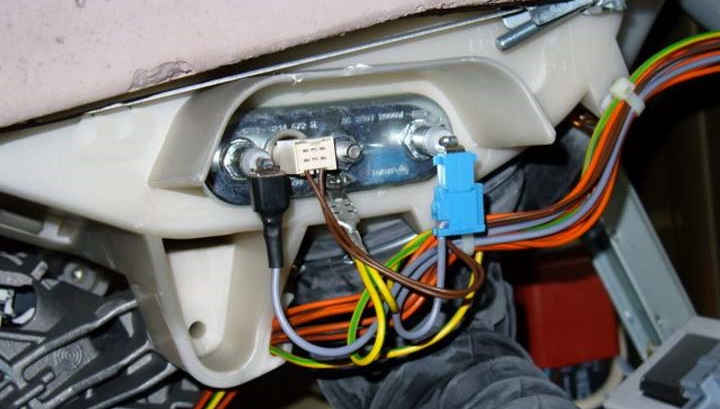

disconnect the wires from the heating element (before this, it is better to take a photo of the contact connection diagram to avoid making mistakes during reassembly);
loosen the nut securing the heater and push the screw inward;
remove the heating element from the "nest".

This will create a hole large enough to fit your hand through. This is where you can get inside the tank and remove any stuck objects. Afterwards, all that's left to do is reassemble the machine in reverse order.

The bearing unit is worn out

An emergency stop of the drum can be caused by broken bearings. Therefore, it will be necessary to check the integrity of the bearing assembly. This is quite a labor-intensive task, requiring patience and time.

Worn bearings “give away” themselves with a loud hum, noise and grinding sounds that occur when the washing machine is operating.

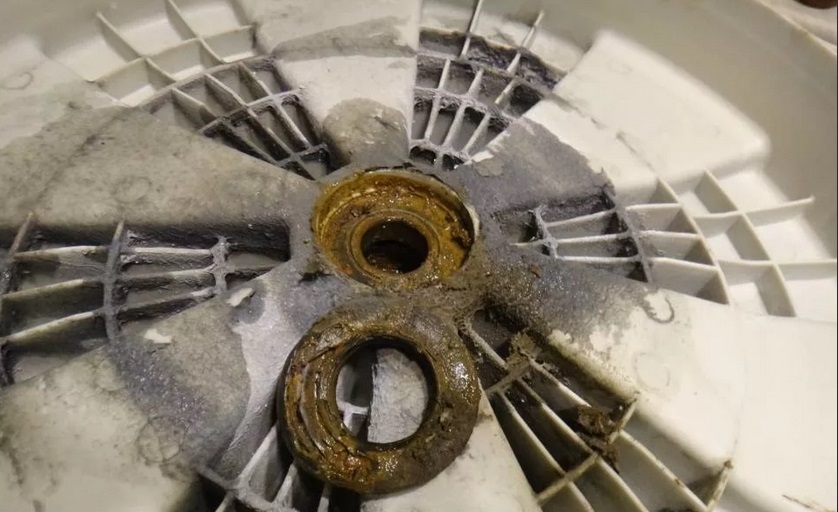

Typically, if the bearings are the issue, the washing machine will begin to complain about the problem early. The machine will vibrate heavily during operation, making noise, and humming. These alarming symptoms indicate the need for component replacement. To replace the bearings, you'll need to remove the drum from the washing machine and disassemble it. The following tools will be needed for the repair: Phillips and slotted screwdrivers, pliers, wrenches, a drill, a small hammer, a hacksaw, and a screwdriver. bearings need to be replaced

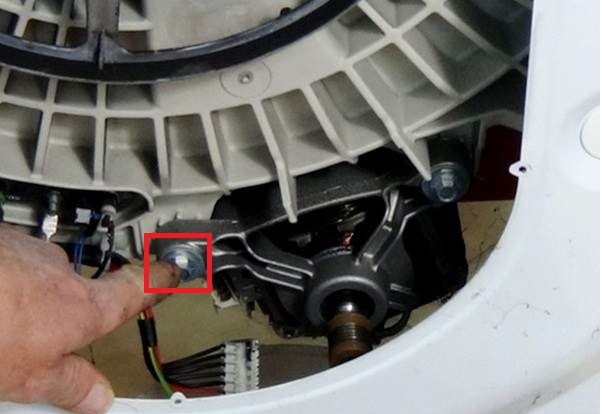

First, you need to remove all components from the machine that would interfere with the tank removal. This includes the heating element, motor, drive belt, pressure switch, and drain pump. You'll also need to disconnect the counterweight hidden under the top cover, remove the powder receptacle, and the dispenser "hopper." You'll also need to loosen the clamps and disconnect various hoses, remove the contacts and wiring, and disconnect the sensors.

It is recommended to take photographs while disconnecting wires and parts to avoid mistakes during subsequent assembly.

Once all the "interfering" elements have been removed, the plastic container can be removed from the housing. Washing machines Ardo are equipped with non-separable tanks, which makes repairs difficult. The manufacturer assumes that the entire tank will need to be replaced when the bearings wear out. However, this is quite expensive, so the technicians have come up with a solution. They successfully saw the tank along the factory seam and then join the halves together using a moisture-resistant sealant and screws.

Once you've gained access to the drum, all that's left to do is knock out the old bearings and install new ones, remembering to replace the seal as well. All components are generously treated with a special lubricant for washing machine parts. Next, the drum halves are glued together with a special sealant. Additionally, the structure needs to be reinforced with screws. Reassembly of the washing machine is carried out in reverse order.

Drive element

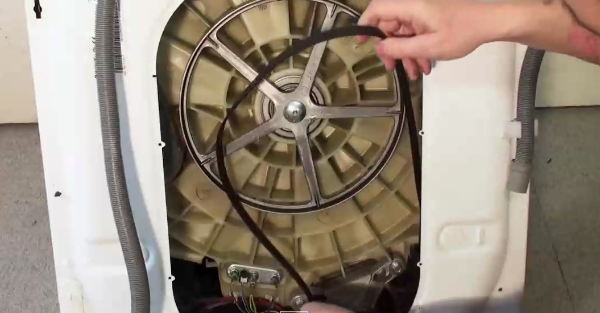

Often, a washing machine won't rotate due to problems with the drive belt. The belt can stretch over time and begin to slip off the pulley. Sometimes it simply breaks. It's best to replace this part immediately. Ardo washing machines with asynchronous motors typically use V-belts, while those with a commutator motor use poly V-belts. Components should be selected based not only on the motor type but also on the model and serial number of the washing machine. the drive belt came off

To install a new drive belt, loosen the electric motor and move it slightly toward the drum. Next, slide the rubber band onto the pulleys, and then return the drive to its original position. The belt tensioner can be adjusted using the adjusting screw.

The drive belt tension must be strong; the norm when pressed is a sag of 4-5 mm.

The electric motor failed

Another possible cause of a sudden drum stop is a broken motor. Over time, the motor brushes wear down and can no longer conduct current to the rotor winding. This causes the motor to stop working, and the "centrifuge" doesn't spin up. Brushes in commutator motors should be replaced every 3-5 years. This is usually when the carbon rods wear out. It's important to select brushes designed for the specific motor model. They should also always be replaced in pairs, even if one rod is intact.

To check the condition of the brushes and replace them if necessary, you'll need to remove the rear panel. Make sure the machine is unplugged, then:

remove the top panel by unscrewing a couple of bolts that secure it (the cover slides towards the back wall);
remove the back of the case by removing the screws that secure the wall;
remove the drive belt from the drum "wheel" and the engine pulley;
find the engine, disconnect all the wires connected to it;
unscrew the fasteners holding the motor in the housing;
remove the electric motor and lay it on its side so that the place where the brush is inserted is on top;
Loosen the fastener and remove the brush from the motor housing.

After removing both electric brushes, inspect the commutator. If there's any carbon buildup, remove it with abrasive paper or a stiff eraser. Then, you can install new brushes. Once the motor assembly is complete, you can reinstall it, securing it with bolts. Next, connect the wiring to the motor, tighten the drive belt onto the pulley, and reassemble the housing. Next, test the unit for proper operation by running a test wash.

The motors in Ardo washing machines are very reliable, but there are still rare cases of shorted windings or broken wires. You can suspect this problem if the washing machine runs fine when idle, but when you start it in operating mode (with a full drum), the protection circuit is activated and the power goes out. If the stator or rotor winding shorts out, the drum won't spin, and the washing machine makes a loud humming sound. In this case, the motor can usually be repaired, but if there's a burning smell, the motor will need to be replaced. How to restore slats

You can test the electric motor with a multimeter. The tester measures the resistance on the fins. The readings should not exceed 5 ohms. The winding should also be tested. Place one multimeter probe on the unit, and the other on the stator. The highest resistance value is considered normal. If the winding is shorted, the reading on the device screen will be close to zero.
