Washing machines with a weighing function

Not all washing machines with automatic weighing are actually capable of accurately calculating the weight of a load. This is more of a marketing ploy to raise the price and distinguish the machine from less "modern" machines. A truly weighing washing machine is equipped with a special sensor that can scan kilograms and adjust the wash cycle accordingly. We'll explain how automatic kilogram counting works in this article.

Laundry amount detection mechanism

A regular washing machine can guess how much laundry is placed in the drum, but only approximately. The function of such “weighing” is assigned to the pressure switch, which, by measuring the water level, guesses the number of loaded itemsIt works like this:

• the hatch door closes;
• the machine begins to fill with water, spinning the drum to thoroughly wet the laundry;
• The pressure switch controls the amount of incoming water and transmits information about the rate of collection to the control board;
• The electronic module analyzes the received data and approximately determines how much water is spent on absorption.

The slower the water fills, the more items are in the drum. However, the pressure switch doesn't provide precise readings, as many lightweight fabrics absorb liquid less effectively, creating the illusion of an overfilled drum. However, measuring the level still allows you to save 20-30% on water consumption and adjust the program accordingly.

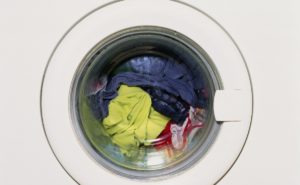

How is dry laundry weighed?

Modern washing machines with a weighing function operate on a different principle. They can accurately determine the weight of items loaded in the drum in kilograms. Based on these measurements, they can refuse to start a cycle due to excess weight or suggest a special program to save energy and water.

The motor acts as a scale for the laundry. In these models, the motor is located directly on the drum axis, allowing for the rotational force and voltage generated by the motor to be monitored. Using these values, the washing machine's processor calculates the load and displays the weight of the laundry.

It is prohibited to exceed the maximum dry laundry weight permitted for a specific model!

Moreover, the program won't start until the machine has weighed the contents. Conventional machines will display the wash time immediately after pressing the "Start" button and then automatically begin the cycle. Automatic washing machines first determine the weight of the laundry and only then offer the user a specific setting with the required amount of water, spin intensity, temperature, and duration. This allows for significant savings. Let's look at several models that offer pre-wash weighing.

Siemens WM16S740

By choosing the Siemens WM16S740, you can accurately determine the weight of your load. Furthermore, the system will analyze the degree and type of soiling, select the optimal program from 14 preset modes, and immediately start washing without requiring confirmation. Thanks to its fast response and accelerated scanning, this process is quick—a full cycle is completed in 15 minutes. Rushed washing won't compromise quality, your laundry will be perfectly clean, and you'll save water and energy.

Users will also appreciate the AquaSensor water clarity monitoring system. It features a special photocell that records the water's clarity during rinsing and reuses it if it's clear. It also features AquaStop, a complete leak protection system that monitors liquid flow and shuts down the machine at the slightest suspicion of a leak.

The machine also features a child lock and a lock to prevent accidental operation, a wash cycle sound, a 24-hour delayed start, Class A energy efficiency, and imbalance and foam control. Electronic controls allow the system to wash multiple fabrics simultaneously. The drum capacity is 8 kg with dimensions of 60 x 85 x 59 cm. The model will cost $295.70.

Gorenje Premium Touch WA 65205

With the Gorenje Premium Touch WA 65205 you can experience what it's like to actually weigh your laundry before washing. Simply load the drum and turn on the machine, after which the system will calculate the kg and offer the user the optimal washing program.The perfect selection of cycle duration, temperature, and spin strength is guaranteed by special sensors and the UseLogic electronic intelligence. This technology collects and analyzes information about fabric type and soil type, ensuring minimal water and energy consumption.

On the Gorenje Premium Touch WA 65205, you can save the selected mode and use it whenever necessary.

The machine is controlled via an LCD display, and all programs and commands are displayed in Russian. Information on water temperature, spin speed, remaining wash time, and liters and kWh consumed is also displayed. The machine features a cycle sound, a 24-hour delayed start, foam control, automatic dosing, and a child lock. Safety is ensured by multiple sensors that detect overheating, overflow, and leaks.

In addition to the above, the machine offers 29 programs, including an "easy iron" option. It has a 6 kg capacity and dimensions of 60 x 85 x 59 cm. The machine costs approximately $455.20.

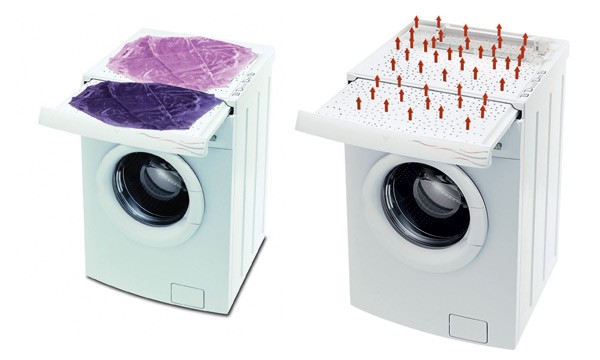

Electrolux Calima EWFM 14480W

The Electrolux washing machine with auto-weighing is also in the spotlight. It also reads the weight of the laundry, evaluates the nature of any stains, and displays the most appropriate program. The model's highlight is the Time Manager function, which allows users to customize the time of the selected program, speeding up or slowing down the motor. This feature ensures optimal wash cycle times, high-quality results, and efficient use of water, detergent, and electricity.

In addition to convenient smart controls, this front-loading washer offers complete leak protection, 15 standard programs, and a child lock. It also boasts a top-mounted drying board, suitable for both synthetic and delicate fabrics. The drum also boasts a 7 kg capacity, yet its compact size and depth are only 60 cm. Pricing starts at $268.45.
