How to remove a dishwasher door

Most often, when repairing a dishwasher, it's necessary to remove the door. Repairmen know exactly how to do this, as they repeat the procedure several times a day. However, for the average person, without the necessary experience and information, this can be challenging. Online resources often only describe how to remove the front panel, but not how to remove the door. To solve this, we've created detailed instructions for you.

Disassembling and removing the dishwasher door

As much as you'd like to save time, you won't be able to remove the door from the machine yourself without partially disassembling the unit. This is because the front panel will get in the way, and it needs to be removed first. In addition, there is a control module inside the door of the device, which must not be damaged under any circumstances during dismantling of the door. To ensure everything goes smoothly, follow the instructions carefully.

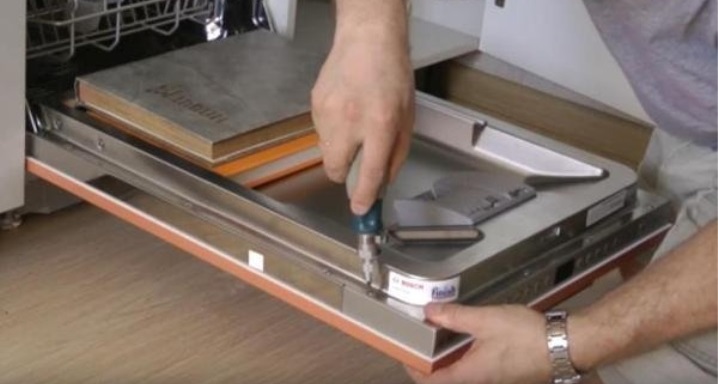

• First, remove the decorative panel. It's easy to remove, as it's usually held in place only by special guides and latches. Occasionally, the panel may be held in place by screws, in which case you'll need to remove them.

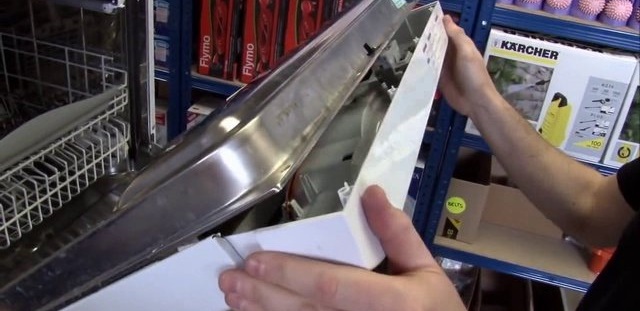

• Now we open the door and unscrew all the screws from the inside, which is required to dismantle the control panel and the board.
• Disconnect the wire and carefully remove the top panel. Then remove the controller. To remove the module, you must remove all wiring connectors.

Be sure to take pictures of all important connections before disassembling to make it easier to reconnect everything.

• This section is for owners of Bosch, Ariston, Indesit, and Siemens dishwashers. If the appliance has a drying system, it will also need to be thoroughly disassembled..
• At this stage, the machine door must be unscrewed from the bracket, and all wiring must be disconnected.
• Disconnect the air duct, then carefully remove the detergent dispenser.
• Now we'll begin dismantling the door itself. Pull the spring up and remove the hook from the hole to remove the part.

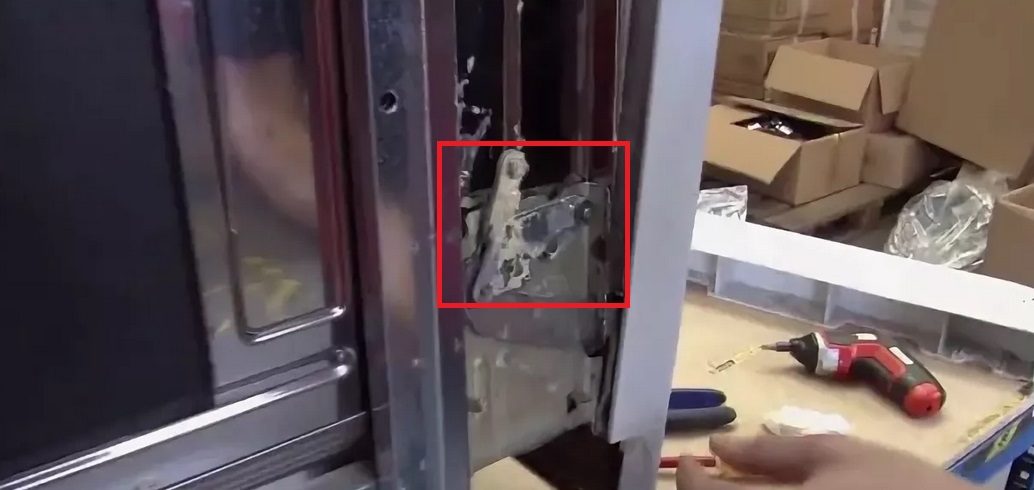

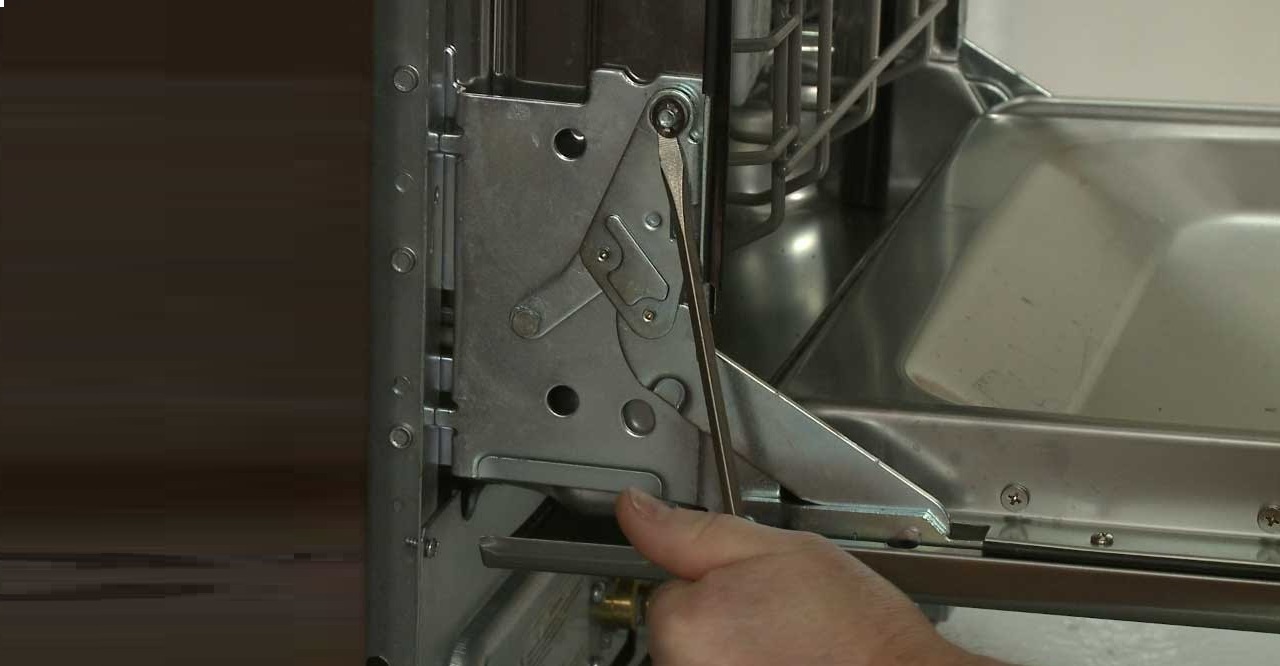

• The finishing touches are to unscrew the screws holding the door to its hinges, pull the door up and remove it.

To reinstall the door, follow these same instructions, but in reverse order. Carefully connect the wires to the control module board, and refer to your photos if you missed anything. There shouldn't be any errors at this stage.

Problems with disassembling and removing the door

While a dishwasher door may appear simple from the outside, it's actually more like a multi-layered Napoleon cake. It consists of a series of panels, wires, a high-tech control board, hinges, springs, screws, and a host of other small components.

The most difficult part isn't removing the dishwasher door yourself, but rather properly disconnecting all the electronic components and then reconnecting them correctly. Reassembly issues can also arise if small components are accidentally lost.

To prevent this from happening, carefully prepare the area for disassembling and reassembling the door. Ideally, this should be a spacious, well-lit room where you can lay out boxes for all the small parts on the floor. Also, be sure to take a mobile device with a good camera to record in detail each stage of the dishwasher disassembly. Take careful photographs of the wiring so that you can connect it correctly later.

When disassembling the door, take your time. The control board and wires in the door are very fragile. Appliance manufacturers often use thin wires that are easily damaged, purely to save money. The control board is held in place by particularly fragile plastic latches that are extremely easy to break. Therefore, always disassemble the dishwasher door slowly and carefully.
