How to remove the filter in a Bosch washing machine?

How to remove the filter in a Bosch washing machine An experienced technician can remove the filter on a Bosch washing machine in a couple of minutes and without any extra effort – the procedure is simple and straightforward. However, ignorance of certain nuances can complicate a mundane task, even leading to flooding and damage to the drain pump. To complete the task quickly and safely, it's important to prepare for the procedure in advance, follow the instructions carefully, and follow the instructions carefully. It's also a good idea to understand the potential emergency situations that may arise when removing the filter and resolve them as needed.

If the machine is in good working order

You shouldn't start unscrewing the filter right away; you need to prepare for the procedure in advance. Without preparation, the water in the tank will gush out through the vacated hole onto the floor. A flood can occur even if the tank is visibly empty, as some liquid remains in the pipes and, without a plug, spontaneously spills out. The exact amount of leakage is unknown, depending on the capacity of the Bosch model. You'll still have to clean up the aftermath, which will take time.

If you anticipate a spontaneous drain, removing the filter will be quick and easy. The key is to take your time and prepare for the procedure by following these steps:

Do not unscrew the dust filter immediately after washing at 45-90 degrees - the machine will not have time to cool down and you can get scalded by boiling water!

disconnect the machine from communications, electricity and water supply;
remove all objects and items that can be damaged by moisture (extension cords, mats, powders) from the machine;
cover the surrounding area with oilcloth, polyethylene or old rags;
prepare a container for collecting water, a basin or a plastic container;
tilt the unit back so that the body “hangs” with its front legs in the air by 3-5 cm;
Place the prepared container to the right under the machine in the resulting “gap” of 3-5 cm.

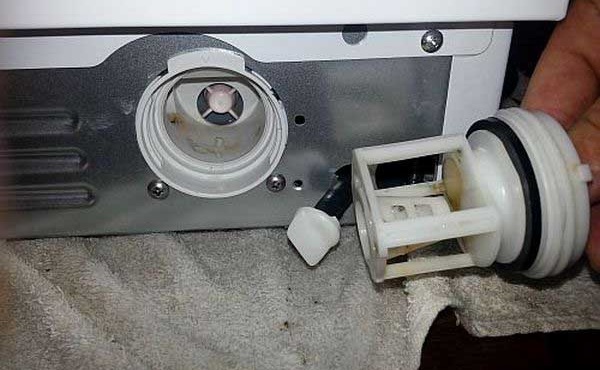

Once you're prepared, you can begin the procedure. Use a flat-head screwdriver to pry open the access door, which is located in the lower right corner of the washing machine. Once the latches release, open the door and locate the black filter cover behind it. Then, simply grab the protruding "handle" and begin turning it counterclockwise. Then, pull and pull the "coil" out.

Water will flow out of the hole immediately after removing the filter. However, the stream will be uneven, as the "plug" will splash the liquid around.

Problems with filter removal

Typically, removing the filter is straightforward—the attachment rotates easily and slides out without issue. However, sometimes the procedure becomes more complicated if the access hatch won't open, the coil is stuck to the housing, or is blocked by debris. Identifying the problem is easy: a white-yellowish residue is visible, or the "debris" simply won't come out. In either case, you'll need to address the situation another way.

First, we proceed as follows:

we are looking for pliers;
We “grab” the protruding part of the filter with pliers;
We're trying to pull off the "trash can".

Don't press too hard - the brittle plastic may not withstand the pressure and break off. If you can’t move the part like this, tilt the washing machine body back, lift the front by 15-20 cm and lean it against the wall. Then we try to knock the filter out with our fist. The hope is that the objects blocking the plug will shift and stop holding it in place. problems with filter removal

Some online "experts" recommend prying out the filter with a screwdriver, but experienced technicians strongly advise against it. It's easy to misjudge the force with such a manipulation and damage the snail, leading to additional costs. Naturally, the nozzle itself will also be damaged, requiring replacement.

It is strongly recommended not to pry out the drain filter with a screwdriver, as this can easily damage the nozzle itself, as well as the seat and the snail.

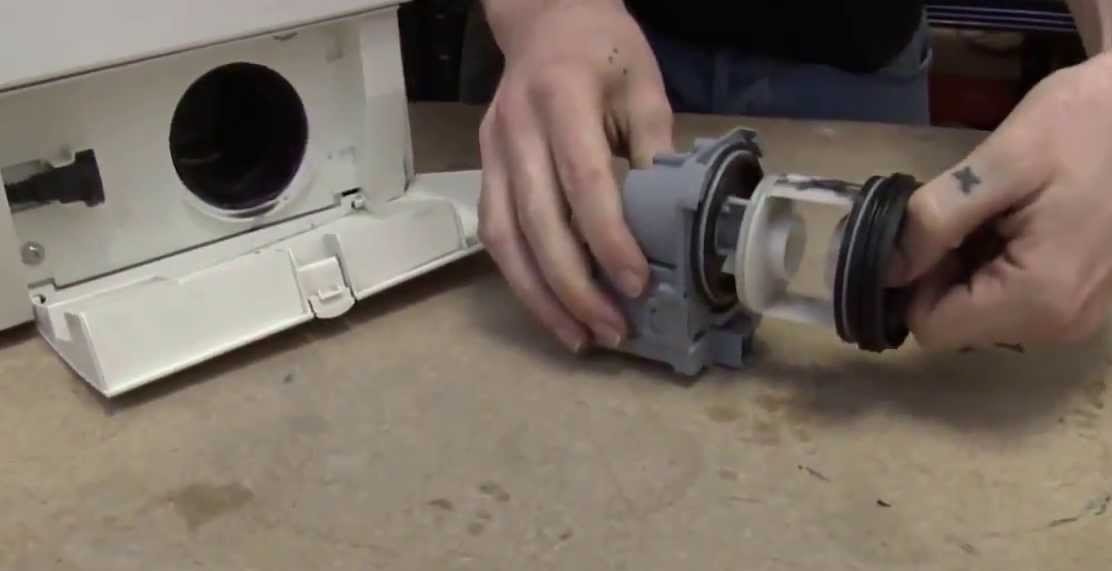

If you can't knock the filter out with your fist, there's only one option left: push the plastic piece through from the pump side. This is more difficult, but more effective. The procedure is as follows:

lift the machine;
access the snail through the bottom (to make it easier, it is recommended to remove the front and back panels);
release the connected pipes from the clamps;
loosen the fasteners holding the pump;
pull out the pump;
clear the "path" to the filter;
unscrew the filter and clean the removed pump.

Removing the filter on a Bosch washing machine is easy. The key is to prepare in advance, remember safety precautions, and clean the machine regularly to prevent debris from sticking and clogging the dustbin.
