How to remove the top cover of an Ariston washing machine?

To fix almost any problem, you'll need to remove the top cover of your Ariston washing machine. The job takes no more than 10 minutes, but a novice repairman might have some questions along the way. We'll show you how to partially disassemble the washing machine yourself, at home.

Unexpected difficulties

Most washing machines have no problem removing the top panel; it can be removed easily without much effort. Hotpoint Ariston machines have a lid that is additionally secured with cast latches. Plastic fasteners are very easy to break during disassembly, so the job is considered quite risky.

When removing the top panel, be careful not to break the latches, otherwise you will not be able to put the cover back in place.

It is also important to remember safety precautions. Before attempting to open the lid, you should turn off the washing machine Disconnect the power cord and close the shut-off valve. Only after this preparation can you begin disassembling the housing.

Removing an element on a front-loading machine

The procedure will depend on the type of washing machine. Front-loading models are in high demand, so we'll start with them. The lid of front-loading machines is additionally secured with molded plastic fasteners, which are important to remember. To remove the lid, the user must:

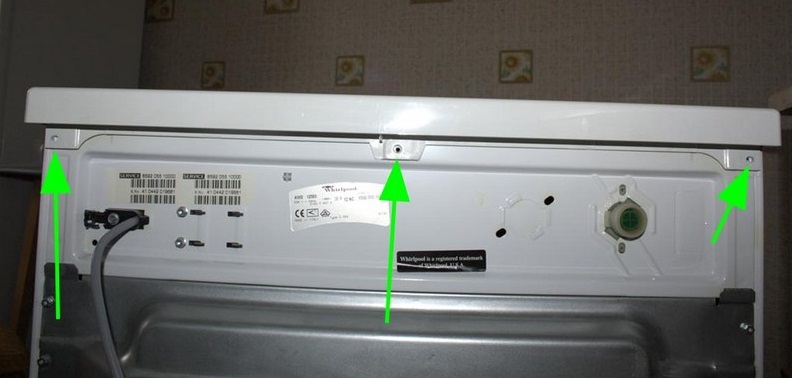

• find two bolts holding the top panel;
• use a screwdriver or drill to unscrew the screws;
• go around the machine, lift the back of the panel and carefully pull it towards you until the plastic clips engage.

Do not pry the lid with a knife or a flat-head screwdriver, as this will damage the latches.

This is how you open the lid on Ariston washing machines. If the "top" won't budge, change your tactics: stand in front, press lightly on the element, and push the panel toward the back of the machine.

The most common mistake DIYers make is trying to pry the lid loose with a knife or screwdriver. This won't make removal any easier, but it can lead to disastrous consequences. This type of tampering often breaks the plastic latches, making it impossible to reassemble the case.

When removing the top cover from a Hotpoint Ariston washing machine, it's important to follow the instructions. Use a screwdriver only to remove the bolts; prying the cover off is strictly prohibited.

We remove the cover of the "vertical"

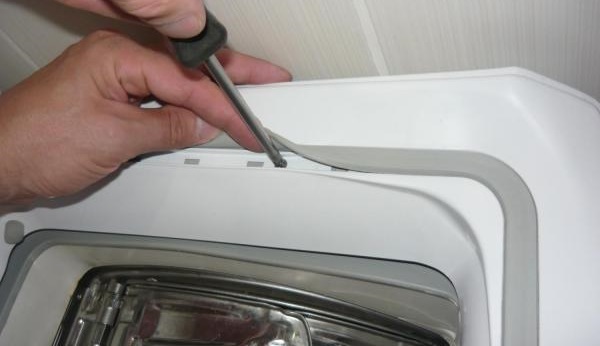

Removing the element on Ariston top-loading machines is more difficult. If the laundry hatch is located on top, then partial disassembly requires removing not only the cover but also the control panel. To avoid unnecessary work, it's important to first clearly define the purpose of the intervention.

If you need to access the hatch door for repairs, you can simply remove a couple of fasteners. If you need to get deeper, you'll have to remove the dashboard. To partially disassemble the Hotpoint Ariston "vertical" hatch, follow these steps:

• unscrew the bolts located at the back, directly under the control panel, on both sides of the machine;
• tilt the dashboard slightly forward;
• remove the cover, detaching the module from the machine body;
• unscrew the screws that secure the “top” (they are located under the dashboard);
• remove the lid.

It's entirely possible to disassemble the Hotpoint Ariston washing machine yourself, regardless of whether it's a front-facing or a vertical model. To open the lid, follow the instructions carefully and don't try to trick the system. It's also important to follow safety precautions when working with electrical appliances.
