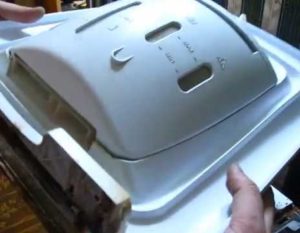

How to remove the lid from an Indesit top-loading washing machine?

Sometimes, during repairs, it's necessary to remove the lid of an Indesit top-loading washing machine. While front-loading machines require only two bolts, a slight push back, and a lift, top-loading machines require significantly more steps. Let's look at how to remove the lid on top-loading machines.

Instructions for removing the cover

To disassemble the lid of an Indesit vertical washing machine, you'll need a Phillips-head and flat-head screwdriver. No additional tools are required. It's a good idea to study the diagram for your washing machine model before disassembling it; this will give you an idea of ​​the location of the machine's main components and fasteners. In principle, you can do this without this information.

The algorithm of actions will be as follows:

• unplug the washing machine;
• Pull out the machine to have free access to its back and side walls;
• Disconnect the control panel, otherwise you won't be able to remove the top cover of the housing. To do this, unscrew the two screws securing the panel; they are located on the sides of the element. Be careful not to damage the plastic latches when removing the panel.
• Move the control panel to the side. If it interferes with your work, disconnect the wires, taking a photo of the wiring diagram first, and then remove it completely;

The bolts securing the top cover of the Indesit vertical washing machine are located behind the control panel.

• Unscrew the bolts and remove the cover.

This is how to remove the lid of an Indesit top-loading washing machine. If you're not finished yet and need to continue disassembling the machine, we'll explain what to do next.

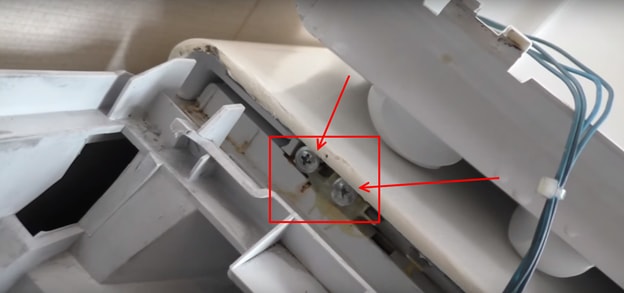

Further disassembly

So, how do you disassemble an Indesit vertical dishwasher? Removing the housing cover will provide access to the rest of the washing machine components. We'll walk you through how to completely disassemble the machine, and you, depending on the malfunction, will determine at what point you should stop. The disassembly process for an Indesit upright washer is as follows:

• Remove the filler valve. To do this, loosen the clamps securing it, disconnect the wiring, and press the retaining latch;
• Unscrew the bolts holding the side panels of the machine, remove the walls of the case and put them aside;
• Unscrew the screws securing the front panel of the machine and remove it. Once the sides of the case are removed, you'll have access to all the components of the vertical machine.
• disconnect the wires attached to the tank;

Most Indesit vertical washing machine models have a non-removable drum, so the bearings will have to be repaired on-site.

• pull the drive belt off the pulley;
• disconnect the heating element wires, loosen the nut and press the central bolt inward;
• remove the heating element from the tank;
• remove the engine by unscrewing the mounting screws and pulling out the plugs;
• To remove the pump, loosen the clamp on the outlet pipe and drain hose. Remove the pump from its mounting by rotating the element from right to left or by unscrewing the mounting bolts.

Be prepared for water to leak from the system when removing the drain pump. Therefore, have a dry rag or small container ready. This will allow you to disassemble the pump and repair the problem.

If the cover needs to be repaired

In some cases, repairs require disassembling the Indesit washing machine lid. Disassembling the element is quite simple. Place the lid on a flat surface and follow these steps:

• remove the powder container;
• press the latch, remove the button;
• unscrew two bolts;
• turn the lid over, remove the handle;
• release the latches located around the perimeter of the door;
• Divide the panel into two parts.

By disassembling the cover, you can repair or replace any faulty components. It's also a good idea to clean the part of any debris, dirt, or scale, and inspect the components for corrosion. Reassembly is done in reverse order.
