How to remove the front panel on a Bosch washing machine?

Most washing machine problems can be resolved on your own. This requires a good head, a minimal set of tools, and some free time. The most difficult task is correctly identifying the cause of the malfunction. Diagnosing the problem requires looking inside the appliance. Let's look at how to remove the front panel of a Bosch washing machine to gain access to the main components.

Preliminary preparation

Before disassembling the washing machine, make sure the power is off. Next, turn off the water supply and disconnect the inlet hose and drain hose from the machine. Then, move the machine to the center of the room for easy access.

For disassembly, you'll need tools you'd find in any home. These include Phillips-head and flat-head screwdrivers and pliers. Some Bosch models have special mounting screws that may require a star-head screwdriver.

Removing the front panel is done in stages. It's important to follow the sequence to avoid damaging the equipment. The sequence is as follows:

• removing the top cover of the case;
• detaching the lower decorative panel;
• removing the powder receptacle;
• dismantling the control panel;
• disabling the UBL;
• removing the front panel.

When disassembling a washing machine, follow basic safety precautions. We'll explain each step in more detail.

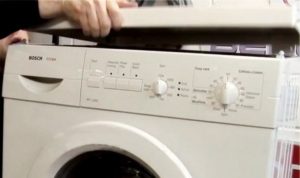

Removing the lid

The top of the housing protects the inside of the washing machine from dust, dirt, moisture, and mechanical damage. The panel is secured with two screws. To remove them, you'll need a standard Phillips-head screwdriver.

When removing screws and small parts, set them aside so you don't lose them and can easily reassemble the washing machine later.

If you miss a bolt or latch, you'll have to run around the store looking for the right parts. And that's just extra hassle.

Once the bolts are removed, stand behind the machine, grab the top, and pull the cover toward you. Once it moves horizontally a couple of centimeters, you can lift the panel and remove it completely. The design of the fasteners makes it pointless to pull it straight up.

Removing the powder drawer and the trim panel is very simple. Pull the drawer toward you until it stops, then press the central tab and remove the drawer. The decorative bottom cover comes off by prying off the plastic clips with a screwdriver.

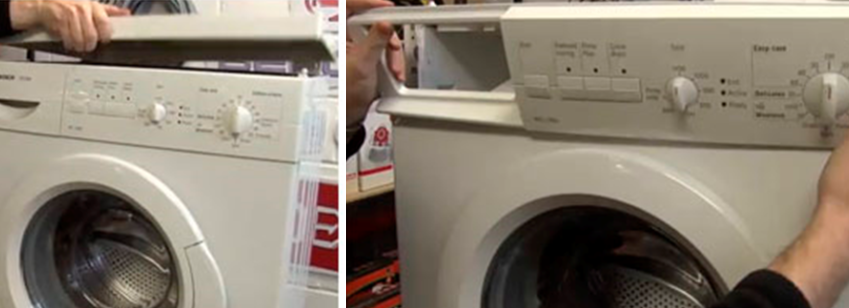

Removing the electronic panel

Disconnect the control panel very carefully. This step requires extreme precision. Damaging the board or breaking the wires will result in costly repairs.

To remove the control panel, follow these steps:

• unscrew the bolts holding it;
• Use a thin screwdriver to pry up the plastic latches located around the perimeter, gently pull upwards and open the fasteners;
• Slide the panel towards you to release the lower clips.

When the fasteners come out of the grooves, you will hear characteristic clicks, so don’t be alarmed. When removing the electronic panel, it is important to ensure the integrity of the wiring connecting the element to the control module. It is not necessary to disconnect the wires, just carefully place the board on top of the washing machine.

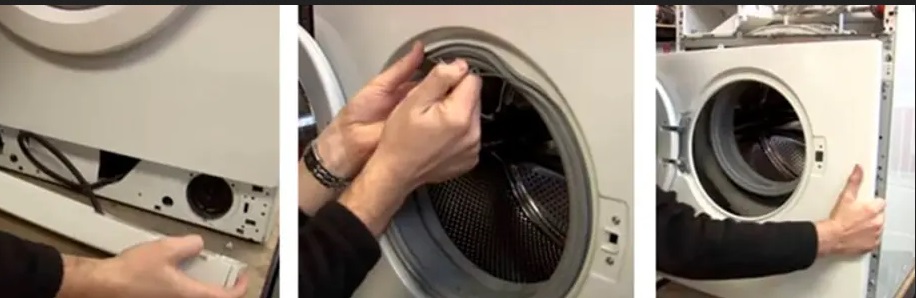

Lock and front panel

Now the sunroof locking device is preventing the front cover from being removed. Removing the lock is easy once you figure out how. The procedure is as follows:

• open the door, loosen the clamp securing the hatch cuff, remove the hoop;
• tuck the rubber seal inside the drum;
• get access to the blocker;
• Unscrew the two screws located between the lock hook and the locking device;
• remove the part;
• Take a photo of the connection diagram, then disconnect the wires and remove the lock.

Now, removing the front cover is easy. All that's left is to unscrew the screws located around the perimeter of the front panel. Now you can begin diagnosing the washing machine.
