How to open the top cover of an Ardo washing machine?

In most cases, you can repair an Ardo washing machine yourself without calling a specialist. To do this, you need a basic understanding of the machine's structure, including the locations of each component and its function. To access the necessary parts and perform repairs, you'll need to partially disassemble the machine. Let's look at how to remove the top cover of the washing machine and the tools required.

Removal in three movements

In fact, opening a washing machine is very simple. To remove the top, you only need a drill or a regular screwdriver. Before disassembling the housing, be sure to de-energize the equipment and turn off the water supply tap. Next, you need to move the appliance away from the wall for easier access. Now there's nothing in the way of removing the top cover of the Ardo washing machine. Here's how to proceed:

• go around the washing machine;

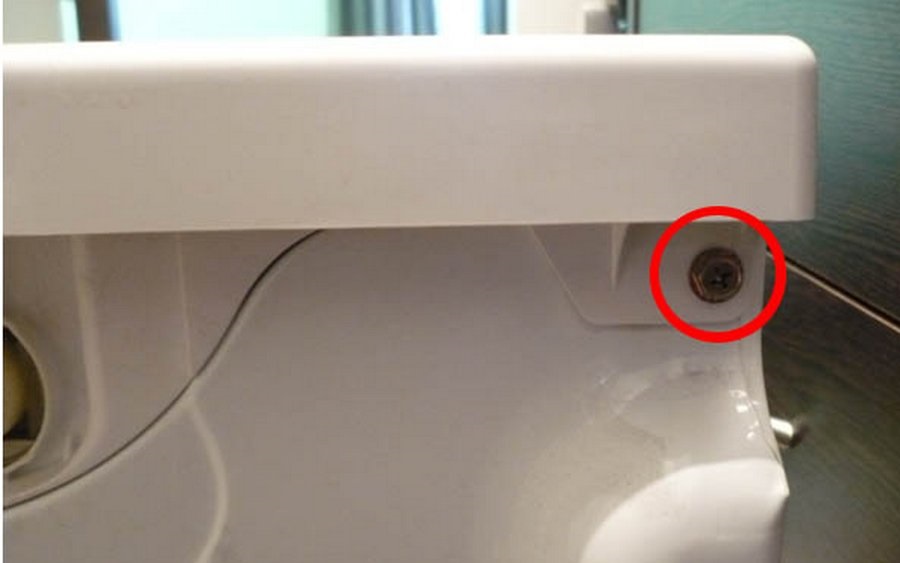

• Remove the two screws that hold the top of the case in place. The screws are located under a small protrusion in the right and left corners.
• Grab the top panel and pull it towards you. The lid should move just a couple of centimeters;
• remove the lid and set aside.

This completes the top panel removal process. You can begin diagnosing your Ardo washing machine and making any necessary repairs.

If you can't move the cover, do not try to pry it off with a knife or other sharp object - this may damage the case.

If the "top" won't budge, the panel is likely stuck. You'll need to loosen it by applying pressure on the cover from different sides. Lightly tapping it with a mallet is also acceptable. It's important not to overdo it and damage the housing. This is how to remove the top cover on Ardo washing machines. Using this procedure, you can easily open many modern models from other brands—the removal principle remains the same.

What kind of repair is this needed for?

If you want to service and repair your "home assistant" yourself, you'll need to figure out how to disassemble its "shell." The need to remove the top cover arises in almost any breakdown of the automatic machine. We'll tell you which parts and components can be repaired or replaced if you remove this body panel.

After removing the "top," you'll have access to the inlet solenoid valve. This part may need to be checked if the machine isn't receiving water or if too much liquid is being added. The element is located in the right corner, near the rear panel. By removing the cover, you can test the coil and other parts of the mechanism. The sensor can also be completely replaced if necessary. If the detergent drawer isn't flushing well, check the dispenser tube. By removing the "top" as described, you can clean the tube. This also makes it easy to replace the part if necessary.

Another component located under the top panel is the pressure switch. The level sensor measures the amount of water in the tank and signals the "brain" when to start or stop filling or drain the soap solution. By removing the cover, you can easily check the component's functionality and replace it if necessary. Under the cover is a counterweight—a concrete block that ensures the stability of the Ardo washing machine. This component rarely breaks, but if the weight is damaged, it can also be repaired by removing the top.

After removing the top cover, access to the main control module of the Ardo washing machine will open.

Removing the lid is necessary if you need to access the tank. However, in this situation, you'll need to remove not only the top, but also the back panel, the front wall, and disconnect many internal components from the plastic tank: the heating element, motor, drain pump, hoses, etc. However, the disassembly procedure begins with the top. Therefore, knowing how to remove the top of the housing will be useful in many situations. It's a starting point for repairs of varying complexity.
