How to remove the back panel on an Electrolux washing machine?

Removing the rear panel of an Electrolux washing machine may be necessary when checking the motor brushes, replacing the drive belt, or inspecting the pulley, for example. While disassembling the housing is generally straightforward, it can be challenging on certain Electrolux (and Zanussi) models. In this review, we'll explain how to remove the rear panel of an Electrolux washing machine.

Is the back panel removable?

More often than not, this task simply doesn't arise: most such devices are equipped with rear panels secured with simple screws. Some brands, particularly Indesit, are equipped with special hatches that, when removed, allow access to the interior of the machine. A number of models Electrolux It is not designed at all for dismantling the panels in the rear and side parts of the case; the entire structure looks like a visually indivisible box without a back wall.

However, if you have an Electrolux washing machine, it's logical to ask: what is the procedure for removing the back panel in this example? The washing machine's design simply doesn't include a back panel, and the housing box in this part is undivided.

If you need to get to the belt or other parts, you will need to split the entire body in half.

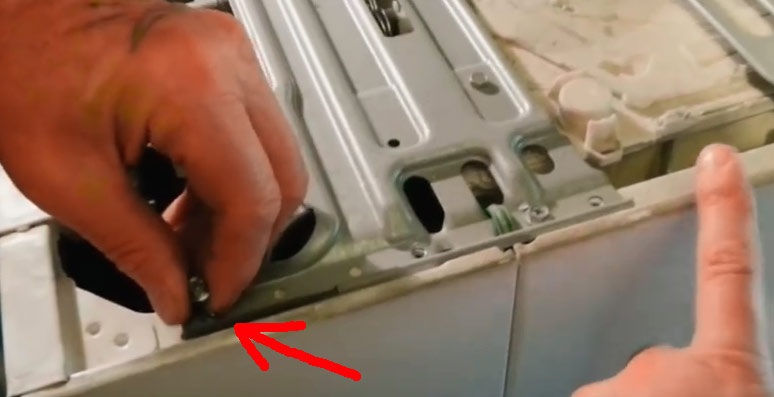

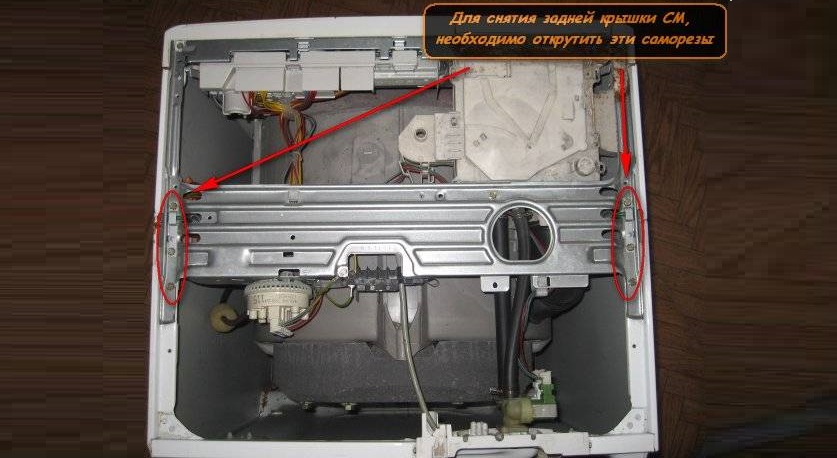

Upon closer inspection of the washing machine's body, you'll discover a thin gap running along the center of the side panels—this is where the two halves of the Electrolux washing machine's body meet. If you need to disassemble the body, you'll need to perform the following steps:

• remove the top panel (the cover is screwed on with screws located at the back);
• release the special clamps;

• split the body in two.

Removing the back panel or splitting the machine's body isn't always practical. Simply replacing the drive components doesn't require disassembling the entire washing machine; simply removing the top panel is sufficient.



How to get to the drive mechanism?

If you have an Electrolux washing machine with a belt drive, it's possible that the belt will stretch or slip sooner or later. If this happens, replacing the damaged component will be necessary to restore the machine's functionality. Let's look at how to do this with minimal time and effort if the back panel simply won't come off the main body. Before starting any repair work, first disconnect the machine from the power source. Following this, the actions will be as follows:

• separate the top part of the case by unscrewing a couple of fixing screws;
• Tilt the car forward slightly, but don't overdo it. Then, reach your hand up from above and remove the drive belt from the pulley located behind the rear panel.
• remove the removed belt from the car;
• With the new belt in hand, tilt the machine toward you and carefully slide the belt into place, first sliding it onto the motor shaft. This may take several tries, so the best method is to have an assistant look underneath the washing machine and monitor the movement of the elastic band.
• Pull the drive belt onto the pulley (metal wheel) of the drum. Start by stretching it at one end of the wheel, then rotate the drum by inserting your hand into the washer's opening, and this will cause the belt to "settle" into place;
• Make sure that the belt is positioned strictly along the end of the pulley, without sliding to the side;
• If the rubber band is displaced, you should adjust it by hand, controlling the position of the drive mechanism element on the motor shaft.

Next, you need to check the Electrolux machine's functionality. Plug it in and run it in spin mode to check. If the drum starts spinning, you've replaced the belt correctly. After this, replace the top panel, secure it with screws, and your washing machine is ready for use.
