How to install the drum of an Indesit washing machine?

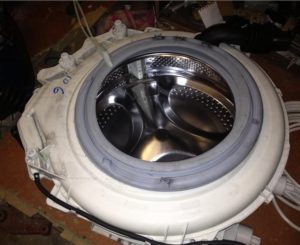

How to install the drum of an Indesit washing machine Often, when bearings and seals need to be replaced in a washing machine, owners remove the drum themselves and hand the unit over to professionals for repair. Technicians disassemble the drum, replace it, and hand over the repaired assembly to the customer. Removing the drum and tub yourself and then installing them allows owners to save money on repairs. How do you install the drum on an Indesit washing machine to get your "home helper" working again?

Description of the drum installation process

If you removed the tank, you'll have a good idea of how to reinstall the drum. First, connect the pressure switch hose to the fitting. Afterwards, the assembly unit is inserted into the washing machine body so that the hole in the front wall for the hatch coincides with a similar hole in the drum. At the same time, the tank is suspended on two springs.

Next, replace the machine's control panel. It should fit into the grooves, after which you can secure it with bolts. Next, treat the edges of the sealing cuff with liquid soap, after which the rubber band is pulled over the protrusion on the front wall of the housing. Note that if the sealing cuff was completely removed when removing the tank, you will first need to replace it on the tank, secure it with the inner clamp, then pull the edge of the seal over the front wall and secure it with the outer metal clamp.

Next, lay the Indesit washing machine on its side and begin connecting the previously removed components. The components are installed through the bottom of the machine.

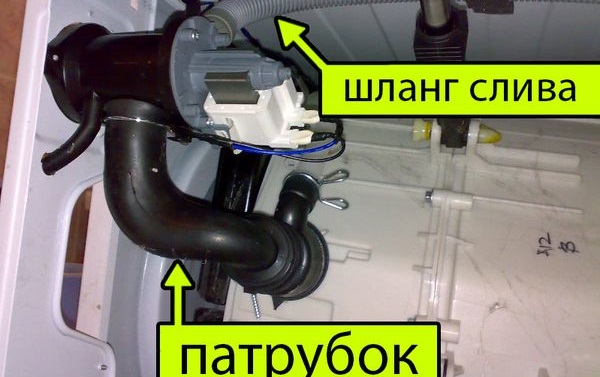

Connect the drain pipe to the tank and secure it with a clamp.
Secure the dampers well.
Place the electric motor in place and tighten it with bolts.
Connect the wiring to the engine and drain pump.
Secure the heating element (TEN) and temperature sensor, connect the power wires.
If the machine has a belt drive, place it on its feet and install the pulley through the rear panel of the housing, tighten the drive belt.
Replace the water level sensor and connect the wiring that powers the pressure switch. Also, secure the hose, ensuring it is not clogged.
Install a detergent dispenser.

Make sure that all hoses and pipes connected to the tank are secured with clamps.

Next, install the water inlet valve. Connect the inlet hose and all fittings to the element. It's important to check that the valve is securely installed and doesn't wobble.

The Indesit washing machine is almost assembled. Now it's time to install the counterweight and secure it with bolts. Next, install the top cover and secure it with two screws. Next, all that's left to do is close the access hole in the back of the washing machine and connect it to the water supply and sewerage system.

Problems with reassembling Indesit washing machines

Reinstalling the drum and connecting the remaining parts and components of the automatic washing machine is no problem for a skilled technician. However, an inexperienced user attempting this for the first time may encounter some difficulties. What are these difficulties?

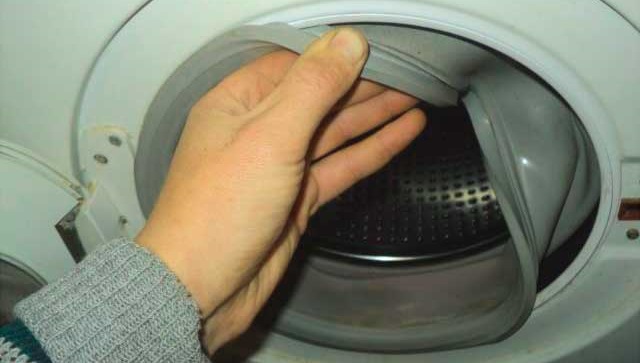

It's difficult to fit the seal over the edges of the tank and the groove on the front wall of the machine. The marks on the sealing rubber and the housing must be aligned. A "stubborn" seal is quite tight. It's best to generously apply liquid soap to lubricate the edges of the sealing rubber. The slippery edge of the seal will slide over the ledge much easier. After installing the seal, make sure the door closes freely. If anything obstructs it, the seal is not installed correctly.
It's difficult to secure the engine in place. To be honest, doing this work from below isn't very convenient. Professionals attach the motor in advance and immediately insert the tank with the motor attached to it into the body. Of course, the assembled unit will be a bit heavier, but later you won’t have to “mess around” with the engine separately.
Installing the drive belt is fairly simple, but there's a small catch. It's important to align the grooves on the belt with the threads on the motor pulley before smoothing it over the drum wheel. Otherwise, the belt may slip off during the first wash.
Sometimes connecting the heating element wiring can be challenging. If you have even the slightest doubt, be sure to consult the diagram. Incorrect wiring can have serious consequences.

In principle, installing the tank and drum into an Indesit washing machine is not difficult, especially if you've already removed it. Reassembly is performed in reverse order, following the recommendations described above.
