How to install a Hotpoint-Ariston dishwasher

You can install a Hotpoint-Ariston dishwasher yourself, without the help of a professional. The process is fairly simple, but there are a few nuances to consider. Let's look at how to connect the dishwasher to the utility lines, what tools you'll need, and the best location for the dishwasher.

Prepare a place for the dishwasher

First of all, you need to think about where the dishwasher will be located. When choosing a location for a dishwasher, be sure to consider the distance from the water supply and sewerage system, the proximity to other household appliances, and the condition of the floor covering. Let's look at each point separately.

• Distance from utilities. There must be a dedicated 220V power outlet near the dishwasher. Extension cords are not permitted. The optimal drain hose length is 1.5 meters, with a maximum of 2.5 meters. Therefore, the sewer pipe should be located no further than this distance. Otherwise, the load on the dishwasher pump will be increased, and the machine will fail sooner.
• Avoid installing your dishwasher near heat sources. Placing it near older electric stoves is a bad idea, as their casings get very hot. Modern stoves get virtually cool, so this placement is generally acceptable.
• Avoid placing the dishwasher next to the washing machine, as the appliance's body vibrates excessively during the spin cycle, which can damage the dishwasher. If the washing machine is installed in a separate niche, placing it next to the dishwasher is acceptable.
• It's best not to place the dishwasher on the edge of the kitchen. Dishwashers are installed under the countertop, so you'll need to figure out how to cover the side of the dishwasher. This adds extra expense.
• The floor under the dishwasher must be level and solid.
• If you are purchasing a built-in dishwasher, you need to pay close attention to the dimensions of the case and the size of the niche in which you plan to install it.

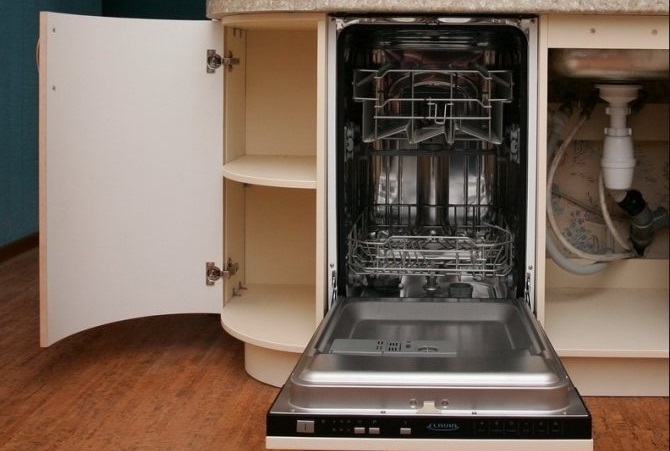

The optimal location for placing a dishwasher is to the left or right of the sink.

Installing the machine near the kitchen sink ensures proximity to utility lines. It will also make loading dishes from the sink into the machine easier. Therefore, this placement option is recommended first.

What needs to be prepared for PMM installation?

Connecting a dishwasher requires minimal tools. In some cases, none are needed at all, for example, if a dishwasher was previously installed in the same space and all utility connections are in place.

When installing the machine and connecting it to the water supply and sewerage system, you will need the following tools:

• adjustable wrench;
• pliers;
• screwdriver;
• building level.

You will also need to purchase consumables such as:

• FUM tape;
• plumbing mounting tape;
• a siphon with a branch (if there is a “bend” without a fitting under the sink), or a tee on the sewer pipe (when there is no point for connecting the drain hose);
• tee tap for water supply, diameter 3/4;
• flow-through mesh filter.

The dishwasher's drain and inlet hoses are included with the appliance. Make sure they are long enough to connect to the water supply and sewer lines. Extending the hoses is not recommended, as this can cause leaks. It's best to purchase a new, longer hose immediately if the original one is too short.

If you need to make a socket for the machine, you will need to purchase:

• copper wire (three-core, 2.5 mm cross-section);
• socket with a moisture-proof cover;
• residual current circuit breaker;
• voltage stabilizer.

Installing an electrical outlet requires some electrical experience. If you don't have any experience, it's best to entrust the job to a professional. You'll need a hammer drill for cutting grooves in walls, a cable duct, a screwdriver with an indicator, and wire cutters.

Installing a dishwasher with your own hands

If you decide to connect the dishwasher yourself, be sure to read the instructions for the appliance. The manufacturer provides recommendations for installing the dishwasher in the user manual, and each model may have its own nuances. If you seriously violate the basic rules, you may be denied further warranty service.

The Hotpoint-Ariston dishwasher manual specifies the dimensions for installation and provides recommendations for first-time use of the dishwasher.

Almost all dishwashers are connected to a cold water supply. However, some models can be connected to a hot water supply. This feature is noted in the appliance's instructions.

The dishwasher is connected to the water supply via a special tee valve. It fits into the pipe, and the inlet hose is connected to a free outlet. This device allows you to shut off the water supply to the dishwasher if necessary.

Before installing the tee valve, be sure to turn off the cold water supply to the house. Apply a small amount of FUM tape to the threads, then install the valve into the pipe. The inlet hose is screwed onto the outlet by hand; it has rubber seals, so no additional seals are needed at the joint.

It is recommended to install a special mesh filter in front of the dishwasher's inlet hose. This will protect the machine from suspended particles found in tap water.

Next, you need to connect the drain hose. It should have a bend 50-60 cm above the floor. There are two options for doing this:

• connect the sleeve to the siphon;
• Connect the drain hose to the sewer pipe directly through a tee (this method is usually chosen if the machine is located far from the kitchen sink).

It's best to connect the dishwasher's drain hose to the siphon. If your kitchen has an elbow without an additional outlet, replace it with a new one. Attaching the drain hose to the machine itself is very simple; the instructions explain the entire process in detail.

Setting up a power outlet for a dishwasher is a more complex task. A separate, sufficiently powerful power line will need to be installed from the control panel. A voltage stabilizer is essential to protect the expensive appliance from power surges.

The dishwasher socket must be grounded and have a high level of moisture protection.

The power cord for most Hotpoint-Ariston dishwashers is one and a half meters long. Therefore, it's important to install the outlet close to the dishwasher. Using an extension cord is unsafe.

After connecting the dishwasher to the power supply, you need to level its frame. To do this, adjust the appliance's feet. The front panel can only be hung after the dishwasher's position has been adjusted. Everything needed for installation is included. You'll need to secure the strips with bolts and attach them to the dishwasher door.

Connecting a dishwasher yourself isn't all that difficult; even a novice can handle it. The key is to read the dishwasher's instructions and strictly follow the manufacturer's recommendations. The first time you run the appliance, it's in test mode, without dishes, but with detergent.
