To ensure a long-lasting dishwasher life, you need to not only choose the right model and use it carefully, following the operating instructions, but also install it in accordance with all manufacturer recommendations. That's why installing a Miele dishwasher should be done either by a service center or by yourself, following these detailed instructions.
Before installing the PMM
Today we'll look at dishwashers that can be installed in a kitchen alcove. There are two different types.
Fully built-in units, on which a furniture front is installed so that the appliances look like a regular kitchen cabinet.
Partially built-in, when neither the door nor the control panel is hidden by the facade, so the machine stands out from the overall design of the kitchen.
Before purchasing and connecting a dishwasher, it's crucial to calculate the niche dimensions and select a suitable unit. Miele offers customers the following options:
the smallest PMM is 81 centimeters high and 45 centimeters wide;
the average model – the height is still the same 81 centimeters, but the width is already 60;
Finally, the largest model reaches 85 centimeters in height and 60 centimeters in width.
Be sure to take into account the gap between the walls of the niche - 2 centimeters from the dishwasher.
To avoid getting into an unpleasant situation, be sure to take all the necessary measurements of your kitchen cabinet before going to the store. All you need is a regular tape measure. Immediately after purchase, study the installation plan and operating instructions provided by the manufacturer to avoid errors in installation and use of household appliances.

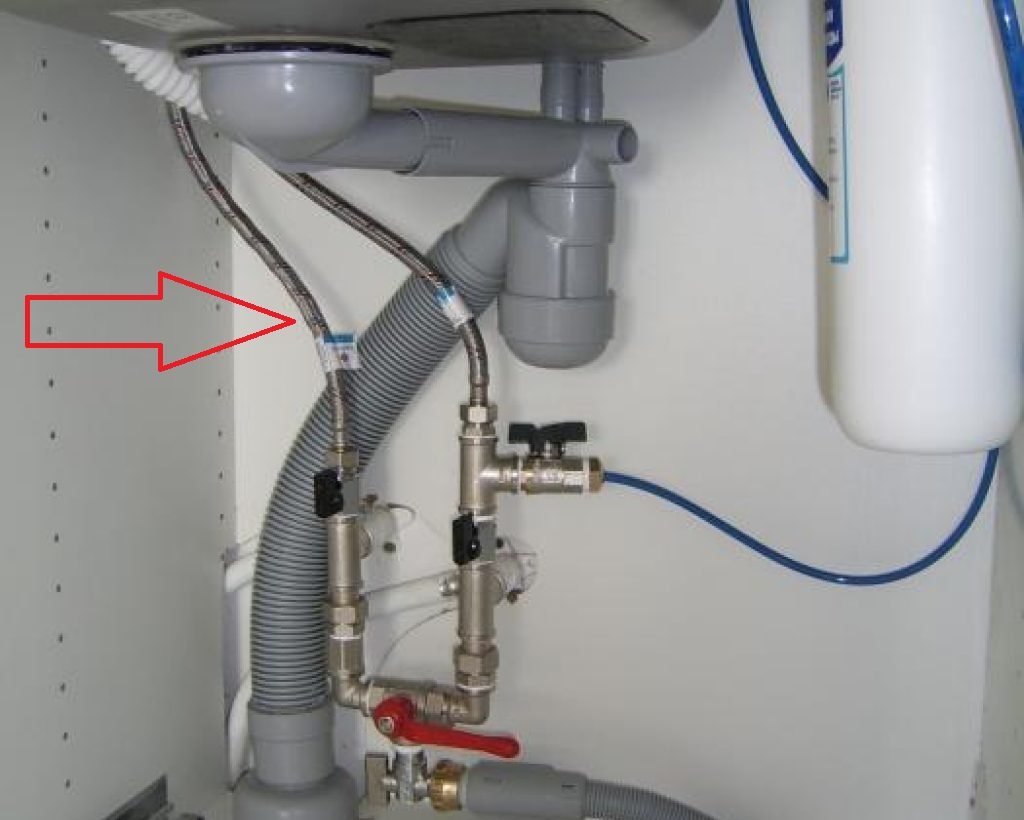

Let's gather everything we need
Now that your brand-new "home assistant" has been purchased and transported home, it's time to install and connect it. For this, you'll need the following tools and materials:
a regular minus screwdriver, as well as a hex screwdriver;
a drill or a screwdriver that can accommodate a 20 mm drill bit;
ordinary scissors;
simple pencil;
FUM tape;
roulette;
building level;
In special cases, an electric jigsaw may be needed.
When installing a dishwasher, there are a number of important considerations to keep in mind. These include:
The location of cold and hot water pipes, as well as the proximity of the sewer system. Conveniently located utilities greatly simplify DIY installation;
Proximity of the outlet to the dishwasher. This is crucial, as energy-consuming equipment like a dishwasher should not be connected to the power outlet through an extension cord.
Of course, you cannot begin installing electrical equipment without first turning off the electricity and shutting off the water supply to the riser.
We install a dishwasher in a niche
Let's get down to the most important part – installing your Miele dishwasher. To do this, you must follow the instructions carefully.
Install the dishwasher close to the niche to make it easier to connect the appliance.
Prepare the niche and fasteners as indicated in the installation plan.
Connecting to the water supply and sewerage system depends directly on the dishwasher type, as some models require only cold water, while others require both cold and hot water. Depending on the dishwasher's features, connect the water intake hoses to the water supply.
Please note that the permitted range of water supplied to the dishwasher is from 50 to 1000 kilopascals.
Now connect the drain to the sewer.
Carefully install the unit into the niche prepared for it.
If you have purchased a fully built-in machine, then attach the front panel.
The instructions are relevant for a situation where the house has a shut-off valve with an external thread of size ¾. If you don't have a ¾ shut-off valve, you'll need to call a qualified technician who can install a pressure-reducing valve if the maximum pressure in your water supply system exceeds the recommended level.
The most common mistakes made by beginners
Although installing a dishwasher yourself is quite simple if you follow the instructions carefully, beginners still often make serious mistakes. To avoid this, we've prepared a series of tips on how to properly install a Miele dishwasher.
Don't use a screwdriver to tighten screws. It's quicker and easier, but the excess energy from the tool can damage not only the fastener itself but also the façade. Therefore, use only safety screwdrivers.
Make sure that the sewer drain is no more than 1-1.5 meters long, otherwise there is a risk of waste liquid stagnation in areas where the flexible wiring sags.
Do not block the socket with the dishwasher, as you should always have easy access to the machine's power plug.

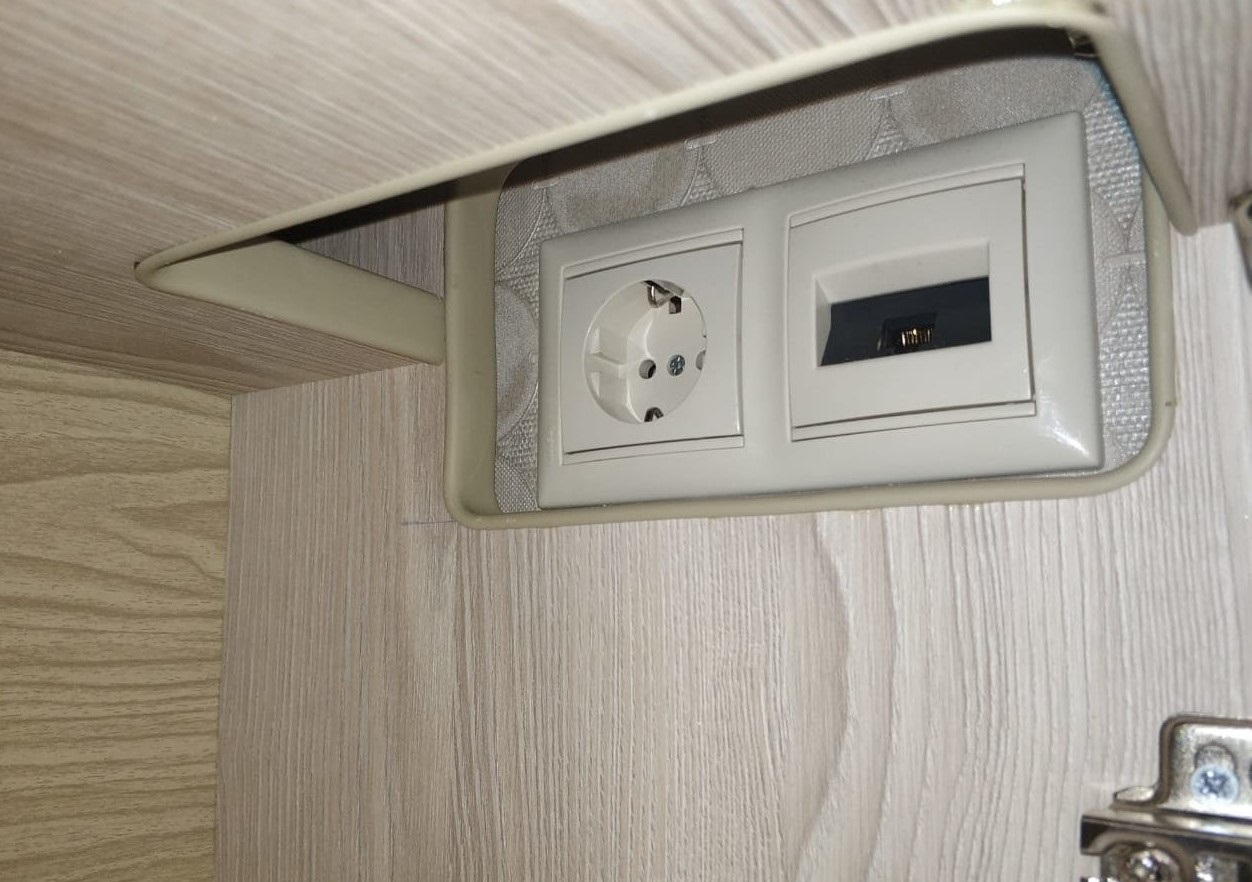

Do not install the outlet lower than 25 centimeters from the floor. This is necessary for the Miele WaterProof feature, which protects the appliance from leaks, to function properly. A high outlet eliminates the risk of moisture ingress due to flooding or a water leak.
Avoid buying third-party corrugated drain hoses, as their folds often accumulate dirt particles. It's best to use genuine dishwasher parts and components provided by the appliance manufacturer.
Avoid kinks, excessive tension, or compression of the hoses.
Do not shorten the inlet hose, as this component in the Miele dishwasher contains a live electrical cable. Its damage can be extremely dangerous not only for the “home helper”, but also for you.
It is not advisable to place the dishwasher next to an oven or any heating appliance, as this will cause the equipment to overheat.
Never use an extension cord or multiple outlets, as this can overload the cord and even cause a fire. It is recommended to install a separate, grounded, and moisture-protected outlet for the dishwasher.
Immediately after installation, check the tightness of the connections by slowly opening the water tap and checking for leaks.
This is a basic, but far from exhaustive, list of problems that can arise from improper installation. Therefore, if you're unsure of your abilities, it's always best to call a professional to install your Miele dishwasher yourself.
