How to hang a washing machine on the wall?

For owners of small apartments, the issue of placing large appliances is a pressing one. Installing a washing machine in the bathroom of a "Khrushchev-era" apartment is often impossible. Connecting a washing machine in the kitchen is also impossible, as the dishwasher takes up space there. A wide hallway or a separate pantry might be helpful, but then the problem of connecting utilities arises. There's an unconventional solution: mounting the washing machine on the wall. Of course, many consider this method dangerous, but if done correctly, there are no risks. We'll figure out how to install a washing machine "in the air" and explain all the nuances.

Buy a special machine

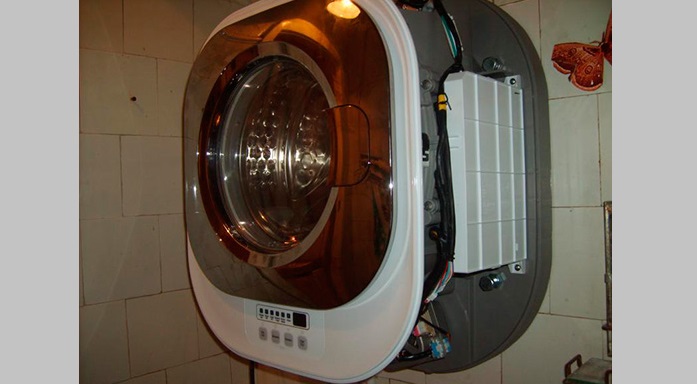

You can even mount a standard, full-size front camera. We'll definitely tell you how. To make your task easier, you can purchase a special wall-mounted washing machine. For example, the Daewoo Electronics DWD-CV701PC is a very popular model. This automatic washing machine features a stylish design, making it a natural fit for any interior. The washing machine's instructions provide detailed instructions on how to hang it on the wall. Special mounting brackets are also included with the machine, making mounting even easier.

Hanging washing machines is only permitted on "load-bearing" walls; plasterboard partitions are not suitable for such purposes.

Wall-mounted washing machines are easy to hang, compact, and stylish. When suspended, they won't get in the way or spoil your decor. However, the Daewoo Electronics DWD-CV701PC model has two significant drawbacks:

• Small load. You can wash no more than 3 kg of cotton items at a time. This is very little even for a family of two, let alone couples with children;
• Difficulty of repair. These washing machines are not very common, so spare parts are difficult to find. You'll have to order components from official websites and wait for a while for the parcel to arrive. Due to the design and the shortage of parts, not every repairman will agree to repair the machine.

However, if you don't want to mount a full-size unit on the wall, you can consider compact, stylish models. There's plenty to choose from – these types of machines are offered by various manufacturers. We'll tell you about the most popular wall-mounted models.

Examples of wall-mounted machines

Wall-mounted washing machines from the Korean manufacturer Daewoo are considered ideal in terms of price/quality ratio. Chinese models from Xiaomi are also quite popular. We'll tell you what you can choose from.

1. The Daewoo Electronics DWD-CV701 PC washing machine has already been mentioned as one of the highest-quality and most affordable options. It weighs only 17 kg, and its width, depth, and height are 55, 29, and 60 cm, respectively. The drum can hold a maximum load of 3 kg per cycle. It features a digital display. The maximum spin speed is 700 rpm. Six special programs include programs for baby clothes, delicates, and cotton. The housing is leak-proof, and there's a system to control imbalances and excess foam. The model costs approximately $210.

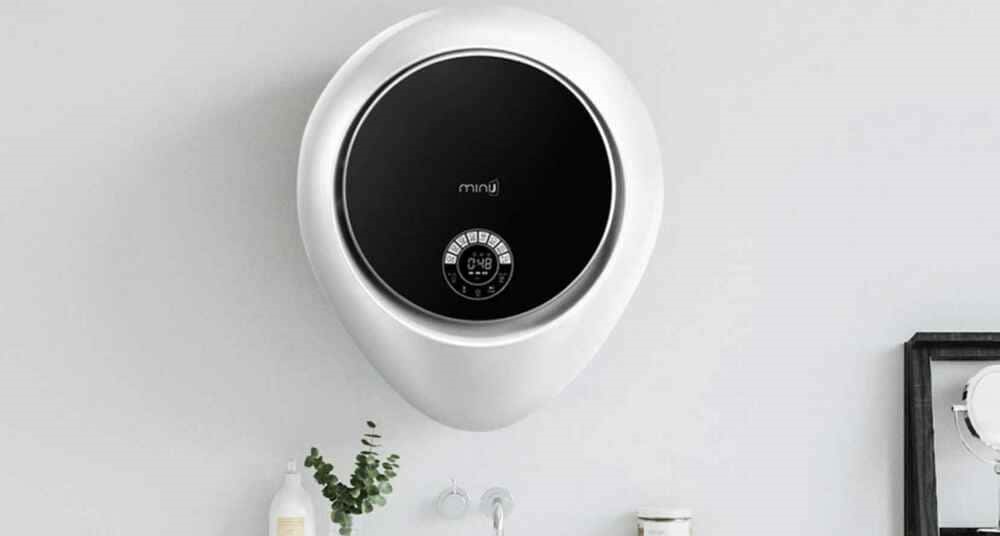

2. The incredibly stylish Xiaomi MiniJ Wall-Mounted White. This front-loading washer holds 3 kg of laundry. You can control the cycle from your smartphone via Wi-Fi. It's equipped with a reliable inverter motor, ensuring virtually silent operation. It weighs 24 kg and measures 58 x 35 x 67 cm. It has a maximum spin speed of 700 rpm. It has 8 preset programs, including a self-cleaning drum mode. A delayed start timer is also included. The average price of this wall-mounted washer is $420.
3. The Daewoo Electronics DWD-CV702W is another wall-mounted front-loading washer with a 3 kg capacity. It can handle the spin cycle slightly better, reaching up to 800 rpm. It features a digital display and is partially leak-proof. It has six pre-programmed wash cycles. It has an "A" energy rating. Price: approximately $230.

If a three-kilogram load isn't enough, you'll have to hang a standard 5-7 kg front-loading washer on the wall. A narrow model with a depth of 40-45 cm is typically chosen. We'll explain what to do in this case.

Let's mount a regular washing machine on the wall

If you really want, you can also mount a narrow front-loading machine to the back wall of your bathroom. It will fit perfectly over the toilet cistern and won't get in the way of your household. When hanging a full-size washing machine, it is important to secure it as securely as possible using strong fasteners. First, you'll need to build a special metal frame for the machine. It's made from a single 50mm angle. The joints need to be welded, a crossbar installed underneath along the back wall, and the corners reinforced with triangle-shaped plates.

The frame for the washing machine is attached to the wall with six anchor bolts, measuring 12×100 mm.

A rubber sheet at least 2 mm thick must be placed between the metal frame and the wall. It's also important to provide a support with a floor support. The shelf for the washing machine is cut from 12 mm plywood. The plywood shelf is placed on the frame over a 4-6 mm thick rubber sheet. A special anti-vibration mat with a non-slip layer can be placed under the machine to cushion vibrations and absorb noise. It's also possible to create rubber fittings with recesses for the machine's feet. The drain and inlet hoses are routed through the gap between the frame and the appliance.

The design will look like this:

Even when running at maximum speed, the machine won't wobble. All vibration is absorbed by the rubber feet and a special mat. If done correctly, hanging the washing machine on the bathroom wall poses no danger.
