How to replace the drum in a Candy washing machine

Most Candy washing machines are equipped with non-detachable drums. The manufacturer recommends replacing the entire unit in the event of a breakdown. This is a fairly labor-intensive job, but you can do it yourself at home, without the help of a professional.

How do you replace the drum in a Candy washing machine? We'll explain how to prepare for the repair and what tools you'll need. We'll also explain the procedure for disassembling the washing machine.

Getting ready to repair the machine

The first step is to prepare the tools you might need during the work. This is a standard set. You should have the following on hand:

• slotted and Phillips screwdrivers;
• screwdriver;
• hammer;
• pliers;
• side cutters;
• set of socket heads;
• hexagons.

The next stage is preparing replacement components. The drum-tank unit is purchased for a specific model of Candy washing machine. We recommend ordering spare parts from official brand representatives. When purchasing, be sure to refer to the serial number and the Candy washing machine name.

Replacing the drum requires almost complete disassembly of the washing machine. Therefore, it's recommended to prepare a suitable work area. Ideally, move the machine to a utility room where the repair will be as comfortable as possible.

If this isn't possible, clear out 2-3 square meters in the apartment. Cover the floor with a blanket. Lay out the prepared tools nearby. Once you've set up your workspace, you can begin the renovation.

We remove the parts that prevent the tank from being removed.

The next step is preparing the washing machine. To replace the drum-tank assembly, you will need to almost completely disassemble the washing machine. First, disconnect the washing machine from the power supply by unplugging the power cord. Then, close the shut-off valve on the water supply and disconnect the drain and inlet hoses from the machine.

Next, you'll need to remove any remaining liquid from the tank. Here's how:

• take a large container with low edges;
• place it under the washing machine, in the location of the dust filter;
• Gradually unscrew the filter from the machine – water will begin to flow into the container.

Then, the drain filter should be rinsed, dried, and set aside. It should only be screwed back in after the repair is complete. It's also a good idea to immediately clean the hole created by removing the "trash can." Now you can begin disassembling.

It is better to take photographs of all the steps taken - this will help you correctly reassemble the automatic machine after the repair is completed.

To remove the drum-tank assembly from the Candy washing machine, you need to:

• unscrew the two bolts holding the top panel of the machine;
• remove the housing cover (first you need to move it back, then pull it up);
• remove all screws securing the back wall of the washing machine housing, remove and put away the panel;
• remove the drive belt from the pulley;
• remove the detergent drawer from the washing machine;
• loosen the clamps of the pipes connected to the dispenser, remove the tray hopper from the machine;
• Unscrew the screws holding the washing machine control panel, carefully hang the dashboard on the service hook on the side of the washing machine (it is not necessary to disconnect the wires from the electronic module);
• remove the outer clamp securing the hatch cuff, insert the seal into the drum;
• remove the inner clamp of the cuff through the top and pull the rubber out of the washing machine;
• Disconnect the wires connected to the washing machine's drum (before doing this, be sure to photograph the connection diagram to avoid mistakes during reassembly). This concerns the power supply for the heating element and the thermistor;
• unscrew the nut securing the heating element and press the central bolt inward;
• Using gentle, rocking movements, remove the heating element from the machine;
• Having dealt with the fasteners, remove the counterweight (the weight is located on top and serves to give the machine stability);
• Carefully lower the machine onto its right side and look underneath it (if there is no bottom, great; if there is a bottom, you will need to remove it)
• remove the bolts located on both sides of the debris filter, press on the snail so that it falls into the washing machine body;
• remove the connector with the wires from the drain pump;
• Having dealt with the clamps, detach all the pipes from the pump;
• remove the pump from the washing machine;
• unscrew the screws holding the washing machine motor;
• remove the electric motor from the housing (to do this, you need to move the part back a little and pull it down);
• Unscrew the shock absorbers holding the tank from below.

To remove the tank from the Candy washing machine, you need to disconnect all wires, pipes, and parts connected to the tank.

Now there will be nothing in the way of removing the unit. Removing the drum from the washing machine on your own is difficult, so it's best to call a helper. Pulling out the drum with four hands is much easier.

We remove the faulty tank and install a new one.

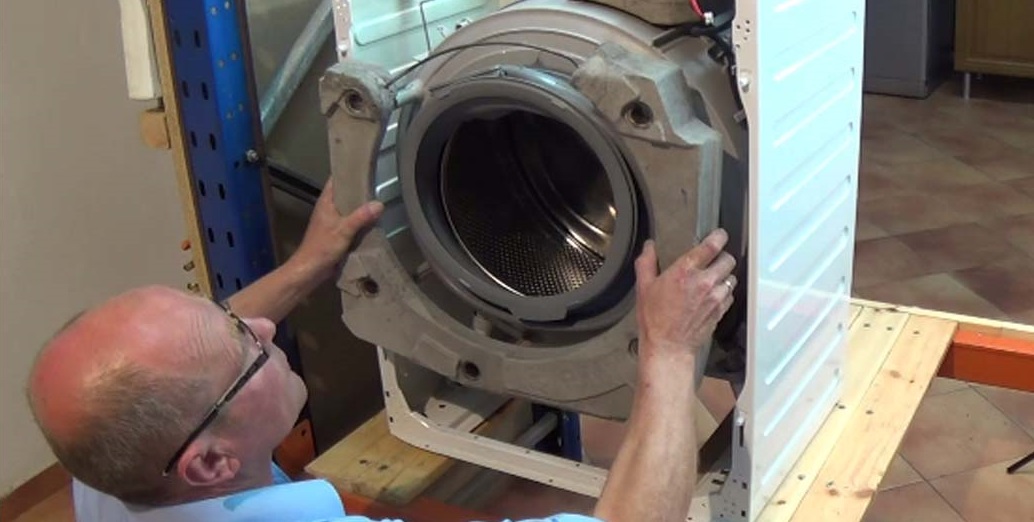

Now the drum-tank assembly is completely free and can be removed without any obstructions. The drum can be removed through the top of the washing machine. The new components are installed in the same manner.

Removing the drum alone is inconvenient. Even without the upper counterweight and motor, the assembly will be quite heavy. Therefore, it's best to call an assistant and use four hands to lift the drum.

After removing the unit, place it on a flat surface. Next, you'll need to disconnect the shock absorbers and front counterweights from the old tank. These parts will be installed on the new tank.

Now the new drum, along with the front counterweights and shock absorbers, is loaded into the washing machine body. It's important to proceed carefully to avoid damage. The element is secured inside, and then all the previously removed wires, pipes, terminals, and components are connected to it one by one.

The drum seal is inserted through the loading hatch. The drain hole should be positioned directly below. Next, the edges of the seal are pulled over the drum. The rubber seal is secured with an inner and outer compression clamp.

After securing the drain pump, motor, heating element, and drive belt, reassemble the washer body. Replace the control panel, back panel, and top cover. Before washing any items, run a test cycle without any load.

This should be a standard program, with all wash stages: water intake, heating, spinning, and draining. During the test cycle, carefully monitor the machine's operation and ensure there are no leaks. If all goes well, the repair is complete.
