How to change the cuff in an Atlant washing machine?

If you handle household appliances carelessly, don't supervise pets who like to chew on rubber parts, and make other mistakes, you can't avoid damaging the drum seals, requiring repair. Replacing the door seal on your Atlant washing machine should be done as soon as possible, regardless of the underlying cause. Otherwise, a leak will result. Let's look at the recommendations experts offer in such cases.

We buy a brand new part

This should be done first. The best solution is to remove the damaged part and bring it to the store to find a similar product. The salesperson will offer the same rubber or an option with as close characteristics as possible. Simply provide the part number of the old gasket.

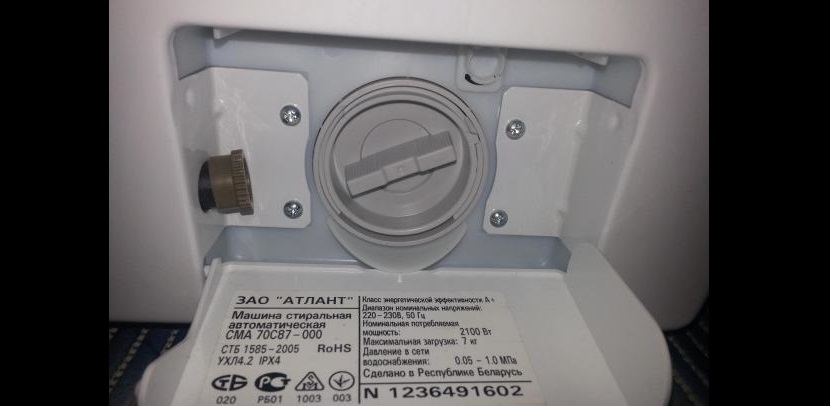

Unfortunately, it's not always possible to remove the part. In such situations, the washing machine's model and markings are a guide when choosing. Detailed information (batch number, series, production date, etc.) about household appliances is provided on the “nameplate” on the waste filter hatch. It is recommended to take a photo of the factory label in order to show it to the manager in the store.

Important! In addition to the seal itself, for a quality repair, you will need pliers, a flat-head screwdriver, a foam sponge, and liquid soap.

How to properly remove a damaged cuff?

First, the damaged element must be removed. The gasket is secured with clamps, both inner and outer. These are removed by loosening the latch. We'll describe the procedure below.

1. Find the outer plastic ring, use a screwdriver to hook the rim spring, pull the retaining element to the side and remove the clamp.
2. Remove the bottom panel of the washing machine, which serves a decorative function and hides the debris filter.
3. Remove the powder receptacle.
4. Unscrew the bolts holding the front of the case and set the front panel aside. Be careful not to tear the door lock cable.

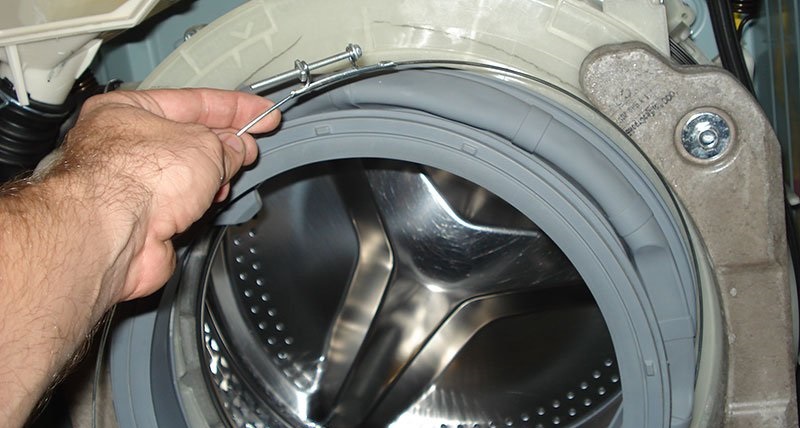

5. Pry up and remove the inner plastic ring in the same way as the outer one.
6. Carefully remove the cuff without damaging other elements.

Once the seal is removed, don't throw it away immediately. It's worth carefully inspecting the part and looking for any mechanical damage. This will help determine the exact cause of the seal's failure and prevent similar failures in the future.

Installation of the purchased part

Installing a new cuff requires more skill than removing the old one. The rubber must fit precisely into the grooves, which will require some force. However, don't panic or worry about failure; simply follow all the instructions developed by the experts. How do you replace a cuff?

• Cleaning the mounting surface. It's recommended to use a sponge with liquid soap for this purpose. The grooves should be free of any dirt. After washing and cleaning, do not wipe the surfaces dry to make the installation process easier.
• Comparison of the mounting marks on the rubber seal with the markings on the body of the washing machine.
• Installation of the gasket in a special recess, stretching it around the entire circumference of the drum.
• Fixing the internal clamp, assembling the body with screws, installing the decorative panel.
• Pulling the outer edge of the sealing rubber onto the drum protrusion.
• Fixing the outer clamp in the recess with a spring downwards, stretching the rim around the circumference.

Therefore, replacing the seals in an Atlant washing machine requires only a few steps. Next, it's important to check the seal itself. Run a short wash cycle, for example, selecting rinse without spinning. While the machine is running, it's strongly recommended not to leave it to ensure a leak is detected promptly and immediate action is taken to prevent the consequences of a flood.
