How to replace the drain pump on an Atlant washing machine?

How to replace the drain pump on an Atlant washing machine Long-term use of an automatic washing machine often leads to drainage system failure. A corresponding error code displayed on the machine's display may indicate the problem. Replacing the drain pump on an Atlant washing machine is a simple process, so you can do it yourself. You can order all the necessary parts and a new pump directly from the manufacturer or purchase them from specialized stores.

Do I need to touch the pump?

Before replacing the pump, it's important to identify its malfunction. This requires a self-diagnosis of the washing machine itself, its internal components, and elements. In addition to a faulty drain pump, other malfunctions may be detected, requiring minor repairs or complete replacement.

Make sure your washing machine is fully executing the set washing programs. Almost all modern appliances are equipped with a self-diagnostic system. If a malfunction occurs, the washing machine will notify you with a corresponding code displayed on the digital display. All possible combinations are easily deciphered using the appliance's manual, which will help identify the root cause of the problem—a faulty drainage system.

Important! A faulty drainage system causes the washing program to stop during the draining phase. The machine freezes and, after several attempts, displays an error message on the screen.

First, check the spin mode setting and whether it's included in the selected program. If it's missing from the program or has been reset, reconnect it. Next, check the external drain system: the hose should be positioned above the tank and free of kinks and pinches. If the hose is positioned correctly, according to the instructions, you should check for clogged filters by disconnecting it from the water pipes. Direct the hose into the sink or bathtub and turn on the spin cycle. If the machine drains freely, the filters are clogged. Otherwise, the problem lies with the washing machine's drain pump.

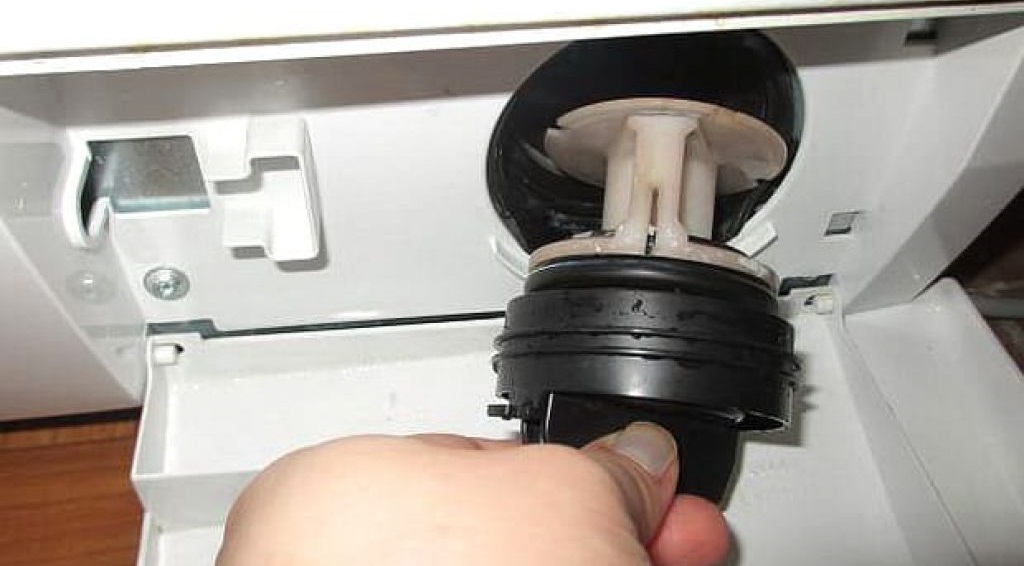

If the problem is a clog, the filters need to be cleaned. To do this, remove the protective panel located at the bottom, in front of the housing (it resembles a small hatch). Prepare a suitable container for the liquid, suitable in size and volume. Unscrew the drain filter and drain all the water. Clean any excess dirt from the inner walls and the filter itself. start by cleaning the filter

Inspect the interior with a flashlight. Check the impeller's rotation—if it rotates freely, there's no problem with the pump. If it's static or difficult to rotate, begin checking the pump for proper operation.

Repair instructions

Atlant washing machines don't have complicated internal components, so you can replace the pump or any other part yourself. To perform repairs, you need to understand all the design details and the work involved, have sufficient time, and have a minimum of the necessary tools. Replacing the pump doesn't require removing all the parts, the casing, or anything else. The pump is replaced through the bottom of the machine, following a specific procedure:

Turn off the power to the appliance. Drain all liquid from the machine's tank and close the inlet valve;
Place additional material on the floor to protect it from moisture (a blanket, thick cardboard, etc. will do), place the device on its side;

Important! Position the washing machine so that the pump is on top. This will prevent any difficulties when removing the internal components.

remove the panel from the bottom of the machine by unscrewing the screws or loosening other fasteners;

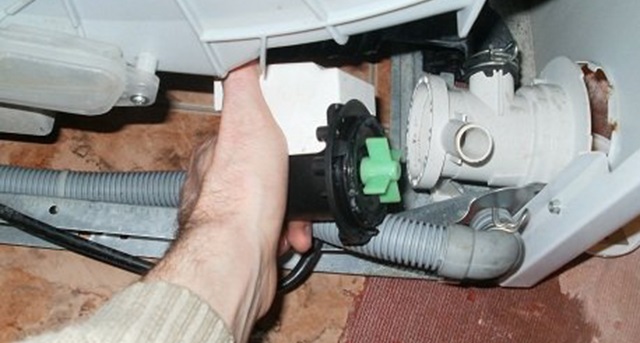

Disconnect the drain pump from its base. The pump mounting hardware is located near the drain valve;
Press the pump from the drain valve and gently pull it towards you;
Disconnect the power wires from the pump;
Drain any remaining fluid from the pump by removing the drain fitting. Check the volute for proper operation. If it is fully functional, reattach it along with the new pump. To remove the pump body, unscrew the bolts securing the pump, then remove the connecting elements.
Remove any accumulated dirt from the snail. The side that contacts the new pump must be perfectly clean;
insert the drain pump and snail into their base;
Install a new pump and connect it to the existing wiring.

Replacing the drain pump yourself is not difficult. The key is to understand the internal components of an Atlant automatic washing machine and have basic repair skills. If replacing parts of this machine raises a lot of questions and misunderstandings, it's best to contact a specialist for repairs. This will prevent more serious and expensive breakdowns.
