How to change the pump in an Electrolux washing machine?

The pump performs one of the most basic functions in a washing machine. After the machine finishes washing, it removes dirty, used water. Even a minor pump malfunction will immediately affect the quality of the wash—either liquid will remain in the drum or the laundry will be too wet. This problem can only be solved by replacing the pump in your Electrolux washing machine. Our article will help you remove the old drain pump and install a new one.

Think it over and prepare yourself

You should clearly decide whether you'll perform the repair yourself or hire a professional. A professional will perform the repair quickly and efficiently, but their services will come at a cost. If you decide to do the job yourself, you'll only spend money on the pump, but it will be quite time-consuming. Before replacing the pump, other faults must also be ruled out. Usually, when the pump breaks down, the washing machine:

• does not drain water at the end of the working cycle;
• makes a loud humming and noise when flushing;
• may stop in the middle of work without draining the water.

For repairs, you'll need: screwdrivers, pliers (for removing clamps), a power drill, and a multimeter. The multimeter is needed to check the pump's functionality. To do this, place the tester probes across the contacts and measure the resistance. If a fault is detected, the pump definitely needs to be replaced.

Please note: A new pump will cost you between $6.90 and $10.

Find a suitable location for disassembling the washing machine, as it will need to be disassembled, which can be difficult in tight spaces, especially in a bathroom. It's best to move the machine to a larger room. Beforehand, disconnect the washing machine from the water supply, sewer line, and electrical outlet.

Features of part replacement

Different Electrolux washing machine models vary in design, including pump location. Accordingly, this will determine the disassembly plan. The pump location can be found in the technical documentation. Let's look at the procedure if the pump is located on the rear panel:

• Place the drain hose in a large container (the water from the washing machine will drain on its own if there is no elbow);
• remove the back wall: unscrew the fastening screws holding it in place, remove the filler valve cover;
• remove the panel itself;
• remember or take a photo of the location of the elements.

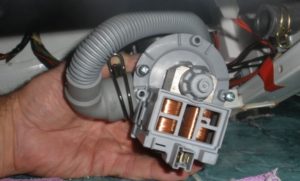

Before removing the pump, disconnect the wire and unscrew the pump housing screws (do this carefully to avoid damaging the element). Remove the housing along with the hoses; there's no need to remove them. After this, safely remove the pump, removing the fasteners first. Disconnect the pump from the housing by gently twisting it. Before replacing the pump, thoroughly clean the mounting surface to ensure the mechanism is securely in place.

When purchasing, be sure to take into account the technical characteristics and appearance of the old part (the location of the fasteners and protrusions must match).

Place the new pump on the snail housing and slide it to the left until it clicks into place. Now you can connect the washing machine to the power supply and run a test wash on the quick cycle without any laundry. It is important to ensure that there are no leaks and that water can flow and drain freely. If everything is okay, we assemble the equipment in reverse order.

If the pump is located at the bottom of the appliance, remove it through the bottom. First, use the drain hose, placed in a container or on the floor, to suck out any remaining liquid. Lay the machine horizontally on its left side. Unscrew the bottom panel, revealing the contents. The pump is located on the right; locate it and remove it from the unit as described above.

After cleaning the mounting area, insert the purchased part until it clicks into place. Then connect the power cord to the pump. Before testing the machine, be sure to screw the bottom back into place and return it to its original position. Only then can you start the wash cycle. If water fills and drains without issue, everything is correct.

Replacing the pump in Electrolux washing machines doesn't require much effort, so with proper care, the part can be replaced very quickly. However, if you have any doubts about your ability to perform this procedure yourself, it's best to consult a professional. And remember, the drain pump is a technically crucial component, so the manufacturer specifies a service life of at least 8-10 years for it. Whether it lasts this long depends largely on operating conditions.
