How to change the pump in an LG washing machine

After a long period of use, the drain pump of a washing machine may fail. Washing machines equipped with a self-diagnostic system will notify the user of this by displaying an error code on the screen. Replacing the drain pump is possible without the help of a technician. As for purchasing a replacement part, the pump can be purchased at specialized stores or ordered from the washing machine manufacturer.

Part Replacement Guide

LG automatic washing machines are characterized by a rather complex design. Repairing a washing machine at home requires an understanding of the machine's design, time, and a minimal set of tools. To change the pump in the machine LG, you won't have to disassemble the unit or remove the housing cover; all work will be carried out through the bottom of the machine. The procedure for reinstalling the drain pump on LG washing machines is as follows (repair of the LG WD-80130N model is described):

• drain the remaining water in the washing machine tank, close the inlet valve;
• Cover the floor with an additional covering (a blanket, a piece of cardboard, etc., to protect the flooring) and lay the machine on its side. It's important that the pump is on top, as this will make repairs easier.
• detach the lower false panel of the case, to do this either unfasten the fasteners or unscrew the mounting screws;

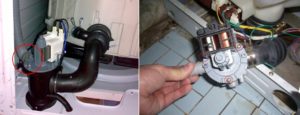

• Unscrew the drain pump from the base of the machine. The bolts holding the pump are located on the outside, near the drain valve;

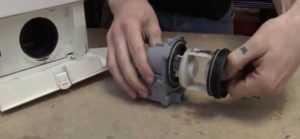

• start pressing on the pump from the drain valve side, pull the part towards you;
• Disconnect all power wires connected to the pump;

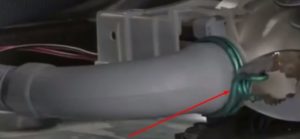

• remove water from the pump if there is any in the cavity, to do this, loosen the clamps holding the drainlad and take it off;
• If the sump doesn't need replacing, install it along with the drain pump you purchased. To remove the sump, unscrew the bolts holding the pump, then remove the screws connecting the pump and sump;
• Clean the removed snail of any accumulated debris. The part that will be in contact with the new pump should be free of even the slightest contamination;
• assemble the pump and the snail in reverse order;
• Install the pump back in its original location and connect all power wiring to it.

Replacing a drain pump isn't a major hassle. The procedure is fairly straightforward, and even a layperson can handle it. However, if you encounter any issues while doing it yourself, it's best to contact a professional to minimize the risk of increased repair costs.

Let's improve filtration

Recently, drainage filter elements have become increasingly popular among washing machine owners. The drainage filter is made in the form of a tube with numerous holes to increase the efficiency of water filtration.

Over time, the drain pipe can wear out. Don't rush into buying a new filter; experts recommend trying to clean the old filter first. To do this, you'll need a container, a rag, and a brush. Follow these steps:

• Run the drum rotation program for a couple of minutes, this will remove all the water from the tank;
• de-energize the washing machine, remove the back panel of the case;
• find the drainage tube and pull it towards you;
• drain the remaining water from the hose into a prepared container;
• carefully turn the tube from right to left and remove the drain filter;
• Using a brush, clean the surface of the filter element from the inside and outside, rinse the drainage under running water;
• Return the drain filter to its original position, secure the drain hose, put the rear panel of the housing back in place, and secure it with bolts.

When performing work, do not forget about safety precautions, be sure to disconnect the washing machine from the power supply.

Cleaning the drain filter element on an LG direct-drive washing machine is quite easy. So, instead of immediately looking for a new part in stores, try giving the drain a "second life."
