How to replace a Zanussi washing machine pump

In a Zanussi washing machine, the pump performs one of the most important functions. It drains water from the drum when the machine is finished. Therefore, the slightest malfunction will immediately affect the quality of your washing: water will remain in the machine after the cycle is finished, preventing you from removing laundry from the drum. In this case, it's important to know how to replace the pump in a Zanussi washing machine and restore excellent washing results. After reading our article, replacing the drain pump yourself won't seem like an impossible task.

Let's get ready for work

First, consider whether you're going to replace the pump in your Zanussi washing machine yourself or hire a professional. A professional will obviously perform the replacement quickly and efficiently, but their labor will cost a bit.

If you decide to replace it yourself, you will only spend money on a new pump, but the repair will take more time than if a professional did it.

To carry out the repair yourself, you will need the following tools: a screwdriver, a set of screwdrivers, pliers, and a multimeter in case you need to check the pump. For To do the work, you need to find a suitable place, since the washing machine will have to be disassembled, and it is unlikely that this will be possible to do at the installation site. Therefore, it is better to move the machine to the middle of the room or to some larger room (a garage, for example), after disconnecting it from the power supply, sewerage system, and water supply.

We will make a replacement

The location of the part varies on some Zanussi models. Therefore, repairs will vary slightly depending on the model. Let's look at what to do if your machine's pump is located on the rear wall.

1. First, drain the washing machine by placing the drain hose on the floor and placing a container underneath. This will allow all the water to drain out of the machine by gravity, without any additional effort on your part.

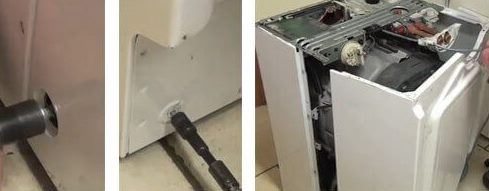

2. Once the job is done, you can remove the rear panel. To do this, unscrew the screws that hold it in place and also remove the intake valve cover to avoid any issues with removing the rear panel.
3. Now you can remove the wall itself.

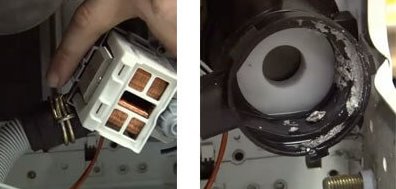

4. Now you can access the contents of your device without any problems. Before removing the pump, perform a few preparatory steps. Carefully disconnect the pump's power cord and remove the entire volute (be careful not to damage it). When removing the volute, do not remove the hoses; this is not necessary for further work.
5. Next, you can remove the pump itself by unscrewing the screws that hold it in place. Be sure to note the location of the part! Also, before installing the new pump, clean its mounting surface. The less dirt it contains, the more securely the new unit will fit.

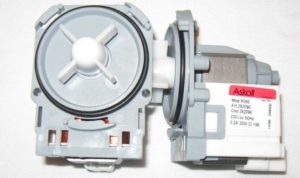

6. It's time to install the new part. To do this, place it on the special runners and slide it into the unit until it clicks into place.
7. Now connect the machine to the power supply and water supply and perform a test run, which doesn't have to be long. Your goal is to ensure that water flows into and out of the drum without issue. If all goes well, you've done everything correctly.
8. Once you are sure that everything is working, you can install the back wall, mount the exhaust valve cover and put the washing machine back in place.

Some Zanussi models have the pump built into the bottom of the washing machine, so you'll have to remove it through the bottom. Let's figure out how to do this:

1. First, again using the drain hose placed on the floor, pump out the water from the unit.
2. Place the washing machine horizontally, with the drum facing up, so that you can easily work with the bottom of the machine.
3. Unscrew the bottom wall to access the machine's contents. Locate and remove the pump on the right side of the machine, then remove it from the machine.
4. Now take the new part. Insert the new pump into the old one's place and push it in slightly until it clicks into place (remember to keep the pump seat as clean as possible). When everything is ready, connect the power cord to the pump.
5. To test, screw the bottom cover back on and place the machine back in the upright position. Once everything is ready, run a test wash.
6. If water intake and pumping out are carried out without problems, then you have done everything correctly.

In fact, replacing a Zanussi washing machine pump doesn't require a huge amount of time or effort, so with due care and attention, you can do the repair yourself. However, if you're unsure of your abilities, it's best to consult a professional.
